Xerox WorkCentre 5022 Service Manual

06/2014
5-46
WC 5022/5024
PL 18.3
Version 1.0
Parts List

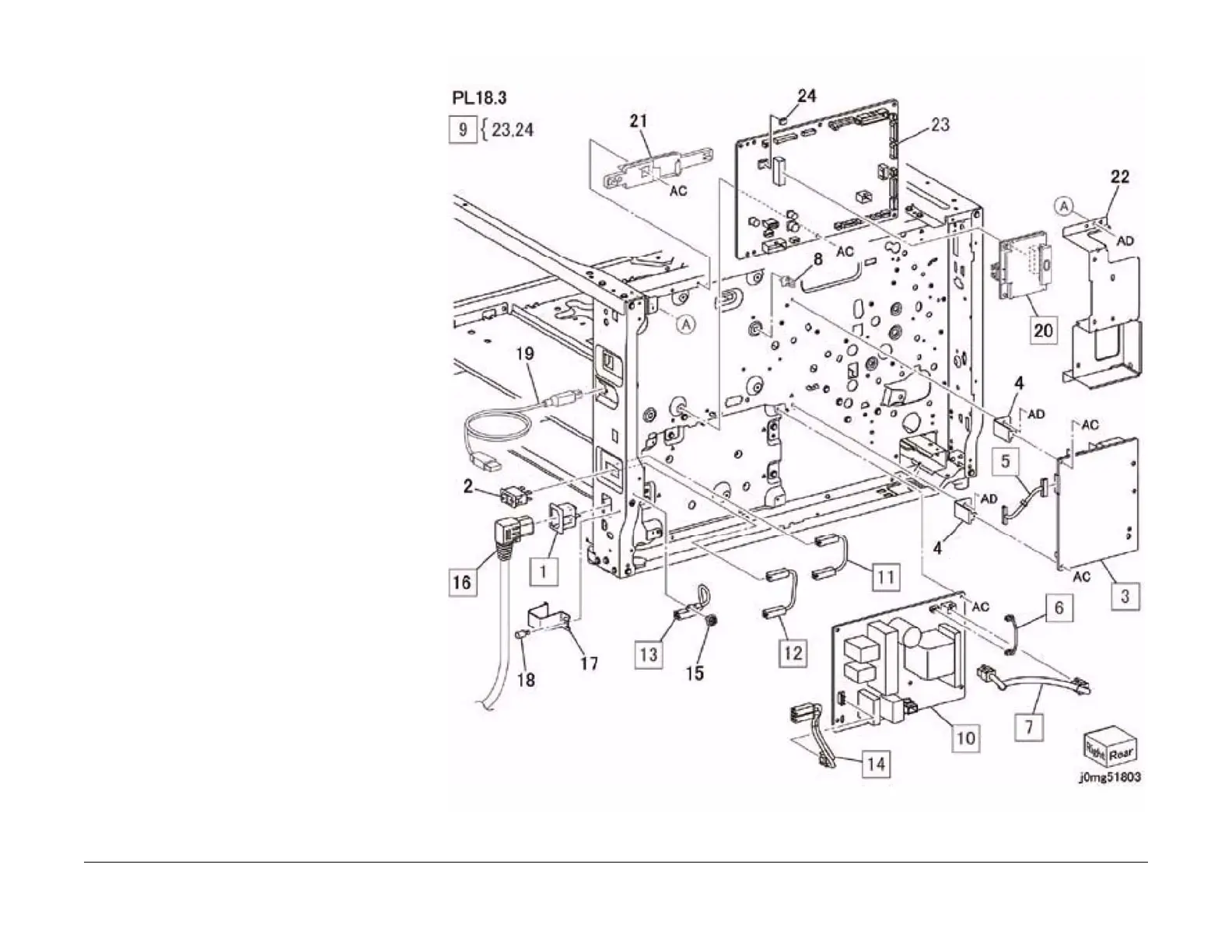

PL 18.3 Electrical
Item Part Description
1 913W02321 AC Inlet
2 910W00703 Main Power Switch
3 105E21351 HVPS (REP 18.1.2)
4 – HVPS Bracket
5 952K01141 HVPS Wire Harness
6 952K01190 LVPS Wire Harness (Signal)
7 952K10740 LVPS Wire Harness (Power)
8 120E34060 PWB Support
9 960K76830 ESS/MCU PWB Assembly (Item
23,24) (REP 18.3.2)
10 105E20482 220V-LVPS (REP 18.1.3)
– 105E21071 120V-LVPS (REP 18.1.3)
11 117K47570 220V Inlet Wire Harness (HOT)
– 117K47810 120V- Inlet Wire Harness
12 117K47580 220V Inlet Wire Harness (NUT)
– 117K47820 120V- Inlet Wire Harness
13 117K47611 220V Ground Wire
– 117K47830 120V- Ground Wire
14 952K01230 220V Power Switch Wire Harness
– 962K69080 120V Power Switch Wire Harness
15 – Screw
16 – 220V Power Cord, 120V Power
Cord
17 – Stopper Bracket
18 – Thumbscrew
19 – USB Cable
20 960K77160 Net I/F PWB (REP 18.3.1)
21 – IIT Cable Spacer
22 – Bracket
23 – ESS/MCU PWB (P/O Item 9)
24 – EEP ROM (P/O Item 9)

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
