Xerox WorkCentre 5022 Service Manual

06/2014
5-54
WC 5022/5024
PL 56.4
Version 1.0
Parts List

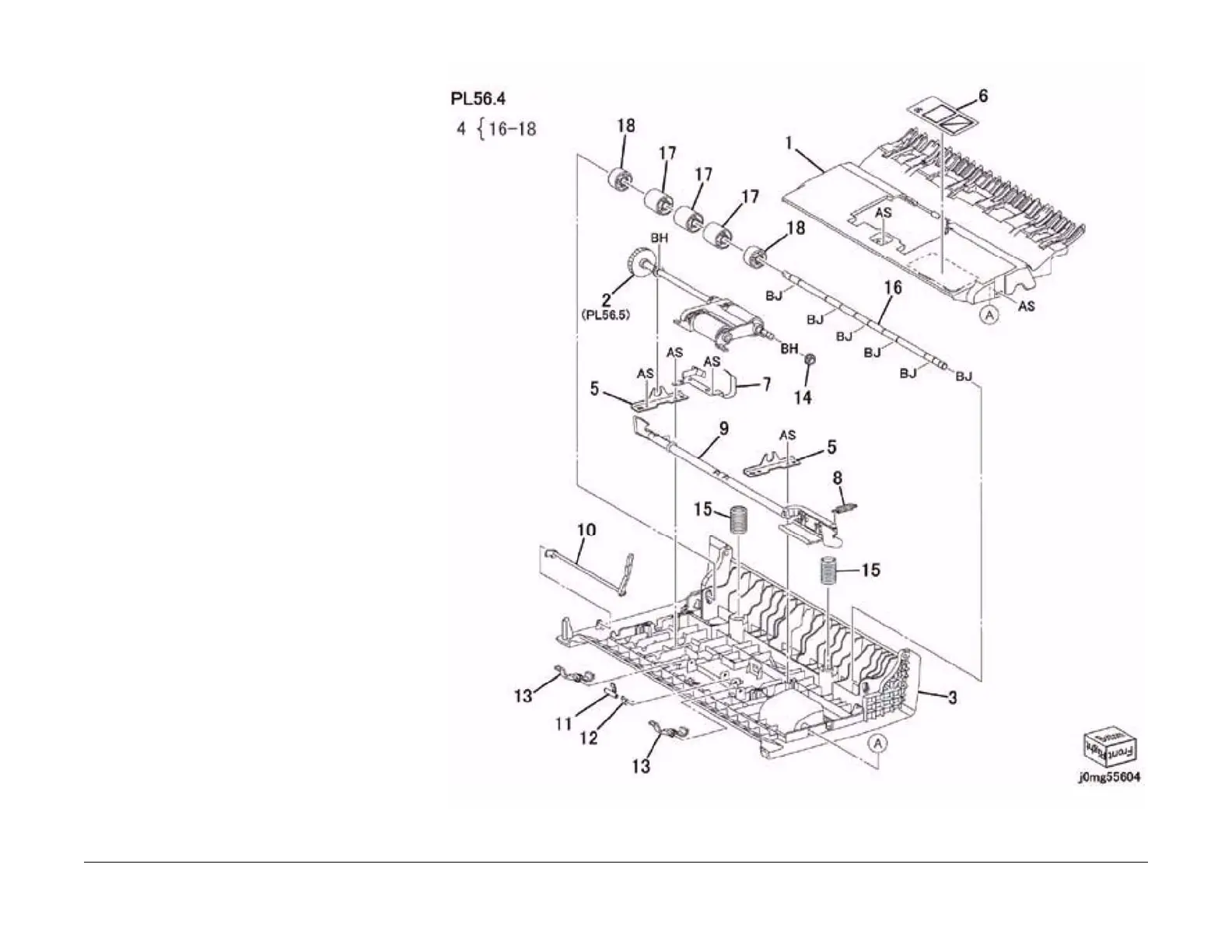

PL 56.4 Upper Feeder
Item Part Description
1 054E50182 Upper Feeder Chute
2 059K75770 Feed Roll Nudger Roll Assembly
(PL 56.5)
3 – Upper Feeder Cover
4 059K75760 Takeaway Pinch Roll Assembly
(Item 16-18)
5 – Bracket
6 897E24001 Jam Label
7 815E76300 Ground Plate
8 899E01531 Spring
9 011K04260 Handle Lever
10 120E34244 Actuator (Document Set)
11 120E34250 Stopper Actuator
12 899E01541 Spring
13 012E18310 Set Link
14 413W85459 Bearing
15 899E01551 Spring
16 – Shaft (P/O Item 4)
17 – Pinch Roll (P/O Item 4)
18 – Pinch Roll (P/O Item 4)

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
