Xerox WorkCentre 5022 Service Manual

06/2014
5-19
WC 5022/5024
PL 8.2
Parts List
Version 1.0

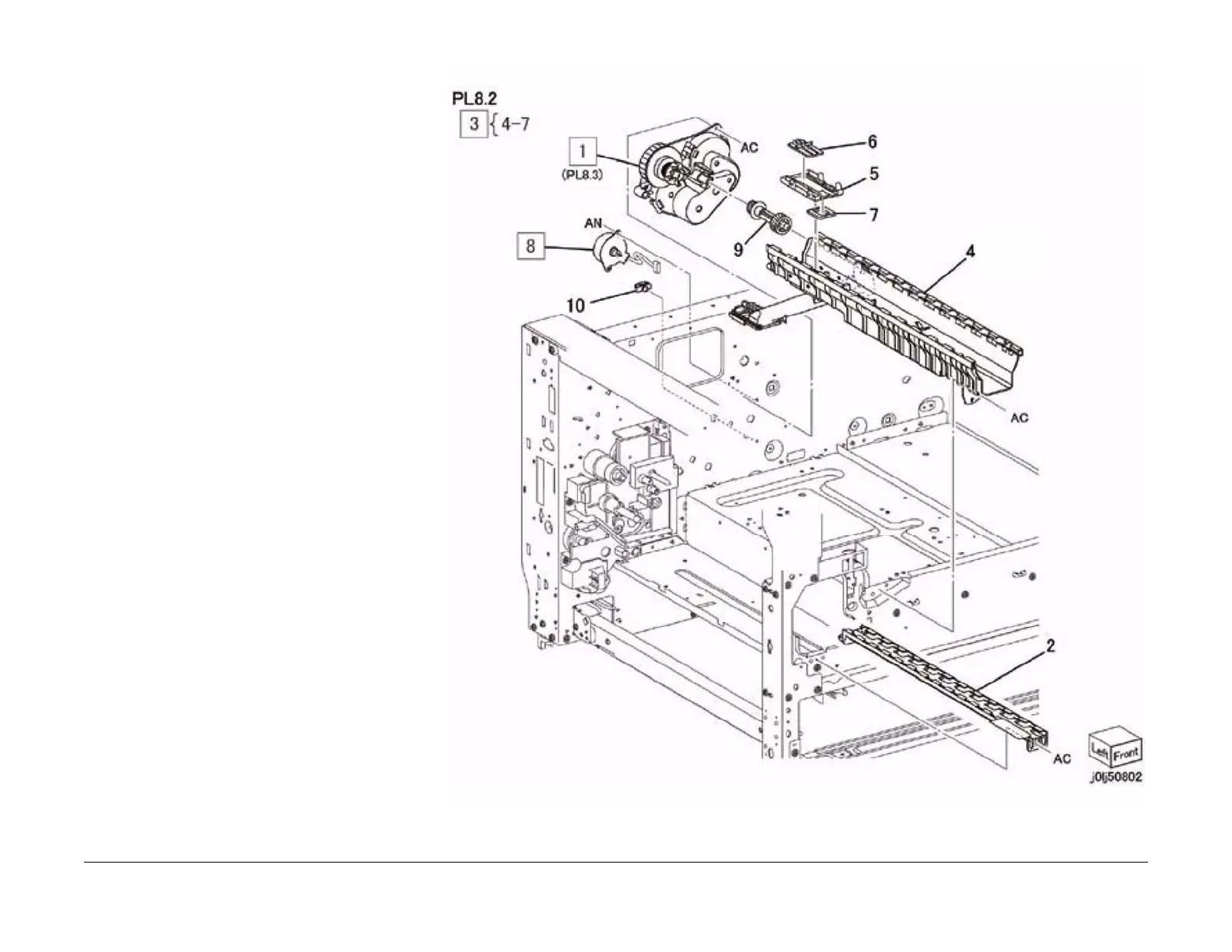

PL 8.2 Toner System
Item Part Description
1 007K18750 Dispense Drive (PL 8.3) (REP
8.2.2)
2 032K08100 Drum Cartridge Guide
3 094K93270 Cartridge Guide (Item 4-7) (REP
8.2.1)
4 032K08082 Cartridge Guide
5 032E35503 Shutter Guide
6 055E58451 Dispenser Shutter
7 – Guide Seal (P/O Item 3)
8 127K66870 Toner Dispense Motor
9 807E39410 Gear (21/21T)
10 – Clamp

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
