06/2014
5-60
WC 5022/5024
PL 56.10
Version 1.0
Parts List

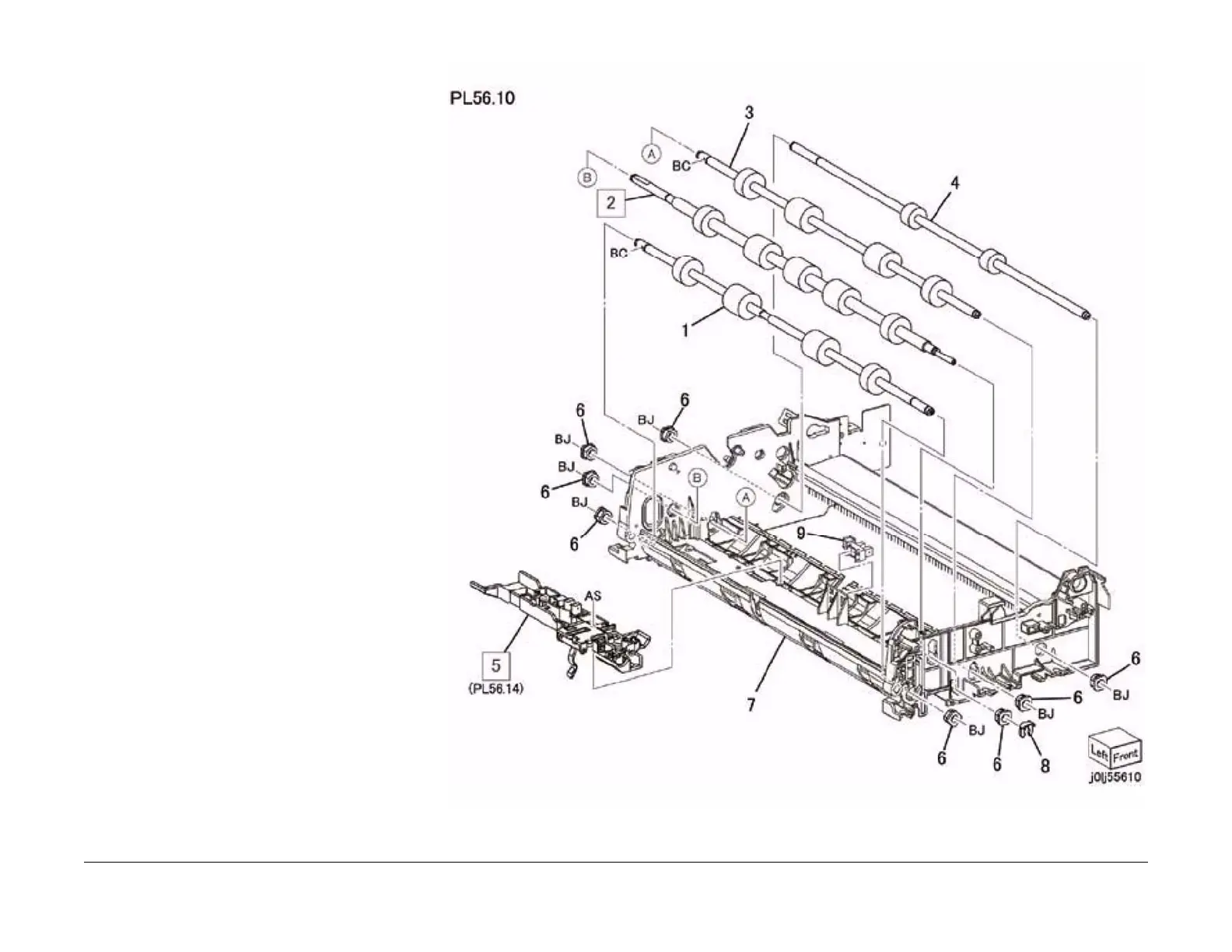

PL 56.10 DADF Roll,Sensor Bracket
Item Part Description
1 059K75780 DADF Registration Roll
2 059K75790 DADF Takeaway Roll (REP
56.10.1)
3 059K75800 DADF Out Roll
4 059K75810 DADF Exit Roll
5 049K17820 Sensor Bracket (PL 56.14) (REP
56.10.2)
6 413W11660 Bearing
7 DADF Feeder Frame
8– KL-Clip
9 930W00121 DADF Invert Sensor
