Xerox WorkCentre 5022 Service Manual

06/2014
4-17
WC 5022/5024
Repairs and Asdjustments
Version 1.0
REP 2.1.1 ROS Assembly
Parts List on PL 2.1
Removal
WARNING
When turning OFF the power switch, check that the 'Data' lamp is OFF and that there is
no Job in progress.
Turn OFF the power switch and make sure that the screen display turns OFF.
Check that the power switch is OFF and unplug the power plug.
1. Remove the Drum Cartridge. (REP 8.1.1)
2. Remove the Toner Cartridge. (PL 8.1)
3. Remove the Front Cover. (REP 19.1.1)
4. Remove the Top Cover. (REP 19.1.2)

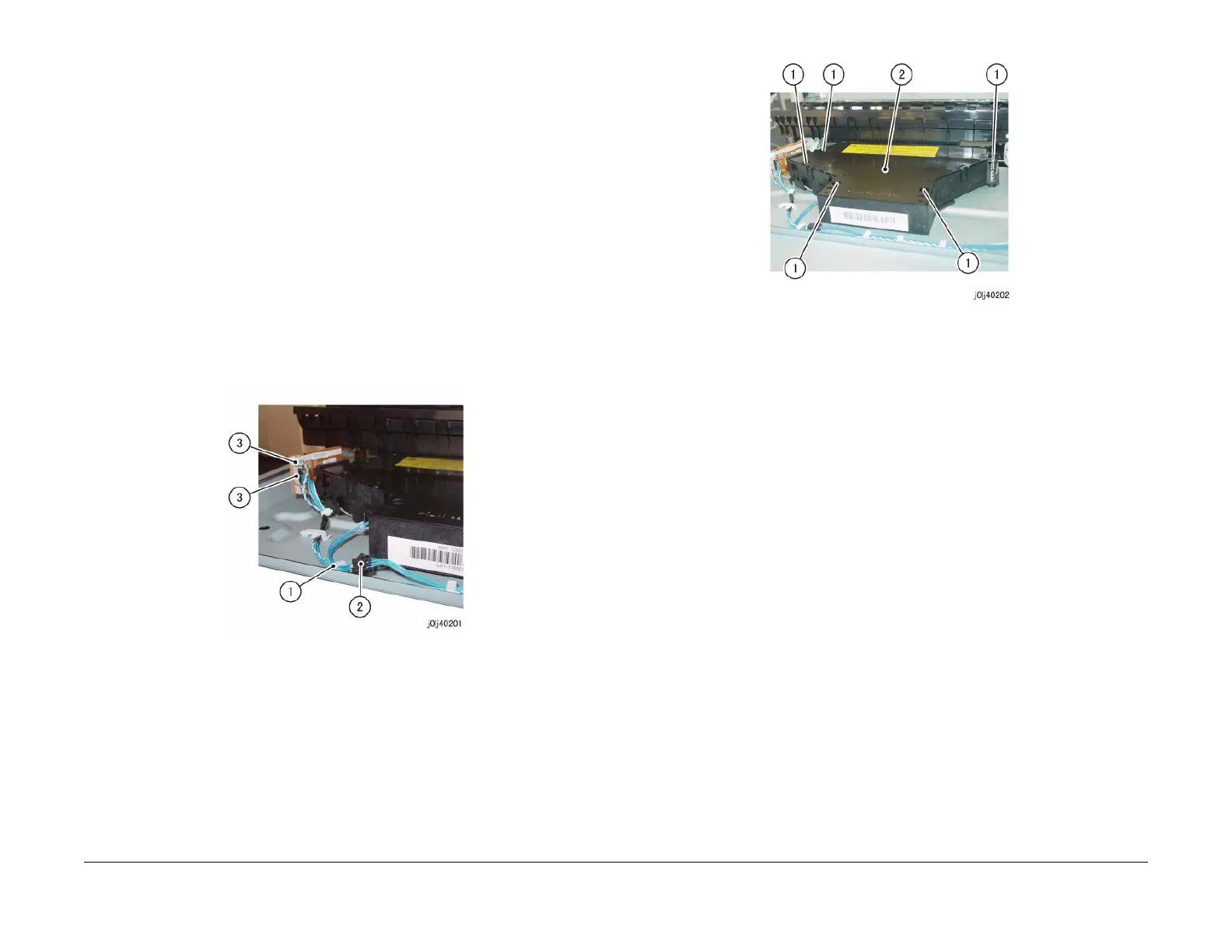

5. Disconnect the connector of the ROS Assembly. (Figure 1)
a. Release the wire harness from the clamp.
b. Disconnect the connector.
c. Disconnect the connector (x2).
Figure 1 j0lj40201
6. Remove the ROS Assembly. (Figure 2)
a. Remove the screw (x5).
b. Remove the ROS Assembly.
Figure 2 j0lj40202
Replacement
WARNING
When servicing an installed ROS Assembly with the power turned ON, read the Warning
Label pasted on the top of the ROS Assembly carefully before proceeding.
1. To install, carry out the removal steps in reverse order.

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
