Xerox WorkCentre 5022 Service Manual

06/2014
4-43
WC 5022/5024
Repairs and Asdjustments
Version 1.0

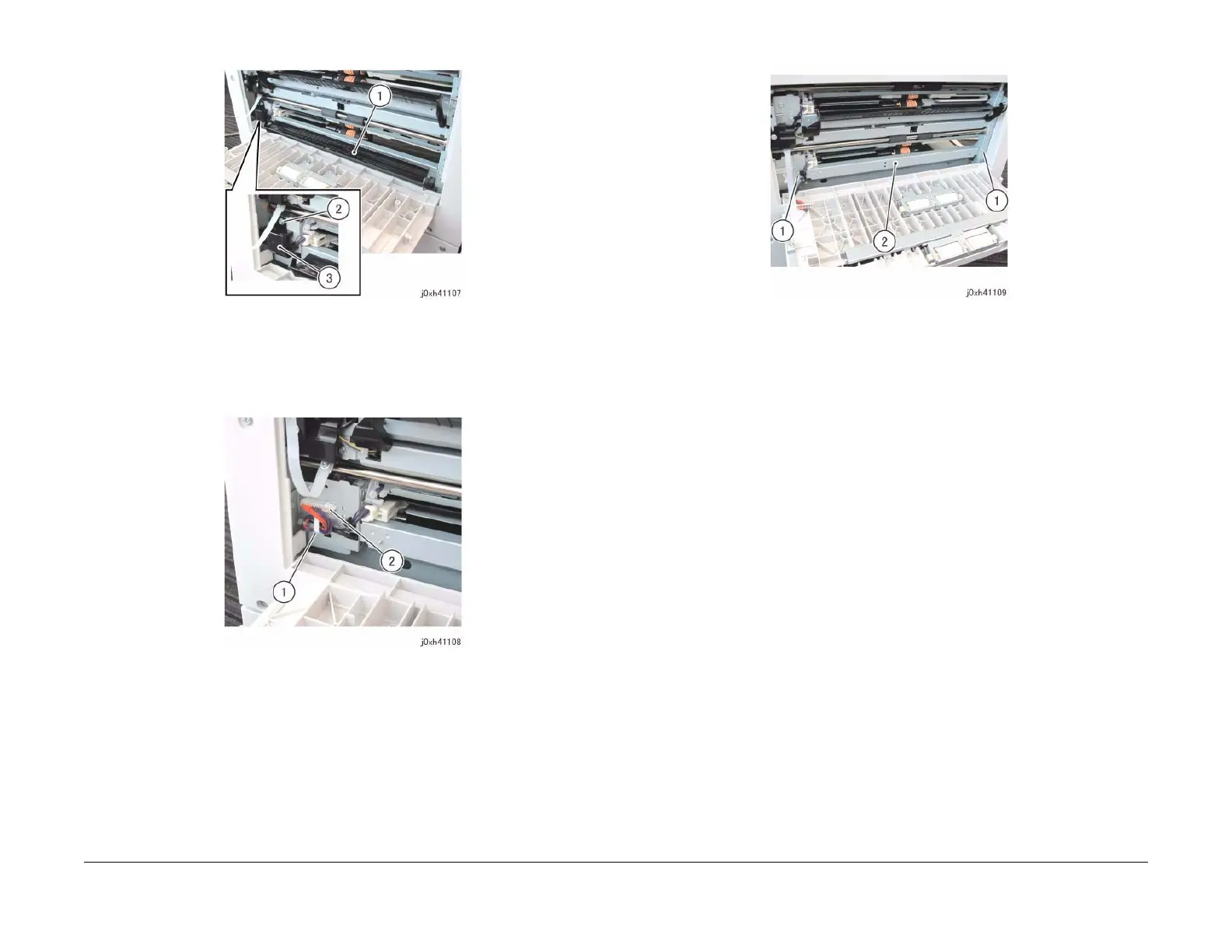

Figure 2 j0xh41107
5. Disconnect the connector. (Figure 3)
a. Release the wire harness from the clamp.
b. Disconnect the connector.
Figure 3 j0xh41108
6. Remove the Tray 4 Feeder. (Figure 4)
a. Remove the screw (x2).
b. Remove the Tray 4 Feeder.
Figure 4 j0xh41109
Replacement
1. To install, carry out the removal steps in reverse order.
2. After a replacement, enter the CE Mode and use [Initialize HFSI Counter] to clear the
HFSI counter.
• 'Chain Link: 950-809'
Refer to [6.5.2.7 HFSI Counter Clear / Initialize].
