Xerox WorkCentre 5022 Service Manual

06/2014
4-67
WC 5022/5024
Repairs and Asdjustments
Version 1.0

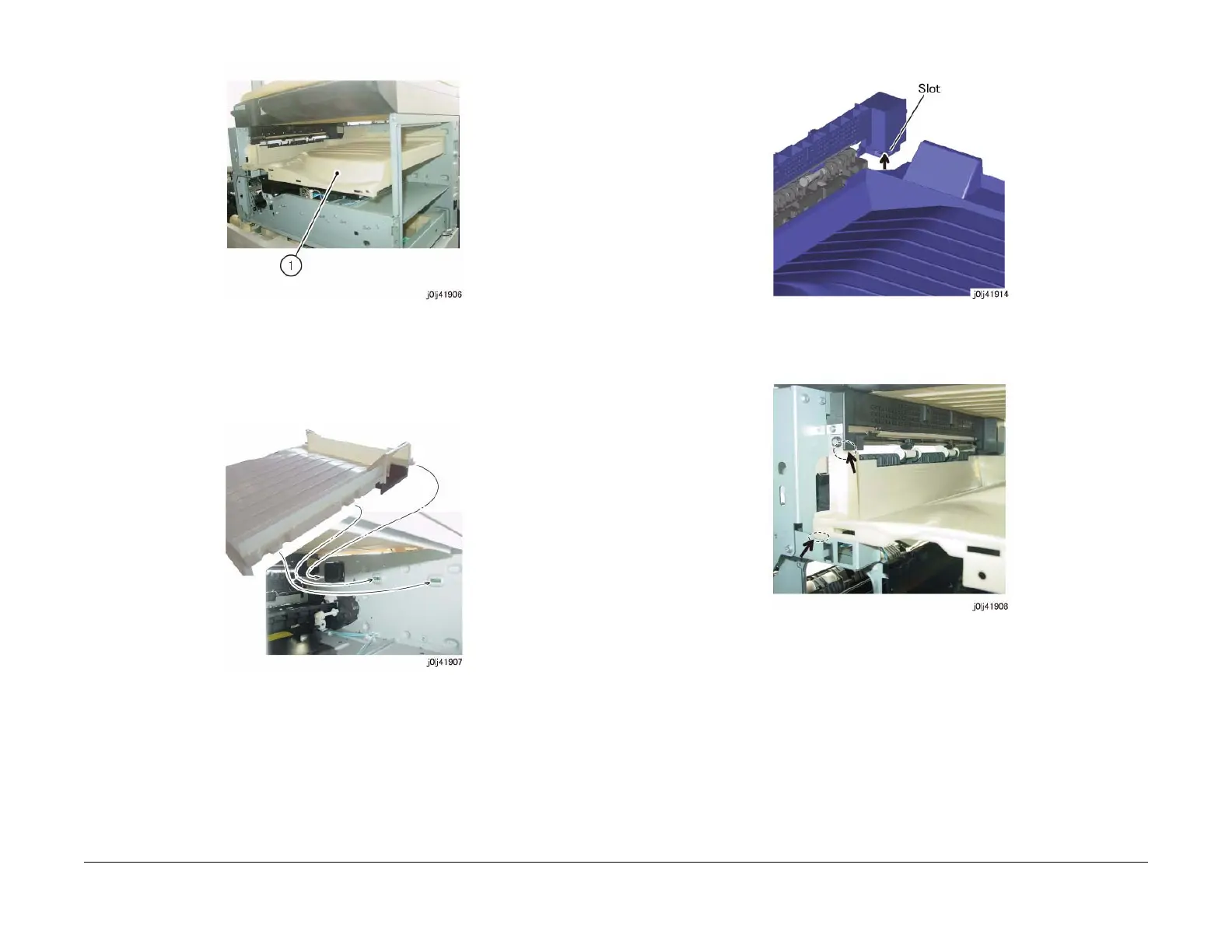

Figure 2 j0lj41906
Replacement
1. To install, carry out the removal steps in reverse order.
2. When installing the Top Cover, insert the Tab (x3) of the Top Cover to the Tab Slot (x3) of
the Frame. (Figure 3)
Figure 3 j0lj41907
3. When installing the Top Cover, insert the portion of the Top Cover that is shown in the fig-
ure into the Slot of the Exit Cover. (Figure 4)
Figure 4 j0lj41914
4. Install the Top Cover with its front left side positioned as shown in the figure. (Figure 5)
Figure 5 j0lj41908
5. When installing the Right Cover, insert the hook (x2) of the Right Cover to the hole (x2) of
the Frame. (Figure 6)

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
