Xerox WorkCentre 5022 Service Manual

06/2014
4-11
WC 5022/5024
Repairs and Asdjustments
Version 1.0

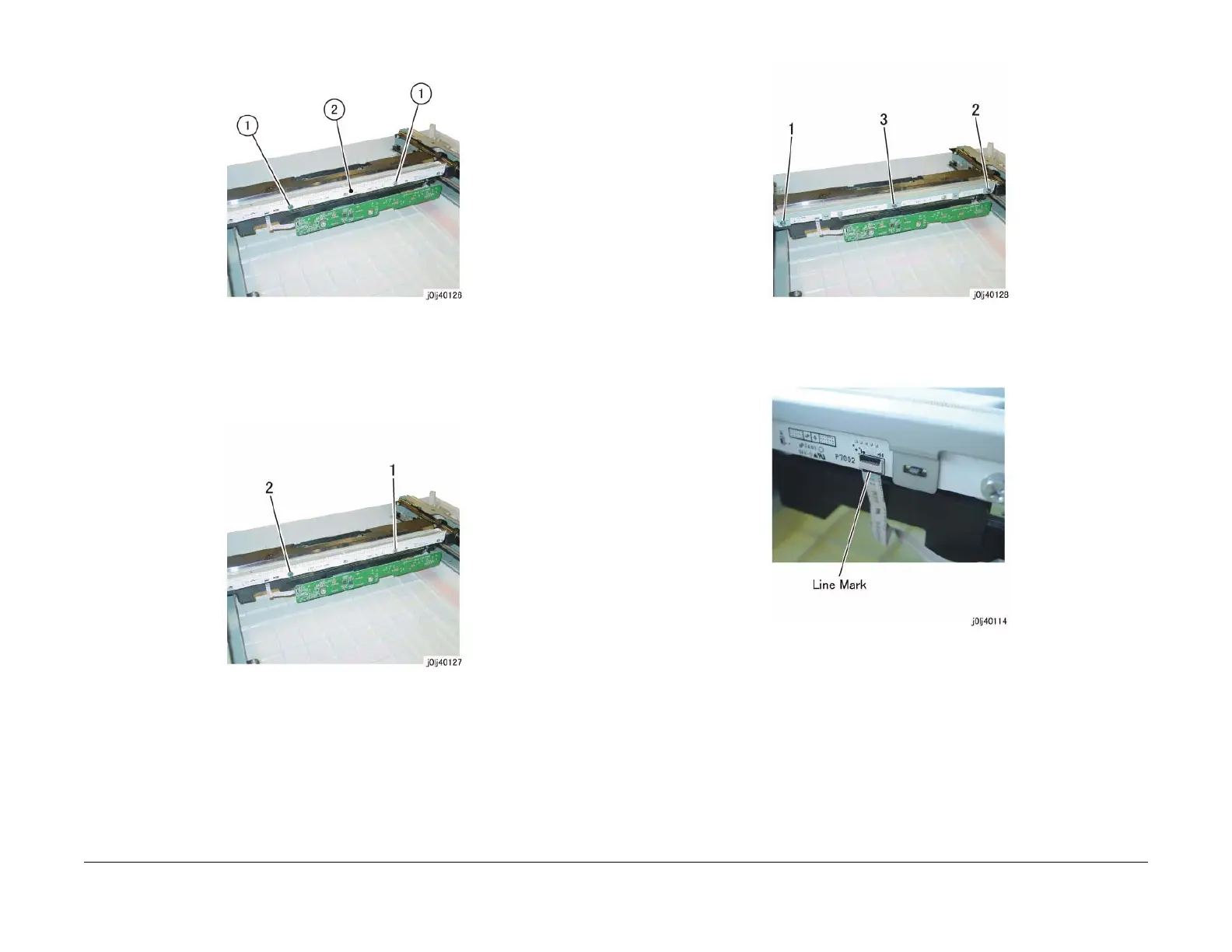

Figure 4 j0lj40126
Replacement
1. To install, carry out the removal steps in reverse order.
2. When installing the LEB Lamp PWB, tighten the screw of the LED Lamp PWB in the order
of 1 then 2. (Figure 5)
Figure 5 j0lj40127
3. When installing the LEB Bracket, tighten the screw of the LED Bracket in the order of 1 to
3. (Figure 6)
Figure 6 j0lj40128
4. When connecting the connector of the LED Housing, insert it into the Connector Housing
until the Line Mark of the LED Cable is at the position indicated in the figure. (Figure 7)
Figure 7 j0lj40114
5. After a replacement, enter the Diag Mode and use [Initialize HFSI Counter] to clear the
HFSI counter.
"Chain Link : 956-804"
Refer to [6.5.2.7 HFSI Counter Clear / Initialize].

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
