Xerox WorkCentre 5022 Service Manual

06/2014
4-13
WC 5022/5024
Repairs and Asdjustments
Version 1.0

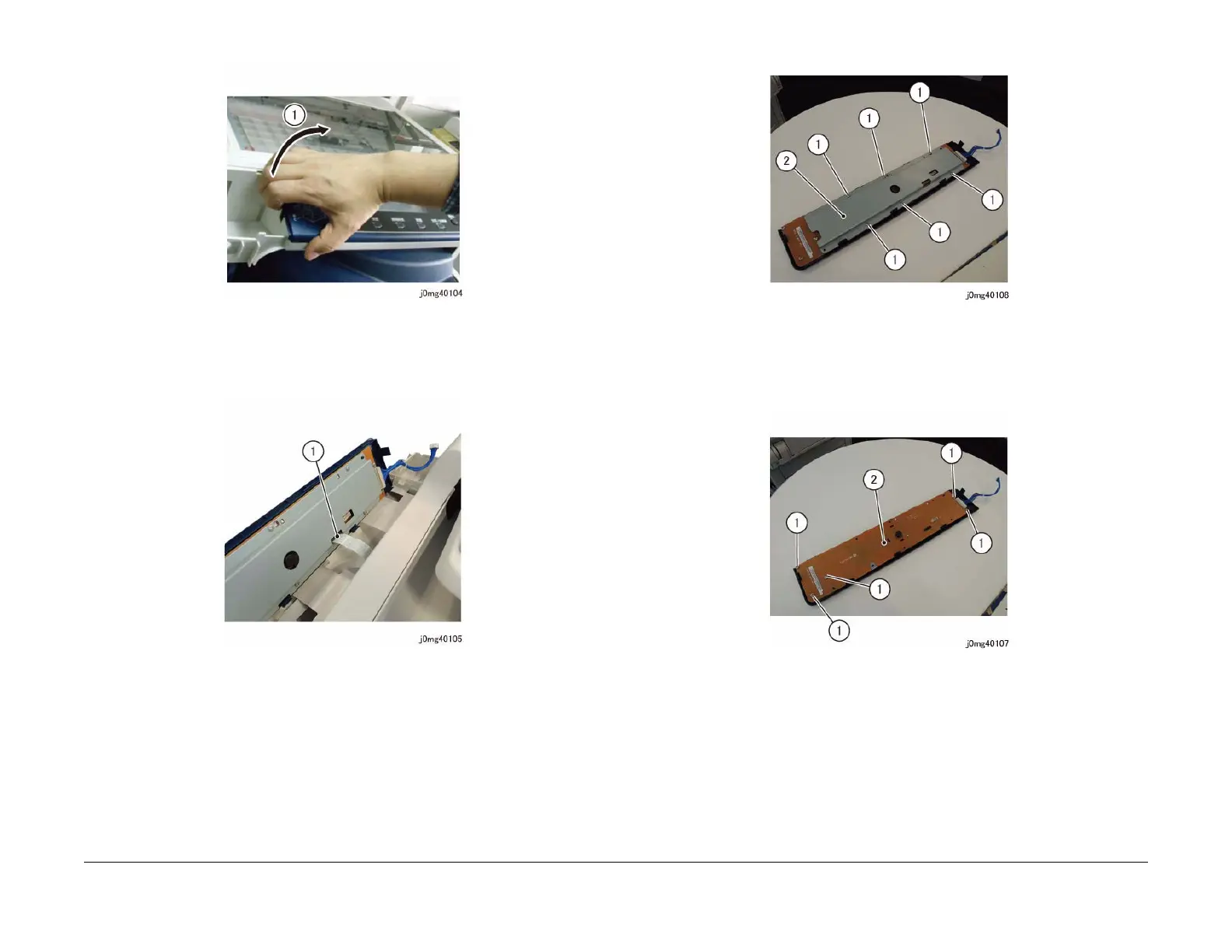

Figure 4 j0mg40104
6. Pull out and remove the UI Cable from the Connector Housing and disconnect the con-
nector. (Figure 5)
a. Pull out and remove the UI Cable from the Connector Housing.
Figure 5 j0mg40105
7. Remove the UI Bracket. (Figure 6)
a. Remove the Tapping Screw (x6).
b. Remove the UI Bracket.
Figure 6 j0mg40108
8. Remove the UI PWB. (Figure 7)
a. Remove the Tapping Screw (x5).
b. Remove the UI PWB.
Figure 7 j0mg40107
9. Move the LCD Display. (Figure 8)
a. Release the hook (x4).
b. Release the tab of the Ground Plate.
c. Move the LCD Display in the direction of the arrow.

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
