Xerox WorkCentre 5022 Service Manual

06/2014
4-14
WC 5022/5024
Version 1.0
Repairs and Asdjustments

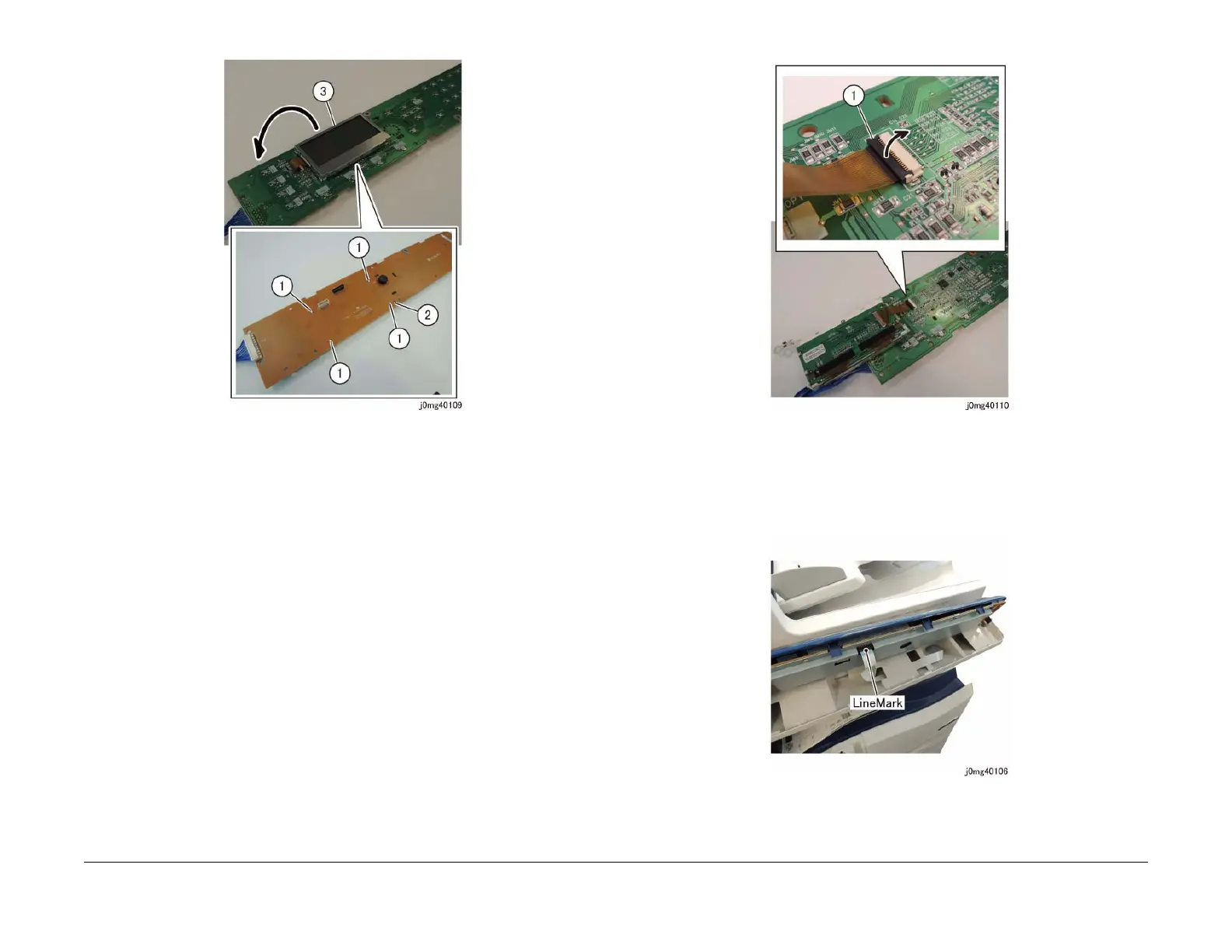

Figure 8 j0mg40109
10. Disconnect the connector of the LCD Display. (Figure 9)
a. Open the block of the Connector Housing in the direction of the arrow and discon-
nect the Flat Cable.
Figure 9 j0mg40110
Replacement
1. To install, carry out the removal steps in reverse order.
2. When connecting the UI Cable, insert it into the Connector Housing until the Line Mark of
the UI Cable is at the position indicated in the figure. (Figure 10)
Figure 10 j0mg40106
3. [One Touch Panel]: When installing the Control Panel, pull out the wire harness of the
One Touch Panel through the cutout of IIT Front Cover. (Figure 11)

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
