Xerox WorkCentre 5022 Service Manual

06/2014
4-15
WC 5022/5024
Repairs and Asdjustments
Version 1.0

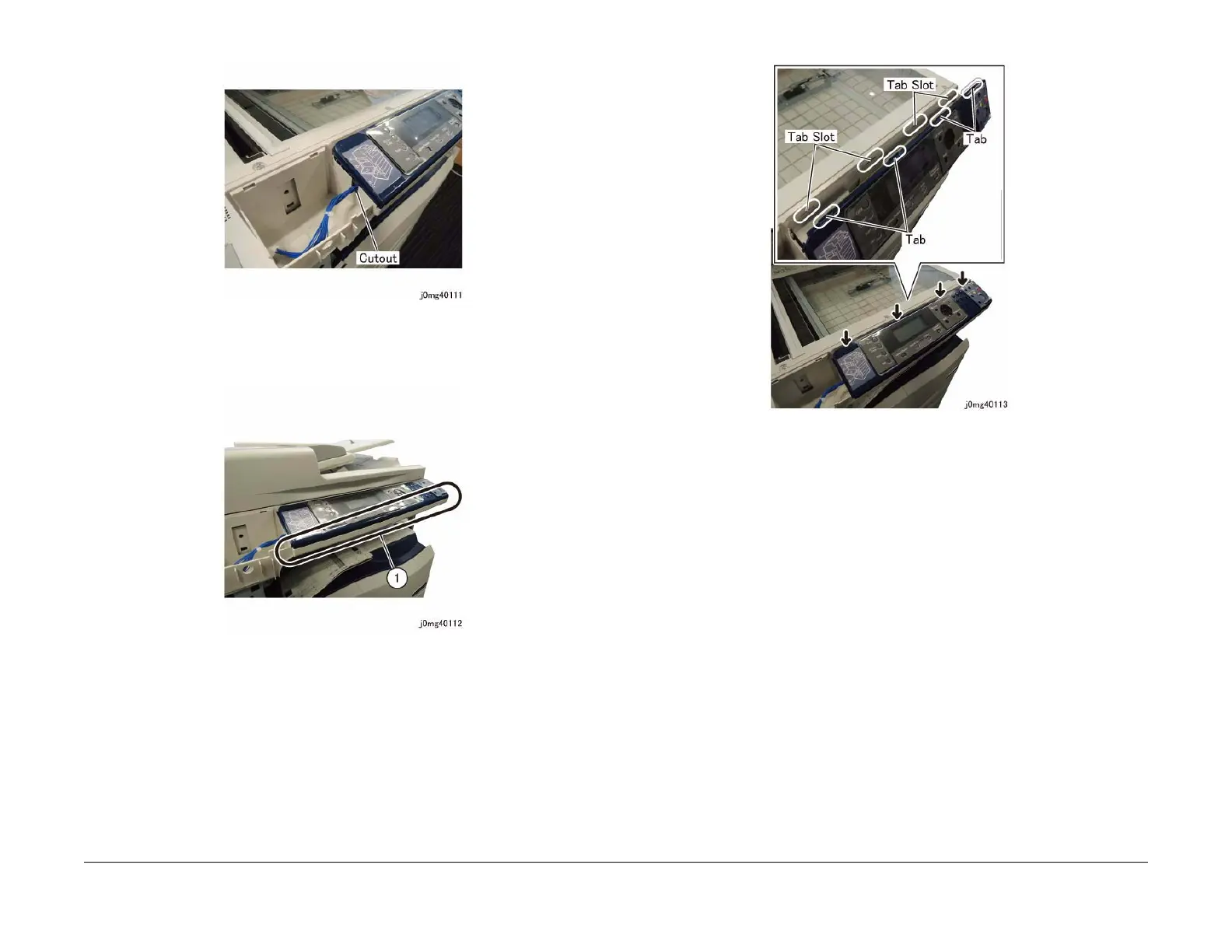

Figure 11 j0mg40111
4. Install the Control Panel by the following procedure. (Figure 12) (Figure 13)
a. At the front, align the Control Panel to the surface IIT Front Cover.
Figure 12 j0mg40112
b. At the rear, press the tab (x4) of the Control Panel at the indicated positions to
secure the Control Panel.
Figure 13 j0mg40113

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
