Xerox WorkCentre 5022 Service Manual

06/2014
4-58
WC 5022/5024
Version 1.0
Repairs and Asdjustments

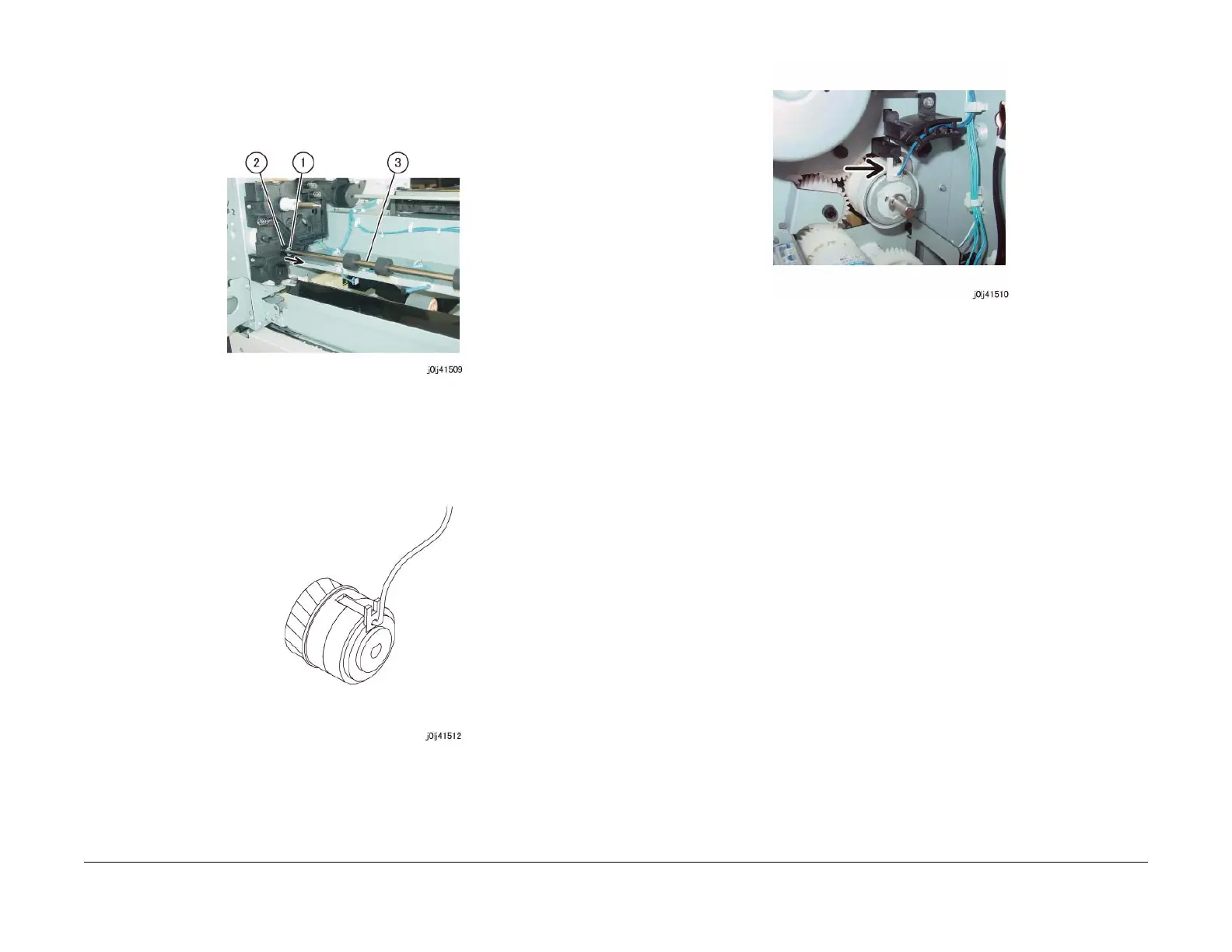

8. Remove the Registration Roll. (Figure 2)
a. Remove the E-Clip.
b. Move the bearing in the direction of the arrow.
c. Remove the Registration Roll.
Figure 2 j0lj41509
Replacement
1. To install, carry out the removal steps in reverse order.
2. When installing the Registration Clutch, align the Tab (x2, top and bottom) of the Registra-
tion Clutch to the Cutout (x2, top and bottom) of the gear. (Figure 3)
Figure 3 j0lj41512
3. When installing the Registration Clutch, align the Cutout of the Registration Clutch to the
Tab. (Figure 4)
Figure 4 j0lj41510

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
