Xerox WorkCentre 5022 Service Manual

06/2014
4-9
WC 5022/5024
Repairs and Asdjustments
Version 1.0

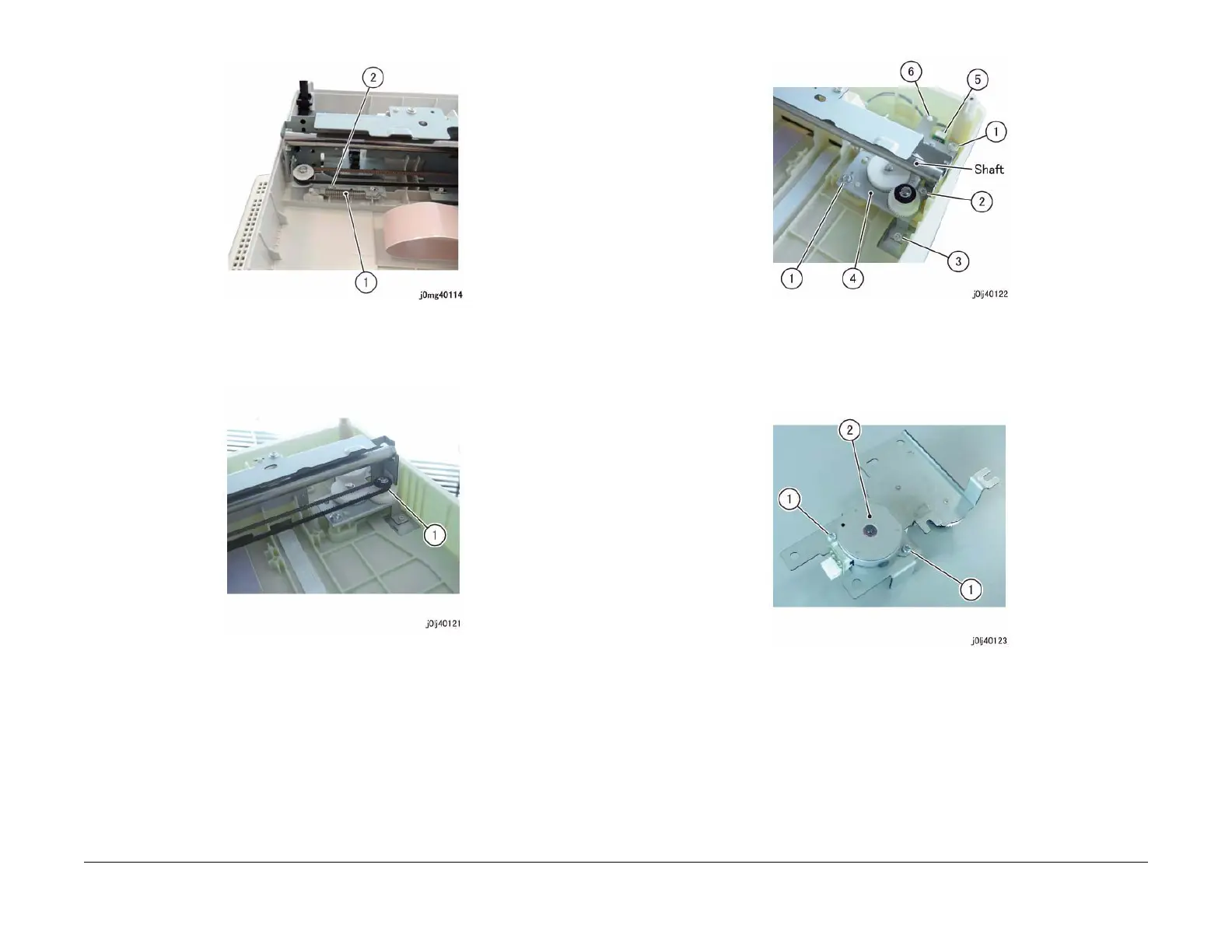

Figure 2 j0mg40114
5. Remove the IIT Carriage Belt from the pulley. (Figure 3)
a. Remove the IIT Carriage Belt from the pulley.
Figure 3 j0lj40121
6. Remove the Carriage Drive and Motor. (Figure 4)
a. Remove the Tapping Screw (x2). (Separate Display - 1)
b. The Shaft is shifted and loosen the screw. (Separate Display - 2)
c. Remove the screw. (Separate Display - 2)
d. Remove the Carriage Drive and Motor.
e. Disconnect the connector.
f. Remove the cable band.
Figure 4 j0lj40122
7. Remove the Carriage Motor. (Figure 5)
a. Remove the screw (x2).
b. Remove the Carriage Motor.
Figure 5 j0lj40123
Replacement
1. To install, carry out the removal steps in reverse order.
2. After a replacement, enter the Diag Mode and use [Initialize HFSI Counter] to clear the
HFSI counter.
"Chain Link : 956-802"
Refer to [6.5.2.7 HFSI Counter Clear / Initialize].

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
