Xerox WorkCentre 5022 Service Manual

06/2014
4-56
WC 5022/5024
Version 1.0
Repairs and Asdjustments
Figure 4 j0lj41503

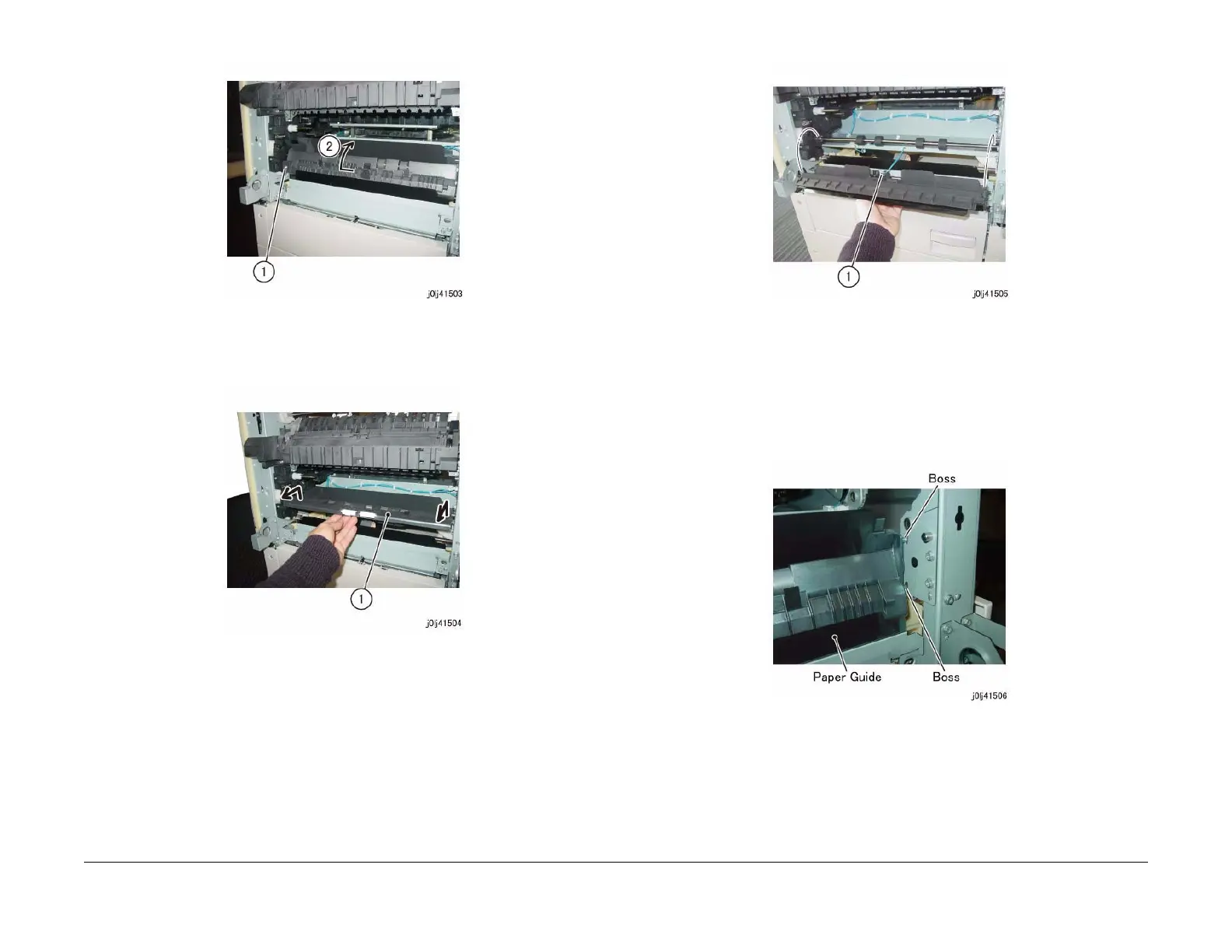

9. Remove the Registration Chute from the bearing (x2) of the Registration Roll. (Figure 5)
a. Remove the Registration Chute.
Figure 5 j0lj41504
10. Disconnect the connector and remove the Registration Chute. (Figure 6)
a. Disconnect the connector and remove the Registration Chute.
Figure 6 j0lj41505
Replacement
1. To install, carry out the removal steps in reverse order.
2. When installing the Registration Chute, insert the boss (x2) of the Registration Chute into
the holes for the boss. (Figure 7)
3. When installing the Registration Chute, install the Registration Chute to the inner side of
the Paper Guide. (Figure 7)
Figure 7 j0lj41506
4. When installing the Drum Cartridge Guide, insert the boss (x2) of the Drum Cartridge
Guide into the holes for the boss. (Figure 8)

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
