Xerox WorkCentre 5022 Service Manual

06/2014
4-62
WC 5022/5024
Version 1.0
Repairs and Asdjustments

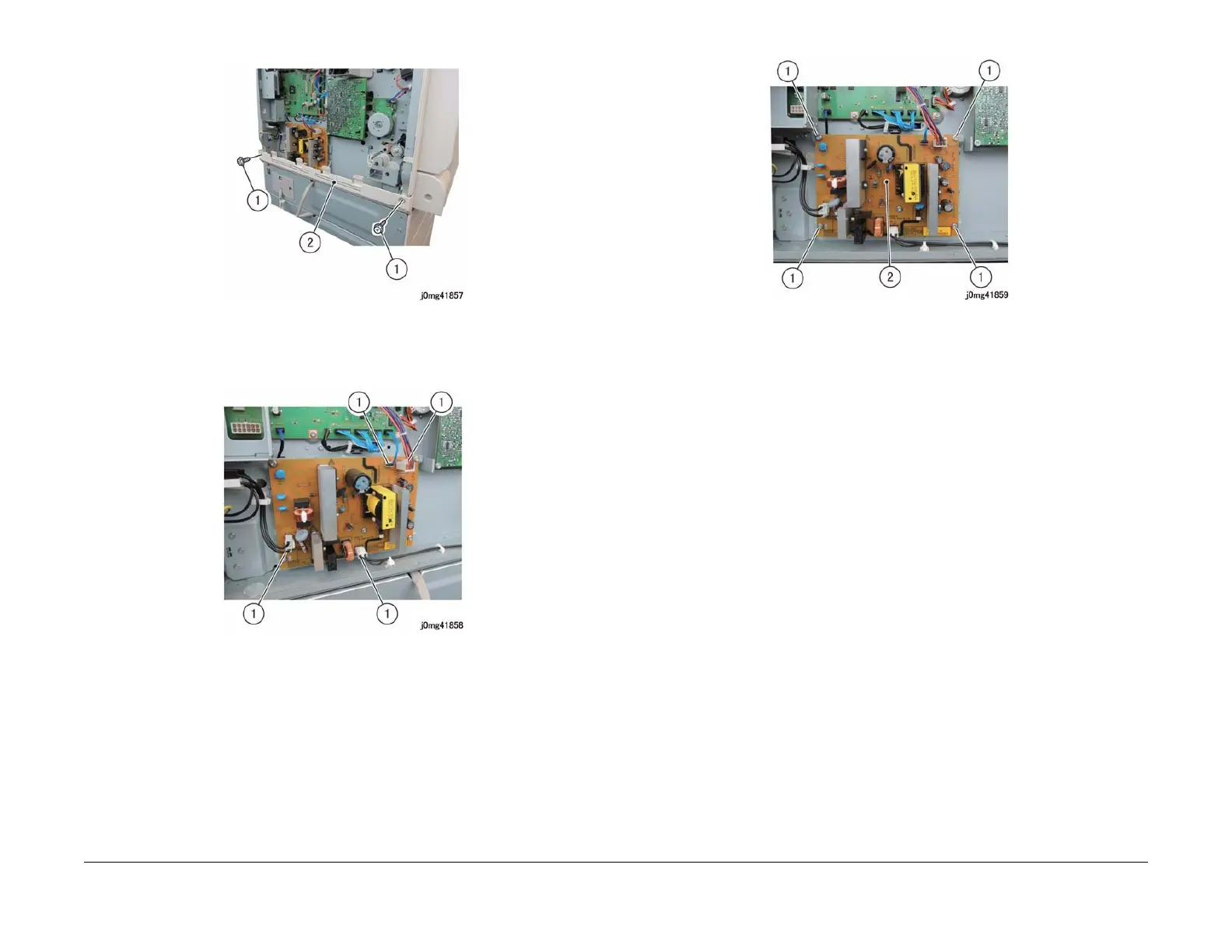

Figure 2 j0mg41857
4. Disconnect the connector of the LVPS.
a. Disconnect the connector (x4).
Figure 3 j0mg41858
5. Remove the LVPS.
a. Remove the screw (x5).
b. Remove LVPS.
Figure 4 j0mg41859
Replacement
1. To install, carry out the removal steps in reverse order.

Xerox WorkCentre 5022 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Connectivity	USB 2.0
Functions	Print, Copy, Scan
Duplex Printing	Manual
Paper Sizes	A3, A4, A5, B4, B5
Memory (Standard)	128 MB
Print Technology	Laser
Print Speed	Up to 22 ppm
Print Resolution	600 x 600 dpi
Copy Speed	Up to 22 cpm
Operating System Compatibility	Windows, Mac
First Page Out Time (Copy)	8 seconds
