7-11
WC 5022/5024
7.1.2 Plug/Jack Location
Wiring Data
Version 1.0

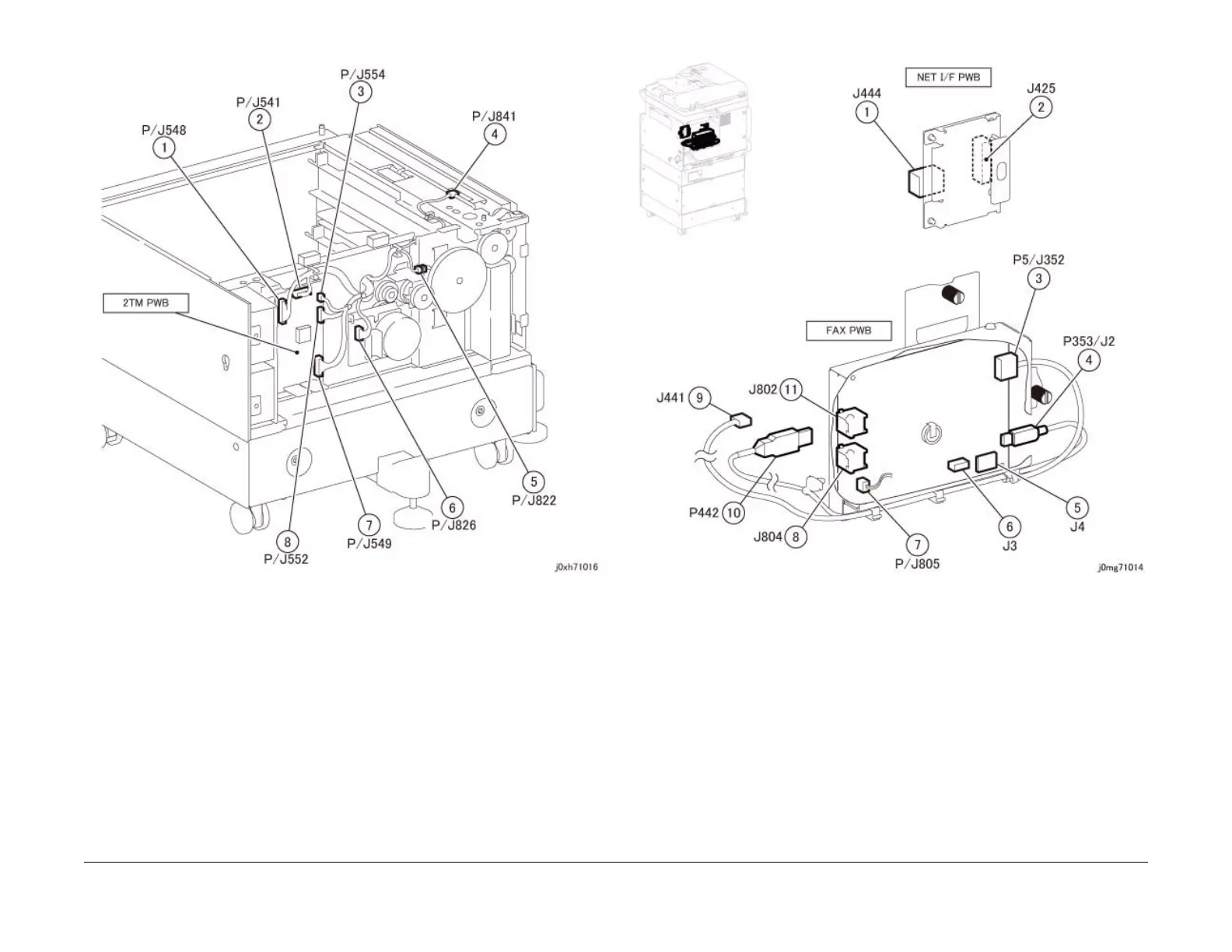

Figure 12 2TM 2of2 (j0xh71016) Figure 13 NET I/F PWB / FAX PWB (j0mg71014)
