Setting the SCSI Board Terminator Switch
322
Appendix
5.

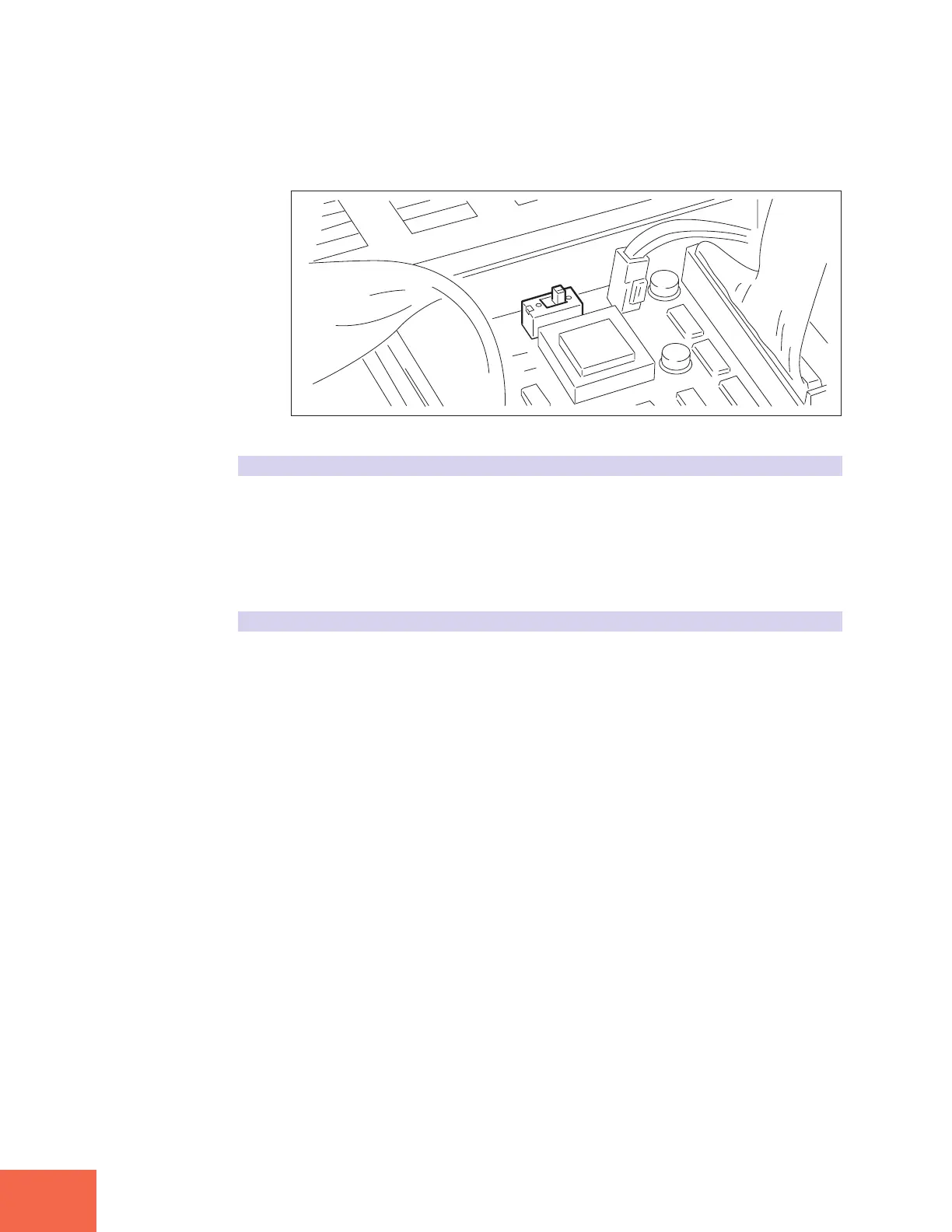

Set the SCSI terminator switch.
Set the TERM switch on the SCSI board to match your configuration, as follows.
If you are connecting an internal hard disk
Set the SCSI terminator switch of the SCSI interface board to OFF. (When shipped from
the factory this is ON.)
* In this case you must also set the SCSI terminator of the internal disk itself to ON.
(☞324) And if you are connecting one or more external SCSI devices, you must also
be sure to switch ON the terminator of the final device in the chain. (Alternatively,
turn its terminator switch ON.) (☞328)
If you are not connecting an internal hard disk
Set the SCSI terminator switch of the SCSI interface board to ON. (When shipped from
the factory this is ON.)
* If you are connecting one or more external SCSI devices, you must also be sure to
switch ON the terminator of the final device in the chain. (Alternatively, turn its
terminator switch ON.) (☞328)
6.
Return the top cover to its original position, and fasten into place with the
screws removed at Step 3 above.
• Be careful to keep clear of internal cabling when remounting the cover.
• When refastening the three screws on the top, press inward on the top center part of
the front panel.
7.
Plug in the power cord.
