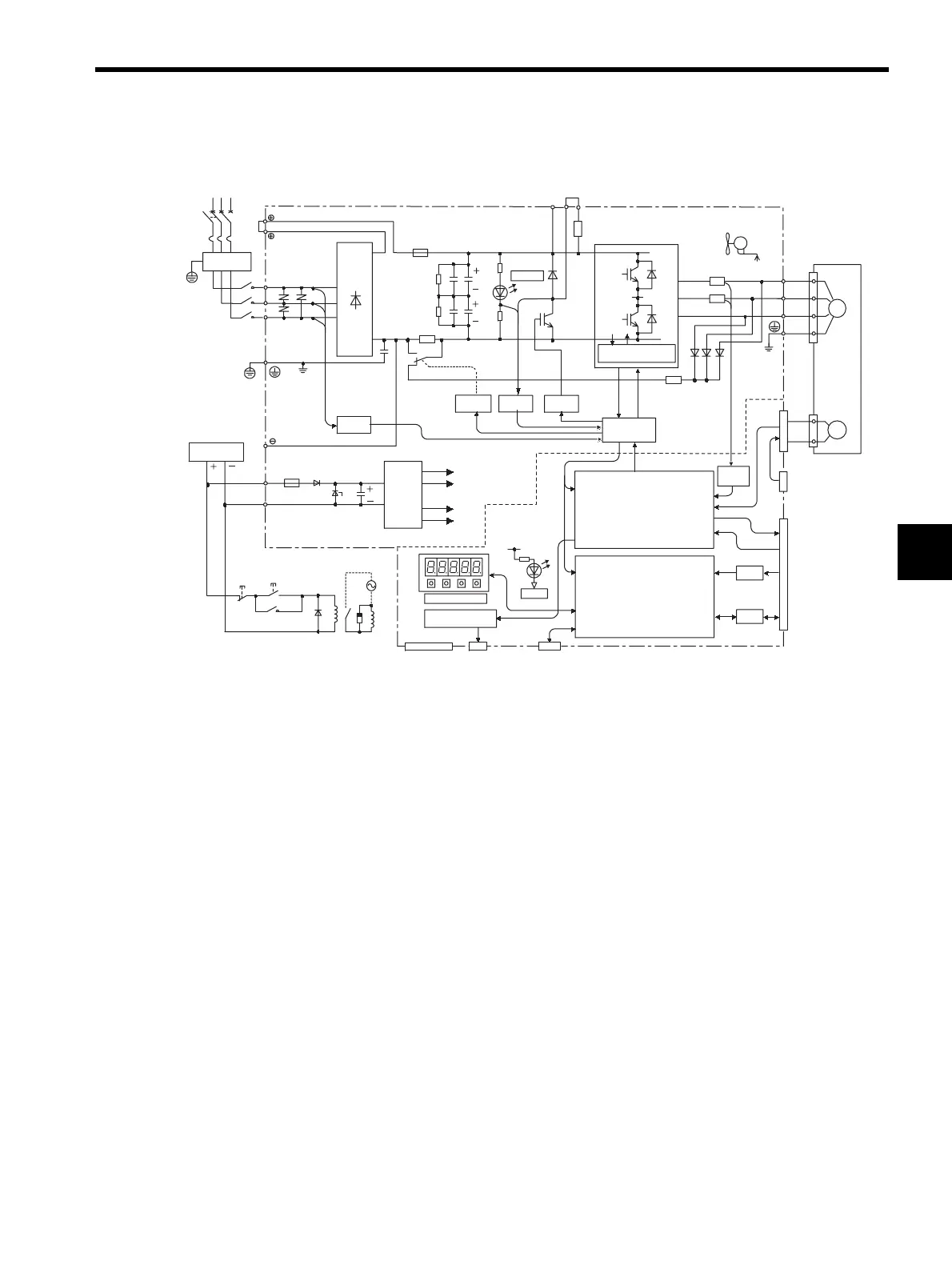

4.3 SERVOPACK Internal Block Diagrams

4-13

4.3.5 Three-phase 400 V, 500 W to 3.0 kW Models

XX1 XX3

1KM

CHARGE

FU1

FU2

FAN1

CN2

CN8

CN1

A/D

I/O

RY1

24V

2RY

1KM

CN10 CN5

CN3

D1 D2 D3

±12 V

+5 V

+15 V

+7.5 V

+5 V

±12 V

1KM

+10%

-15%

Gate drive overcurrent

/overheat protector

Control power

+24 VDC

(not provided)

AC power supply

(100 V / 200 V)

Three-phase 380 to 480 V

(50/60 Hz)

Noise filter

Power

OFF

Power

Open during

servo alarm

(1RY)

High speed

diode

Surge suppressor

Voltage

sensor

Relay

drive

Voltage

sensor

Gate

drive

Interface

PG output

Reference pulse input

Speed/torque reference

input

Sequence I/O

For battery connection

Connector for

application

module

Analog monitor

output for

supervision

Digital operator or

personal computer

POWER

Panel operator

Analog voltage

converter

DC / DC

converter

CPU

(Position/speed

calculation, etc.)

ASIC

(PWM control, etc.)

Current

sensor

Servomotor
