5.8 Peripheral Devices

5-73

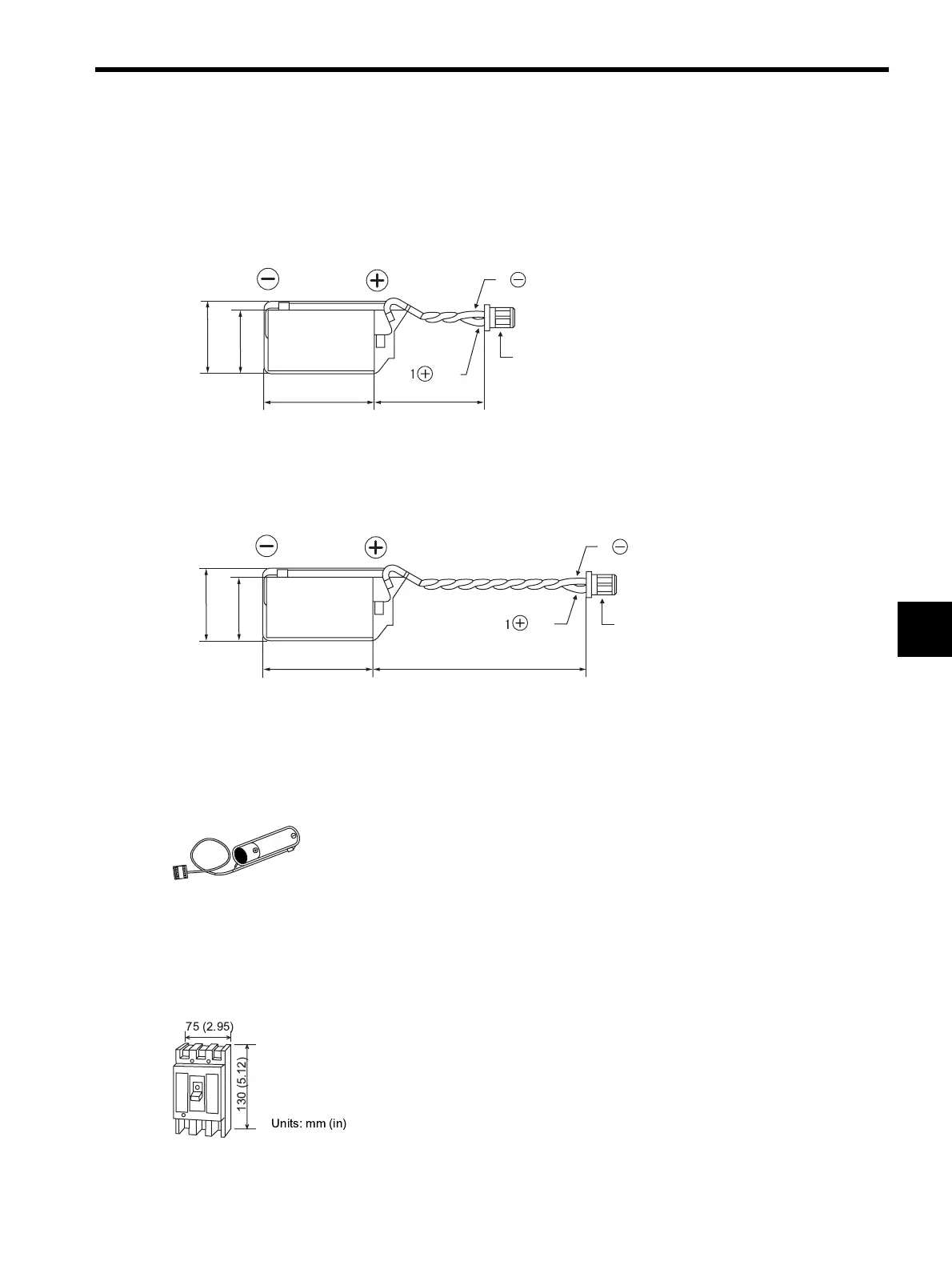

(b) Dimensional Drawing

• JZSP-BA01

• JZSP-BA01-1

(2) Battery Connected to the Host Controller

When connecting the battery to the host controller, select the battery in accordance with the specifications of the

host controller.

Use the battery ER6 VC3 or the equivalent:

3.6 V 2000 mAh manufactured by Toshiba Battery Co., Ltd.

5.8.9 Molded-case Circuit Breaker (MCCB)

(1) Model: MN50-CP

The recommended product is manufactured by Mitsubishi Electric Corporation. Refer to the manufacturer’s

instruction manual for details.

Red

2 Black

26 (1.02) 20±3 (0.79±0.12)

17 (0.67)

14.5 (0.57)

Connector

Lithium battery ER3V

3.6 V 1000 mAh

Manufactured by Toshiba Battery Co., Ltd.

Units: mm (in)

Red

Connector

2 Black

26 (1.02)

17 (0.67)

14.5 (0.57)

50±5 (1.97±0.20)

Lithium battery ER3V

3.6 V 1000 mAh

Manufactured by Toshiba Battery Co., Ltd.

Units: mm (in)

130 (5.12)

75 (2.95)

Units: mm (in)
