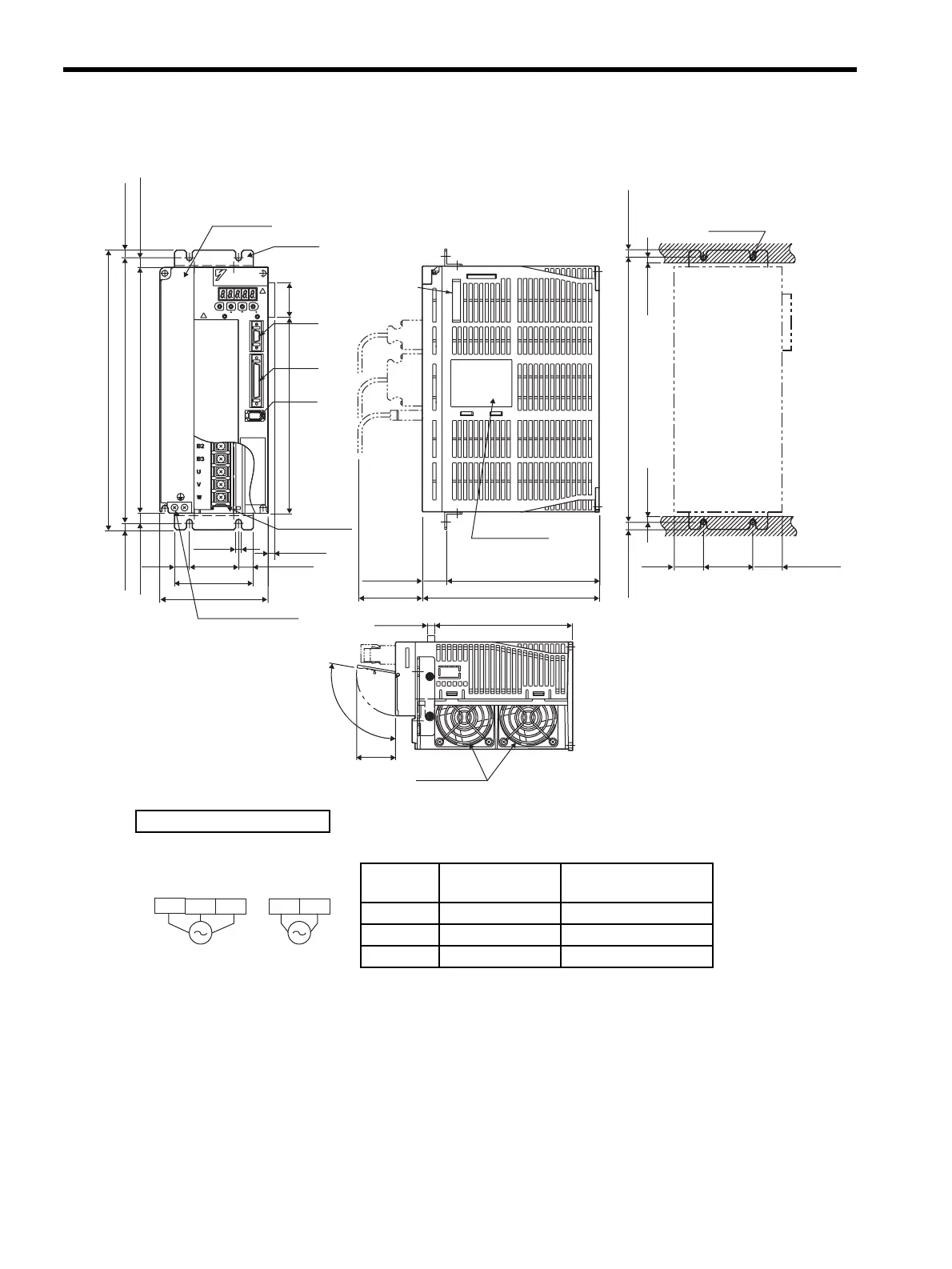

4 SERVOPACK Specifications and Dimensional Drawings
4.8.5 Single-phase 220 V: 1.5 kW (15AE-S-R)
4-38
4.8.5 Single-phase 220 V: 1.5 kW (15AE-S-R)
Cooling fan
Y
Y
CN3
CN1
CN2
(100°)
Y
YASKAWA
YASKAWA
SERVOPACK
SGDH-
39 (1.54)
8 (0.31)
196 (7.72)
CN10
7 (0.28)
141.5 (5.57)
Nameplate
180 (7.09)
Heat sink
250 (9.84)
270 (10.63)
285 (11.22)
80 (3.15)
50 (1.97)
6 (0.24)
(15) (0.59)
(15) (0.59)
(15)
(0.59)
Flange
24.5 (0.96)
155.5 (6.12)
6 (0.24)
6 (.024)
(7.5) (0.30)
(17.5) (0.69)
(17.5) (0.69)
(7.5) (0.30)
110 (4.33)
(75) (2.95)
(40)
(1.57)
(30)
(1.18)
(30) (1.18)
270±0.5 (10.63±0.02)
50±0.5
(1.97±0.02)
(7.5) (0.30)
(7.5) (0.30)
14-pin terminal
M4 mounting screw
CHANGE
MODE/SET
DATA/
POWER
Mounting Hole Diagram
4×M5 tap
(Mounting pitch)
(Mounting pitch)
Ground terminal
2×M4 screws
Units: mm (in)
Approx. mass: 4.5 kg (9.92 lb)
External Terminal Connector
SERVOPACK Connector
Connector
Symbol
SERVOPACK
Connector Model
Manufacturer
CN1 10250-52A2JL Sumitomo 3M Co., Ltd.
CN2 53460-0611 Molex Japan Co., Ltd.
CN3 10214-52A2JL Sumitomo 3M Co., Ltd.
L1C L2CL2 L3L1
200 VAC
50/60 Hz
Three-phase
200 VAC
50/60 Hz
Single-phase
Main circuit
power supply
Control power
supply
