4 SERVOPACK Specifications and Dimensional Drawings
4.8.3 Single-phase 220 V: 750 W (08AE-S-R) Three-phase 200 V: 500 W/750 W/1.0 kW (05AE-R/08AE-R/10AE-R)
4-36
4.8.3 Single-phase 220 V: 750 W (08AE-S-R)
Three-phase 200 V: 500 W/750 W/1.0 kW (05AE-R/08AE-R/10AE-R)

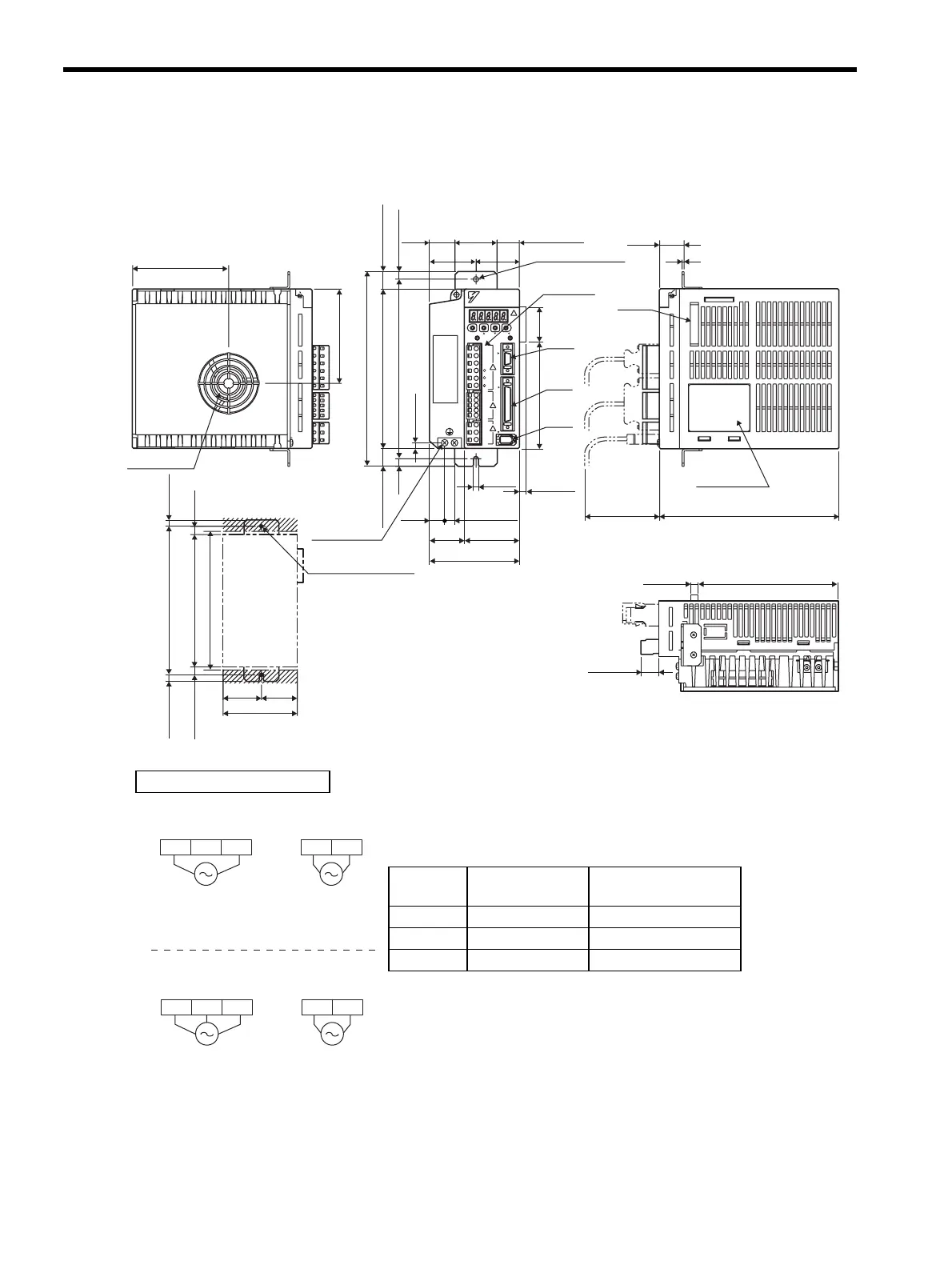

Mounting Hole Diagram
96.2 (3.79)
180 (7.09)
17 (0.67)
7.5 (0.30)
(10) (0.39)
160 (6.30)
90 (3.54)
180 (7.09)
94.4
(3.72)
7.5 (0.30)
7.5
(0.30)
195 (7.68)
160 (6.30)
17.5 (0.69)
17.5 (0.69)
6 (0.24)
90 (3.54)
55 (2.17)
35
(1.38)
10 (0.39)
15
(0.59)
5 (0.20)
42 (1.65)
46.5
(1.83)
43.5
(1.71)
25.5
(1.00)
2
(0.08)
24.5
(0.96)
φ
46.5
(1.83)
Cooling fan
(7.5) (0.30)
CN3
CN2
CN1
YASKAWA
YASKAWA
SERVOPACK200V
SGDH-
8 (0.31)
106 (4.17)
CN10
7 (0.28)
141.5 (5.57)
39 (1.54)
(75) (2.95)
5 (φ 0.20) hole
180±0.5 (7.09±0.02)
Min.168 (6.61)
2×M4 screw holes
(43.5)
(1.71)
10 (0.39)
(22.5) (0.89)
CHANGE
MODE/SET
DATA/
POWER
L1
C
N
3
L2
L3
L2C
B1
B2
B3
U
V
W
L1C
+ 1
+ 2
C
N
1
C
N
2
Ground
terminal
2×M4 screws
Terminal
block
Nameplate
(Mounting pitch)
Units: mm (in)
Approx. mass: 1.9 kg (4.19 lb)
External Terminal Connector
SERVOPACK Connector
Connector
Symbol
SERVOPACK
Connector Model
Manufacturer
CN1 10250-52A2JL Sumitomo 3M Co., Ltd.
CN2 53460-0611 Molex Japan Co., Ltd.
CN3 10214-52A2JL Sumitomo 3M Co., Ltd.
L2 L3L1
Single-phase
220 VAC
50/60 Hz
Three-phase
200 VAC
50/60 Hz
Single-phase
200 VAC
50/60 Hz
Single-phase
220 VAC
50/60 Hz
L1C L2C
L2 L3L1 L1C L2C
Main circuit
power supply
Control power
supply
Main circuit
power supply
Control power
supply
