4 SERVOPACK Specifications and Dimensional Drawings
4.7.9 Three-phase 200 V: 11.0 kW/15.0 kW (1AAE/1EAE)
4-32
4.7.9 Three-phase 200 V: 11.0 kW/15.0 kW (1AAE/1EAE)
145 (5.71)
224 (8.82)
257 (10.12)
271 (10.67)
CN2CN1
SERVOPACK 200V
SGDH-
1AAE
Ver.
YASKAWA
MODE/SET
DATA/
CN3
POWER
CN8
BATTERY
CHARGE
B1 B2
L1C L2C
UVW-L1 L2 L3 +1
320 (12.60)
26.5 (1.04)
140 (5.51)
160 (6.30)
46
(1.81)
34
(1.34)
27 (1.06)
151 (5.94)
45
(1.77)
7
(0.28)
30
(1.18)
200 (7.87)
260 (10.24)
8 (0.31)
7.5 (0.30)
(7.5) (0.30)
435 (17.13)
450 (17.72)
Control circuit
terminal M4
Regenerative
resistor terminal
M6
10 (0.39)
39
(1.54)
248 (9.76)
34
(1.34)
17 (0.67)
126 (4.96)
125 (4.92)
285 (11.22)
CN10
CN5
(30) (1.18)
435 (17.13) 7.5 (0.30)
(7.5) (0.30)
200 (7.87)
30
(1.18)
(30)
(1.18)
Main circuit
terminal M8
Ground
terminal M8
Main circuit
terminal M8
Ground
terminal M8
A
View A
Cooling fan
Nameplate

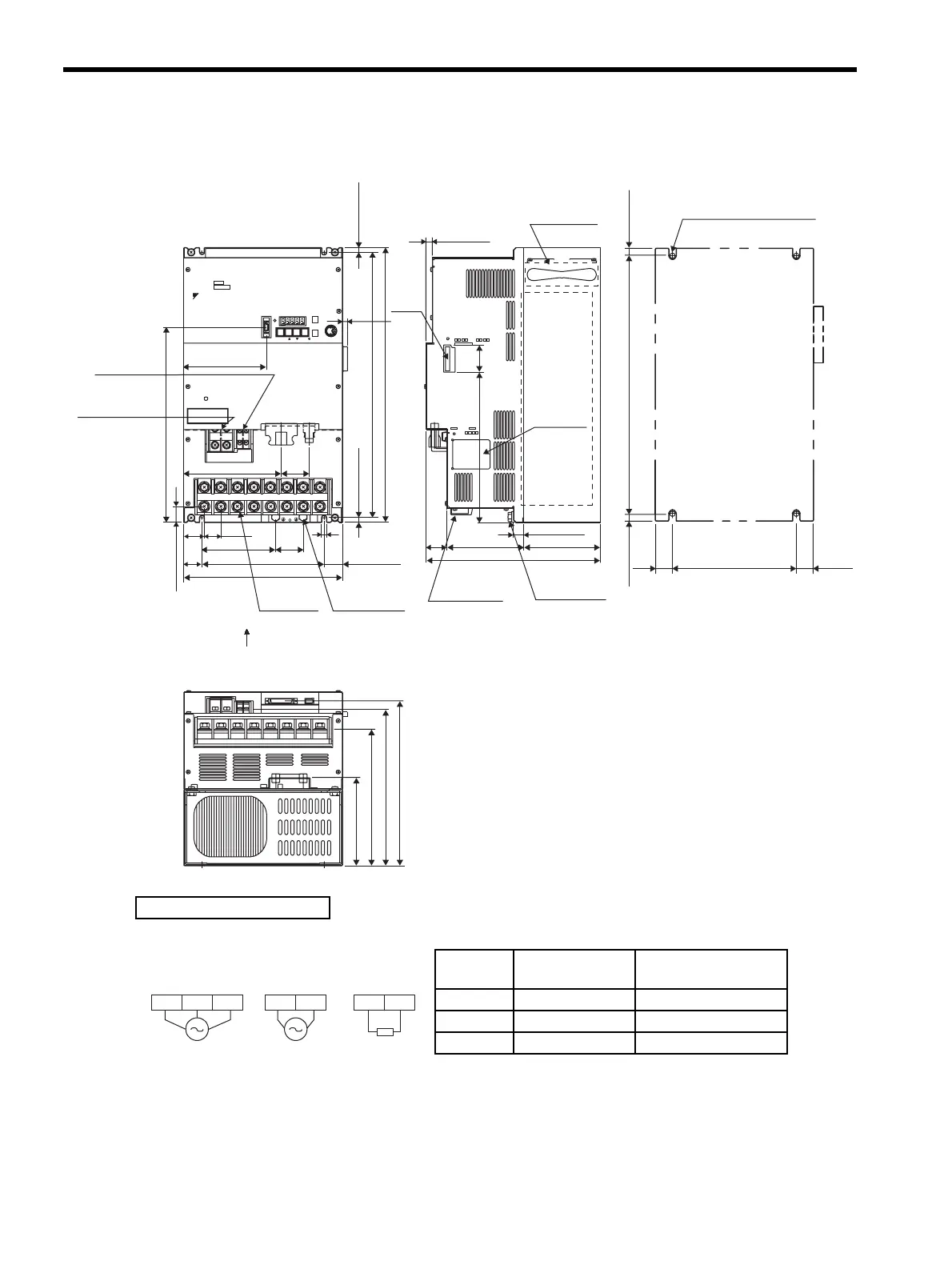

Mounting Hole Diagram
4×M6 screw holes
Units: mm (in)
Approx. mass: 26 kg (57.32 lb)
External Terminal Connector
SERVOPACK Connector
Connector
Symbol
SERVOPACK
Connector Model
Manufacturer
CN1 10250-52A2JL Sumitomo 3M Co., Ltd.
CN2 53460-0611 Molex Japan Co., Ltd.
CN3 10214-52A2JL Sumitomo 3M Co., Ltd.
L1C L2CL2 L3L1
External
regenerative
resistor
B1 B2
200 VAC
50/60 Hz
Three-phase
200 VAC
50/60 Hz
Single-phase
Main circuit
power supply
Control power
supply
