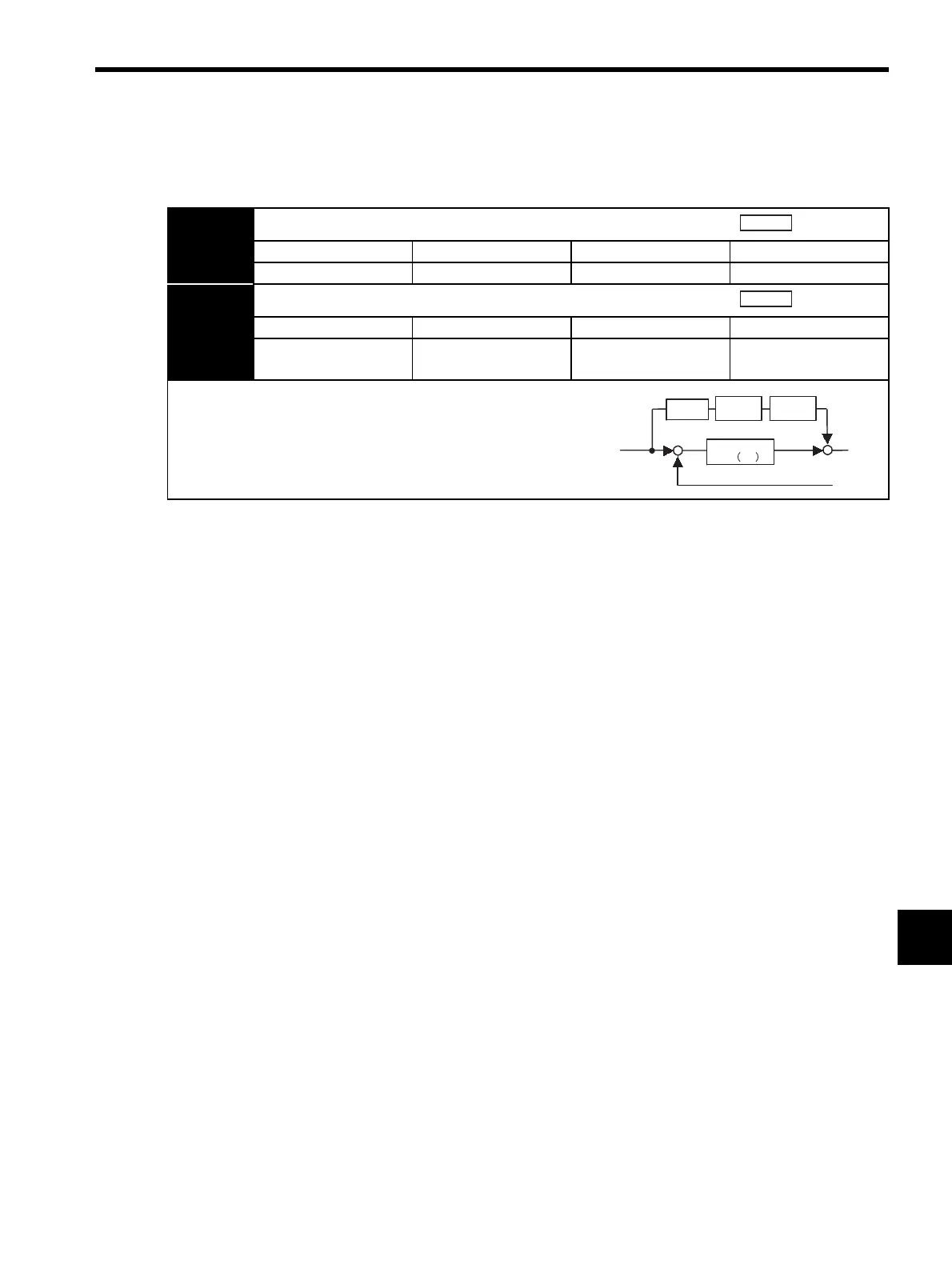

9.4 Servo Gain Adjustment Functions

9-15

9.4 Servo Gain Adjustment Functions

9.4.1 Feed-forward Reference

Pn109 Feed-forward

Setting Range Setting Unit Factory Setting Setting Validation

0 to 100 % 0 Immediately

Pn10A Feed-forward Filter Time Constant

Setting Range Setting Unit Factory Setting Setting Validation

0 to 6,400

(0.00 to 64.00 ms)

0.01ms 0 Immediately

Applies feed-forward compensation in position control inside

the

SERVOPACK. Use this parameter to shorten positioning

time. Too high value may cause the machine to vibrate. For

ordinary machines, set 80% or less in this parameter.

Position

reference pulse

Encoder feedback pulse

Position loop

gain Kp

Pn109 Pn10A

Differ-

ential

Default Chapter6
