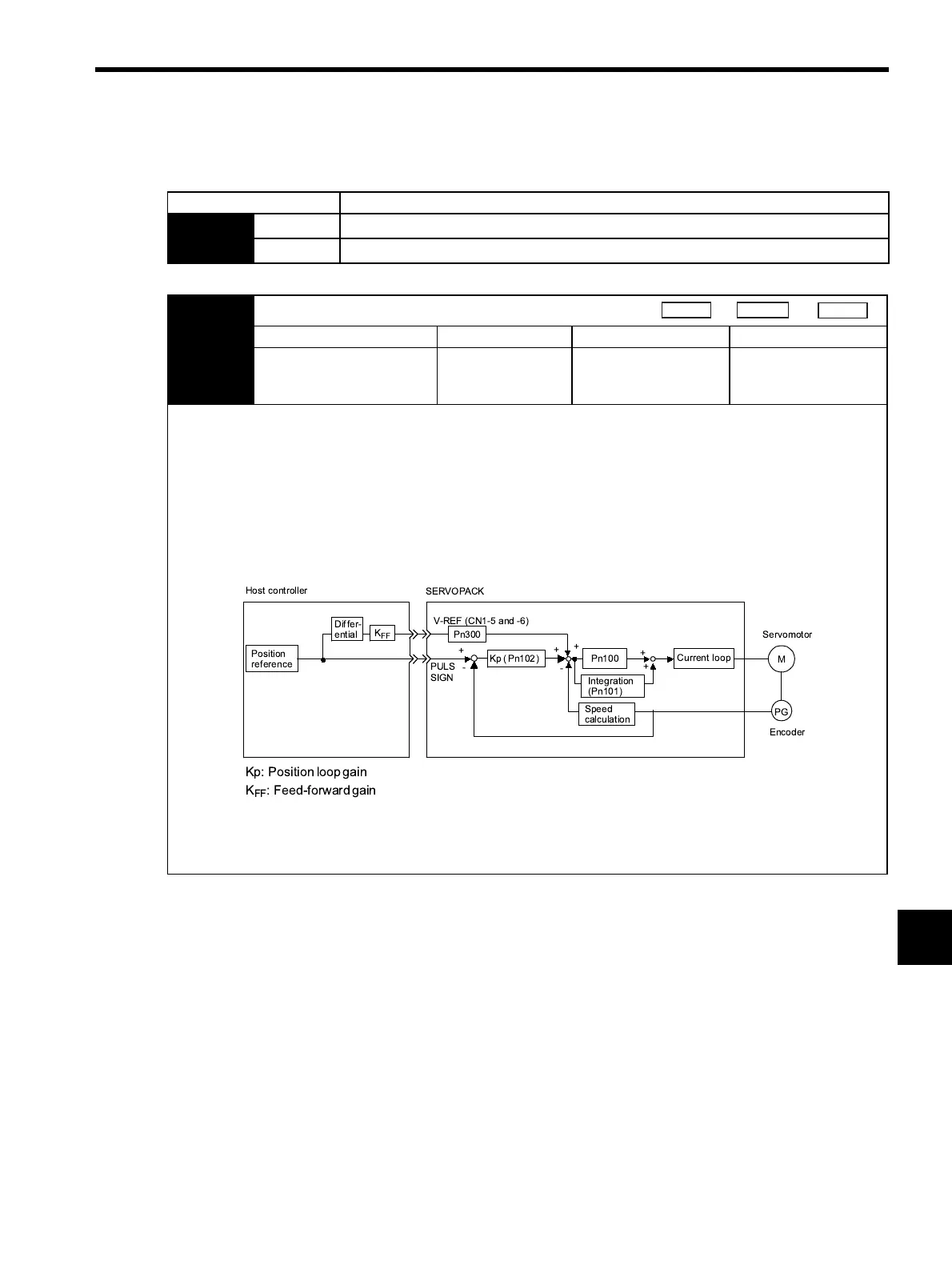

9.4 Servo Gain Adjustment Functions
9-17
9
9.4.3 Speed Feed-forward
Parameter Meaning
Pn207 n.
0
Disabled
n.
1
Uses V-REF terminal for speed feed-forward input.
Pn300
Speed Reference Input Gain
Setting Range Setting Unit Factory Setting Setting Validation
150 to 3,000
(1.50 to 30.00 V/Rated
speed)
0.01 V/Rated
speed
600 Immediately
The speed feed-forward function uses analog voltages and is valid only in position control.
The speed feed-forward function is used to shorten positioning time. The host controller differentiates the position refer-
ence to generate the feed-forward reference, and inputs the feed-forward reference together with the position reference to
the SERVOPACK.
Too high a speed feed-forward value will result in overshooting or undershooting. To prevent such troubles, set the opti-
mum value while observing the system responsiveness.
Connect a position reference signal line to PULS and SIGN (CN1-7, -8, -11, and -12) and a speed feed-forward reference
signal line to V-REF (CN1-5 and -6) from the host controller.
Speed feed-forward value is set using the parameter Pn300.
The factory setting is Pn300 = 600. If, for example, the speed feed-forward value is
±6V, then the speed is limited to the
rated speed.
Speed
Position
Torque
! "
#
" !"
$%
#&'
( ""
#)*
+ " %
+ ,%
-
"
.
/0#
#$
