3 Specifications and Dimensional Drawings

3-156

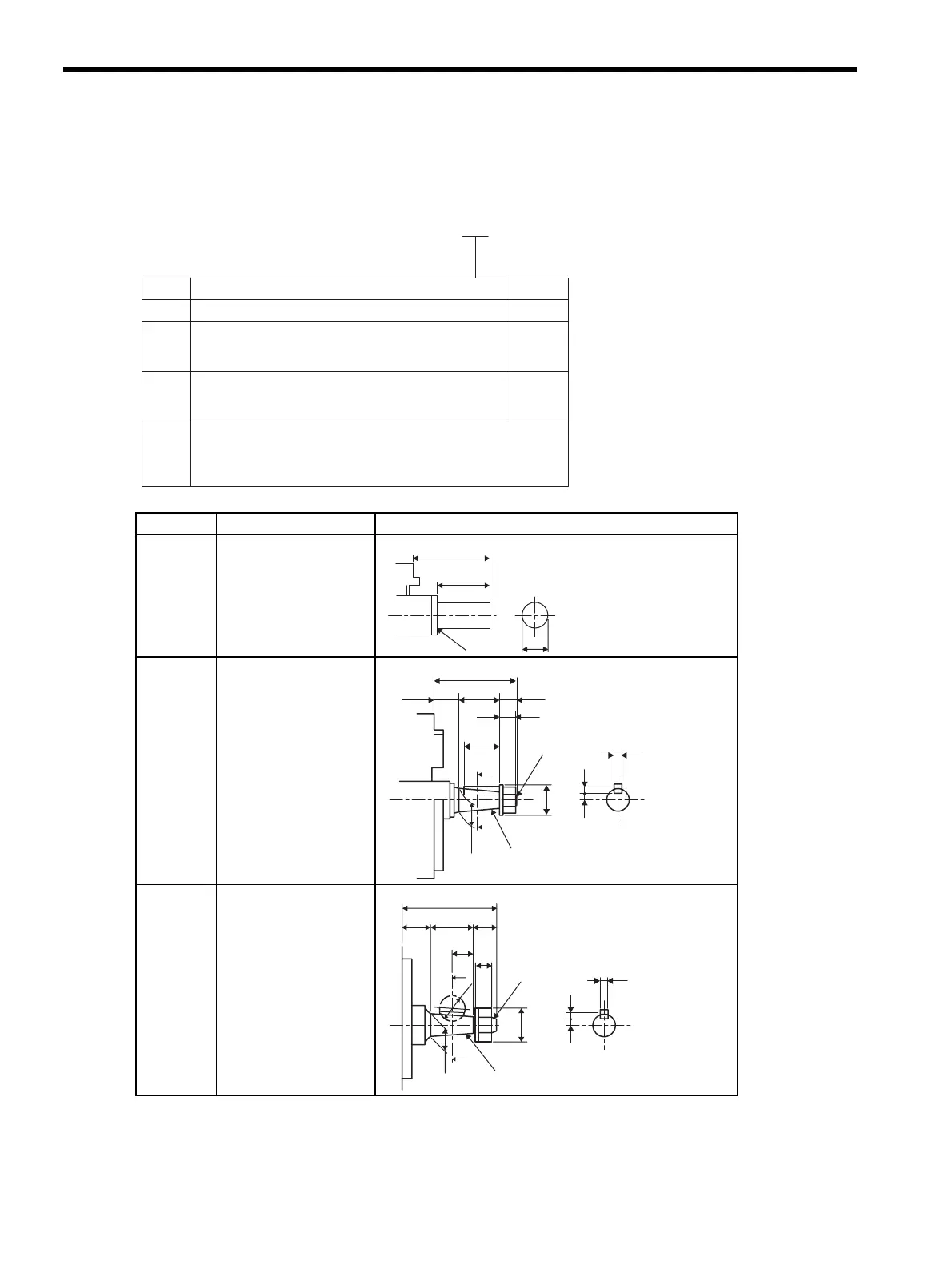

3.19 Shaft End Specifications for SGMGH, SGMSH and SGMDH

Servomotors

Symbol Specifications Shaft End

2 Straight, without key

Taper 1/10

With parallel key

Taper 1/10,

With woodruff key

SGMH - 

Symbol

Specifications Remarks

Standard

Semi-

standard

Semi-

standard

Semi-

standard

Straight, without key

Taper 1/10, with parallel key

(Key slot is JISB1301-1976 high precision. SGMGH

series is interchangeable with USAGED series.)

Taper 1/10, woodruff key

(Set only for SGMGH-05 and 09. Woodruff key is

JISB1302.)

Straight, with key and tap for one location

(Key slot is JISB1301-1976 high precision.Key slot

tolerance is JISB1301. Both key and tap are

included.)

φS

LW Q

Taper 1/10

φV

φS

Section Y-Y

Taper 1/10

Q/2

LW Q QA

φQK

φV

φS

Section Y-Y
