Zebra ZT600 Series User Manual

Diagnostics and Troubleshooting
222

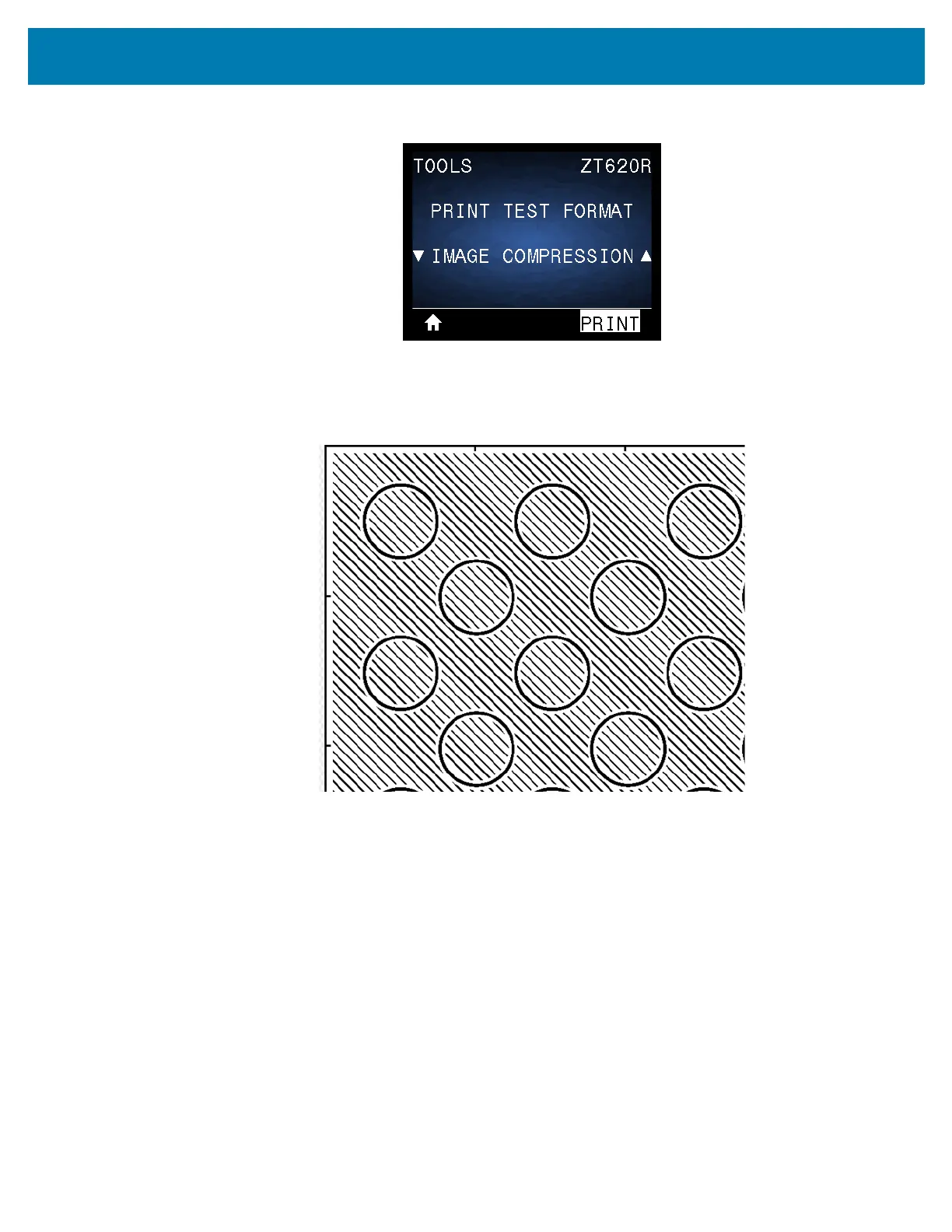

IMAGE COMPRESSION
The printer prints an image with diagonal lines, circles, and hash marks at regular intervals around the
edges of the image to assist with issues regarding compression or stretching of an image. You can
measure the distance between the hash marks or compare the circles and lines to verify if things are being
distorted.

Zebra ZT600 Series Specifications

General

Print Method	Thermal Transfer/Direct Thermal
Print Resolution	203 dpi/8 dots per mm; 300 dpi/12 dots per mm
Maximum Print Width	4.09 in./104 mm
Maximum Print Speed	14 ips (356 mm/s) for 203 dpi, 12 ips (305 mm/s) for 300 dpi
Media Sensors	Reflective and Transmissive
Communication	USB, Serial, Ethernet, Bluetooth
Memory	512 MB Flash
Operating Temperature	5°C to 40°C
