Zebra ZT600 Series - Page 49

Printer Setup and Operation
49

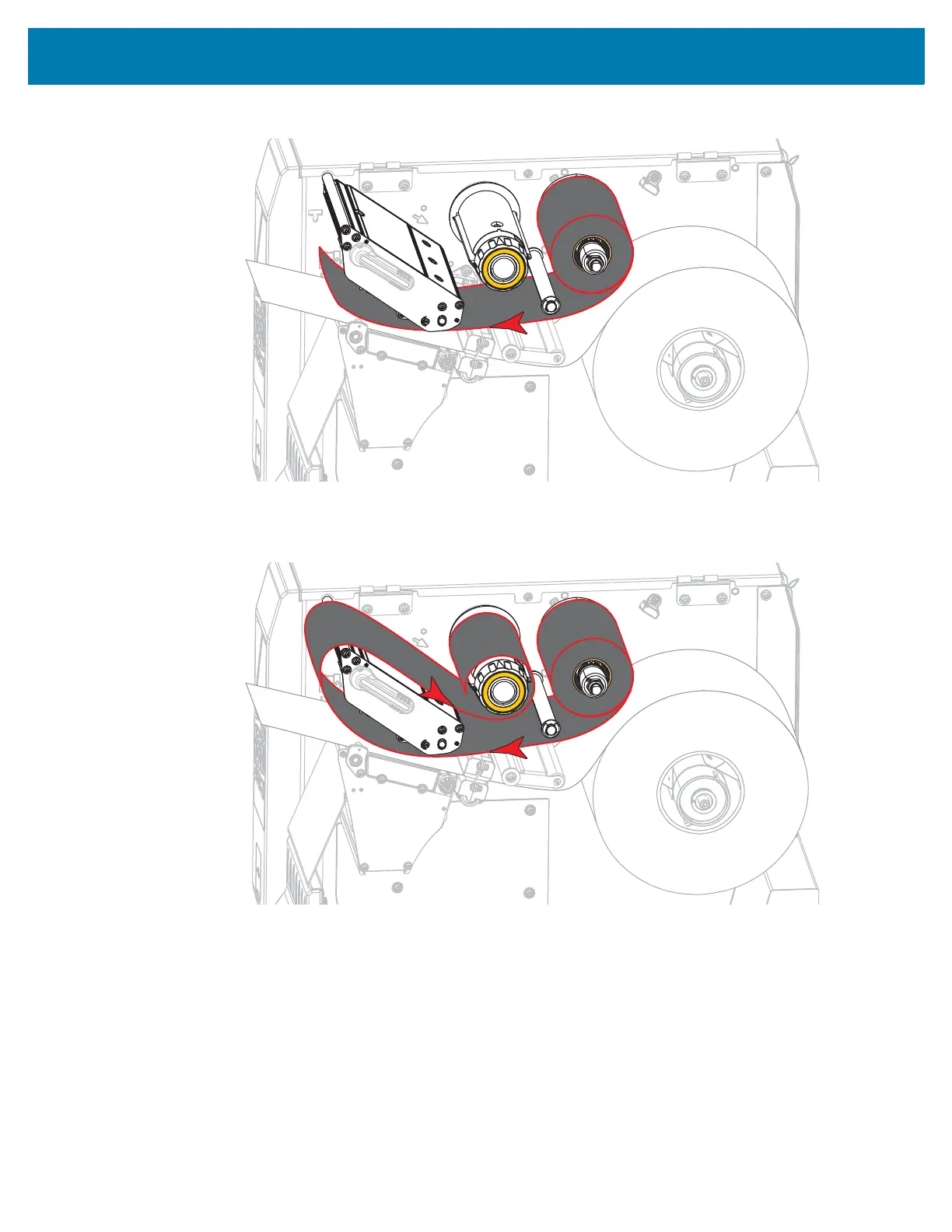

4. Bring the ribbon under the printhead assembly and around its left side, as shown.
5. With the ribbon tracking as far back as it can under the printhead assembly, wrap the ribbon around
the ribbon take-up spindle. Rotate the spindle several turns in the direction shown to tighten and align
the ribbon.
