Zebra ZT600 Series User Manual

Printer Setup and Operation
61
2. Click Finish.
The Zebra Setup Utilities screen displays.
Connecting the printer to a USB port on your computer
Complete the steps in this section only after the System Prepare Wizard prompts you to do so or after you
have opened the Zebra Setup Utilities program. If necessary, complete the steps in Install Zebra Setup
Utilities on page 51 before continuing.

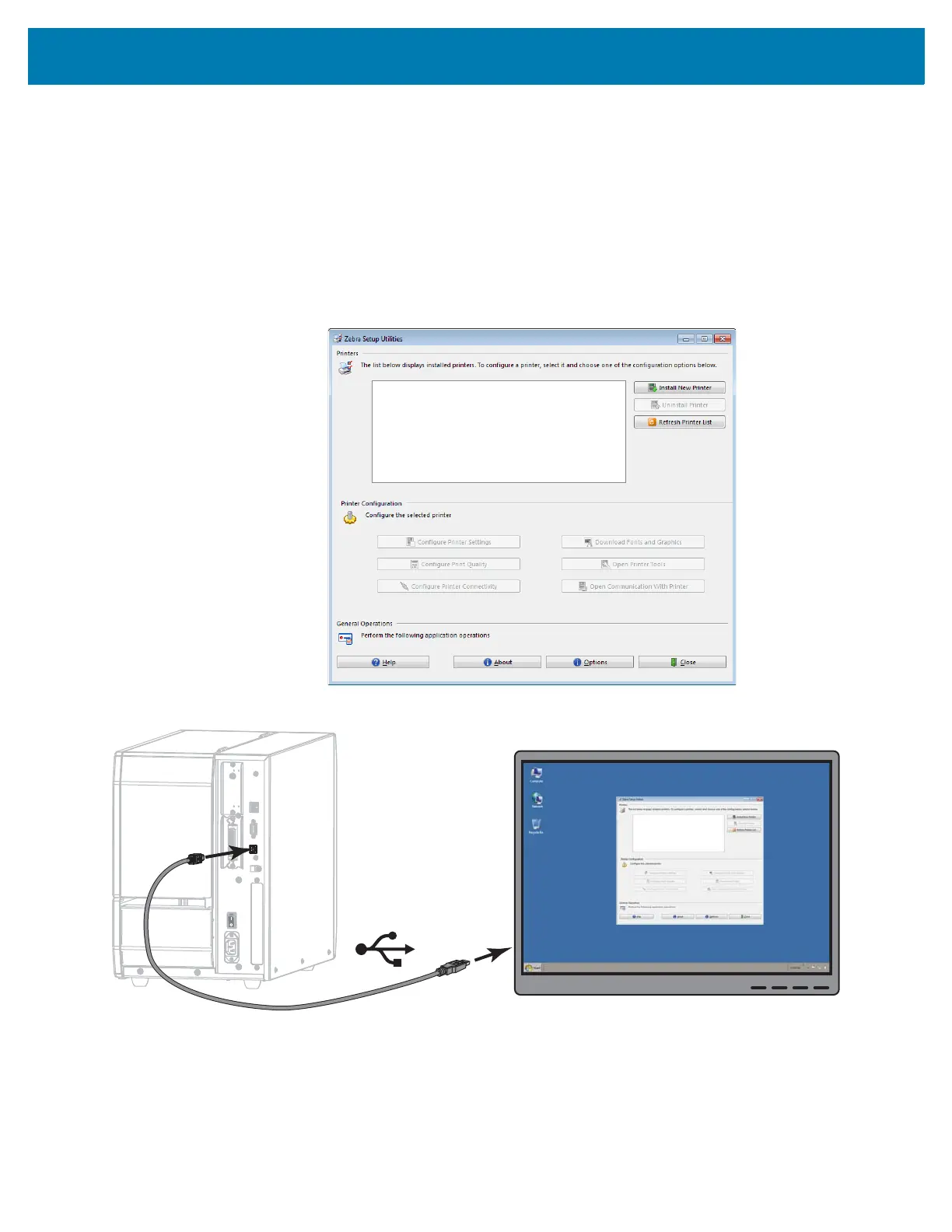

Figure 5 • Zebra Setup Utilities Screen
3. Connect one end of the USB cord to the USB port on your printer and the other end to your computer.

Zebra ZT600 Series Specifications

General

Print Method	Thermal Transfer/Direct Thermal
Print Resolution	203 dpi/8 dots per mm; 300 dpi/12 dots per mm
Maximum Print Width	4.09 in./104 mm
Maximum Print Speed	14 ips (356 mm/s) for 203 dpi, 12 ips (305 mm/s) for 300 dpi
Media Sensors	Reflective and Transmissive
Communication	USB, Serial, Ethernet, Bluetooth
Memory	512 MB Flash
Operating Temperature	5°C to 40°C
