Printer Setup and Operation
80
7. Click Next.

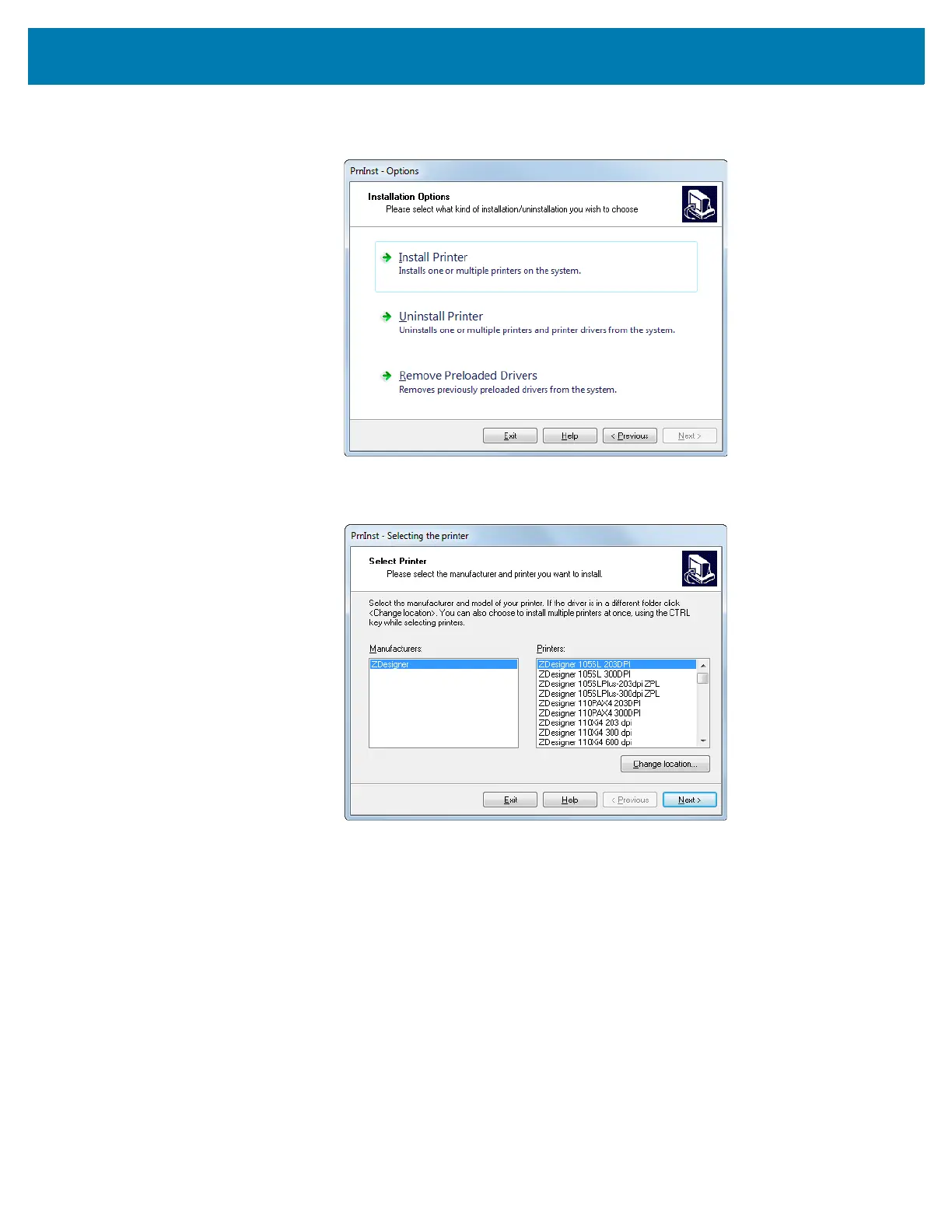

You are prompted to select an installation option.
8. Click Install Printer.
You are prompted to select a printer type.
9. Select your printer model and resolution.
The model and resolution are on a part number sticker on the printer, usually located below the media
spindle. The information will be in the following format:
Part Number: XXXXXxY – xxxxxxxx
where
XXXXX
= the printer model
Y
= the printer resolution (2 = 203 dpi, 3 = 300 dpi, 6 = 600 dpi)
For example, in the part number
ZT620x3 – xxxxxxxx
ZT620 indicates that the printer is a ZT620 model
3 indicates that the printhead resolution is 300 dpi
