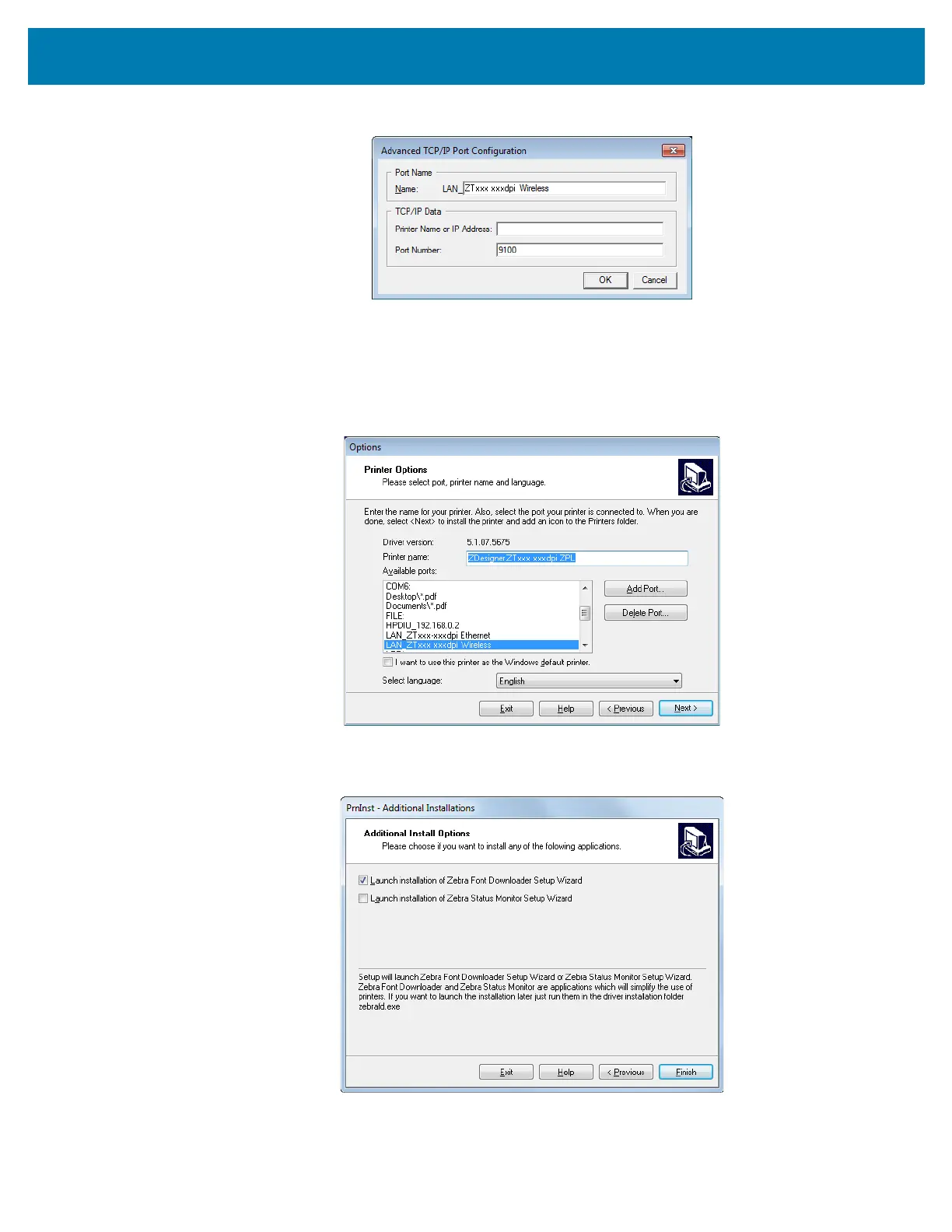

Printer Setup and Operation
82
13. Give the port a name that you can recognize when it appears in the list of available ports.
14. Enter the printer’s IP address. This could be one that was assigned automatically or one that you
specified manually in the previous section.
15. Click OK.
A printer driver is created with the port name that you assigned. The new printer port appears in the list
of available ports.
16. Click Next.
You are prompted to launch other setup wizards.

Table of Contents

Other manuals for Zebra ZT600 Series

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Zebra ZT600 Series and is the answer not in the manual?

Zebra ZT600 Series Specifications

General IconGeneral
Print MethodThermal Transfer/Direct Thermal
Print Resolution203 dpi/8 dots per mm; 300 dpi/12 dots per mm
Maximum Print Width4.09 in./104 mm
Maximum Print Speed14 ips (356 mm/s) for 203 dpi, 12 ips (305 mm/s) for 300 dpi
Media SensorsReflective and Transmissive
CommunicationUSB, Serial, Ethernet, Bluetooth
Memory512 MB Flash
Operating Temperature5°C to 40°C
