CELL-DYN 3000 System Operator’s Manual 1-5
9140240E — May 1995
Chapter 1 System Description
System Components

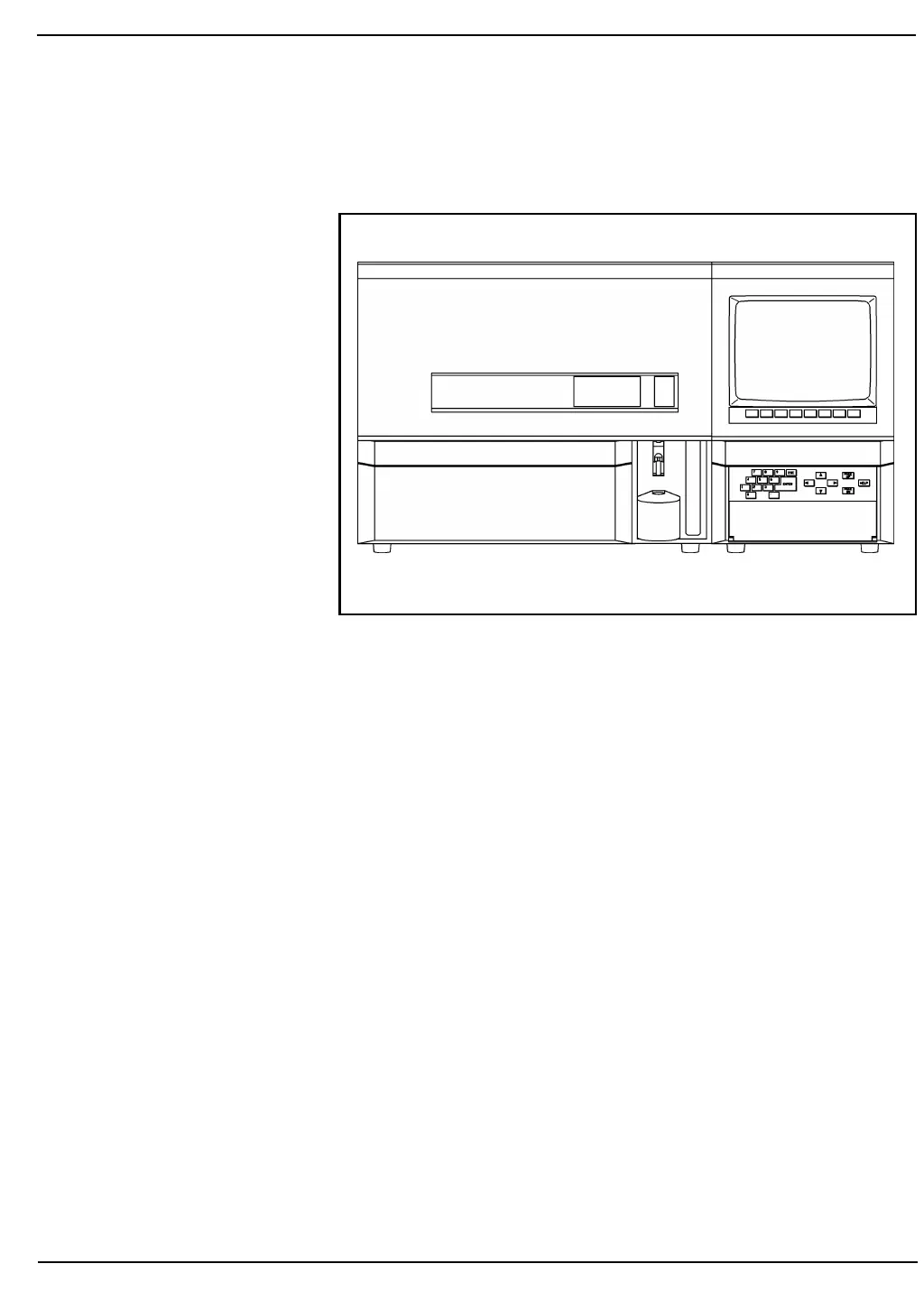

Figure 1.3: CELL-DYN 3000 System Components
The two main modules of the CELL-DYN 3000 are depicted in Figure
1.3.
Analyzer
The Analyzer contains the hardware to aspirate, dilute and analyze each
whole blood specimen.
Data Station
The Data Station contains the computer, video display monitor and
keyboard.
Analyzer
Data Station
