Bar Code Label Placement
• All labels should be placed on the tubes securely and without flaps
sticking out. (See Figure A.2.) Excessive numbers of labels may
prevent tubes from mixing properly.
• The Bar Code Label should be placed on the tube just below the
stopper with the bars perpendicular to the length of the tube. See
Figure A.2 for proper placement.

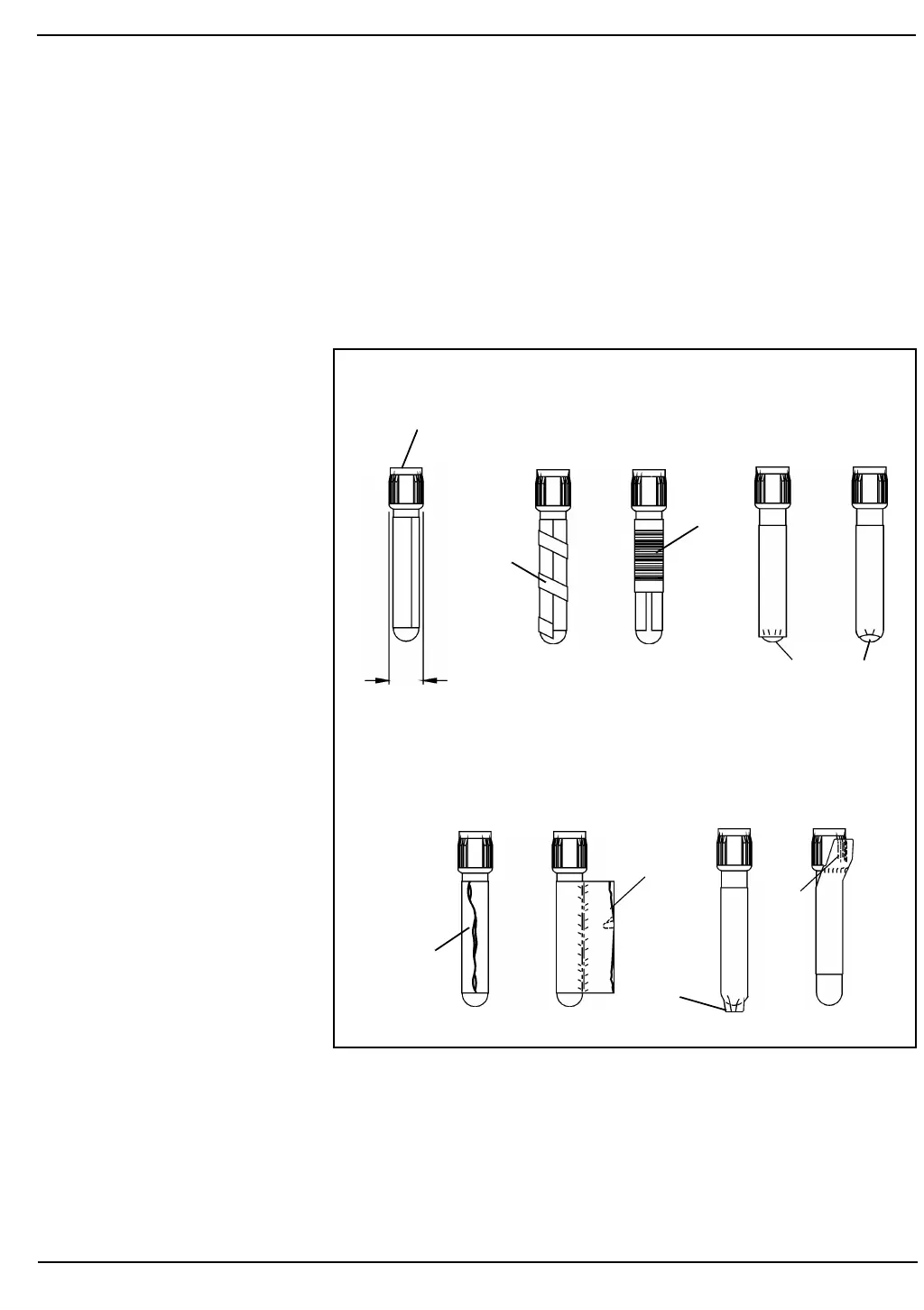

Figure A.2: Tube Labeling Requirements
Properly Labeled Tubes
Improperly Labeled Tubes
Top Surface
Should Be Dry
16.5 mm
Width Limit For
Multiple Labels
Diameter
Clear
Tape
Bar Code
Label
Exposed
Bottom
High
Collar
Tail
Flap
Edges
Peeled
Loose
