Abbott CELL-DYN 3000 - Figure 9.7: Aspiration Peristaltic Pump

CELL-DYN 3000 System Operator’s Manual 9-21
9140240E — May 1995
Chapter 9 Maintenance

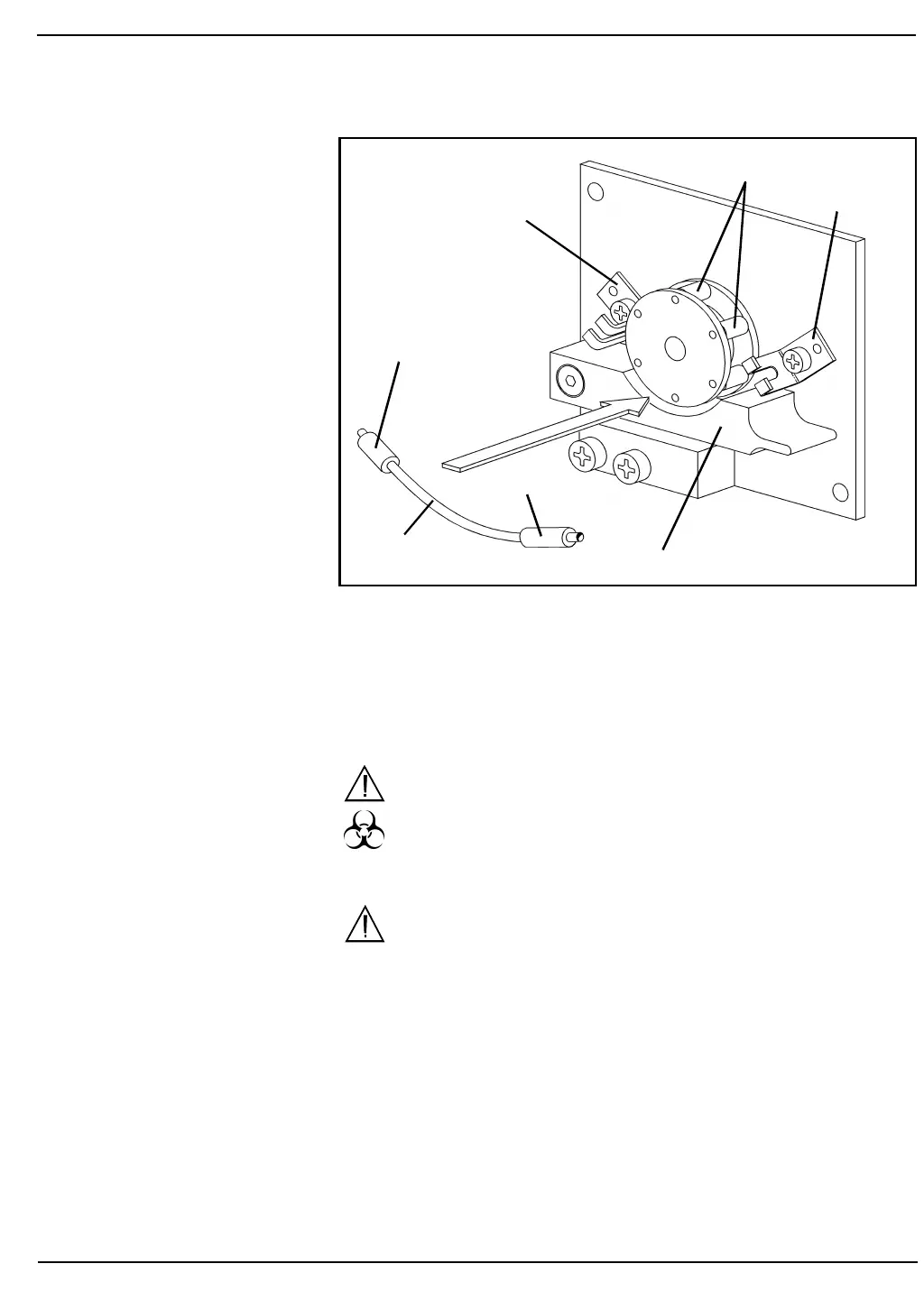

Figure 9.7: Aspiration Peristaltic Pump
Materials Required
1. Sample aspiration peristaltic pump tubing
2. Gloves, lab coat, and suitable eye protection
WARNING: Potential Biohazard. Follow established
biosafety practices when performing maintenance, service or
troubleshooting procedures. Wear gloves, lab coat, and suitable
eye protection. Refer to Chapter 8, Precautions, Limitations and
Hazards, for additional information.
CAUTION: Use powder-free gloves when performing the
maintenance procedure to avoid contaminating the instrument.
NOTE: The sample aspiration pump tubing has a smaller
diameter than the WBC transfer pump tubing and is identified by
the orange collar on each end.
Rollers
Metal
Bracket
Metal
Bracket
Collar
Pump
Tubing
Release Lever
Collar
