12-10 CELL-DYN 3000 System Operator’s Manual
9140240E — May 1995
Sample Loader Chapter 12

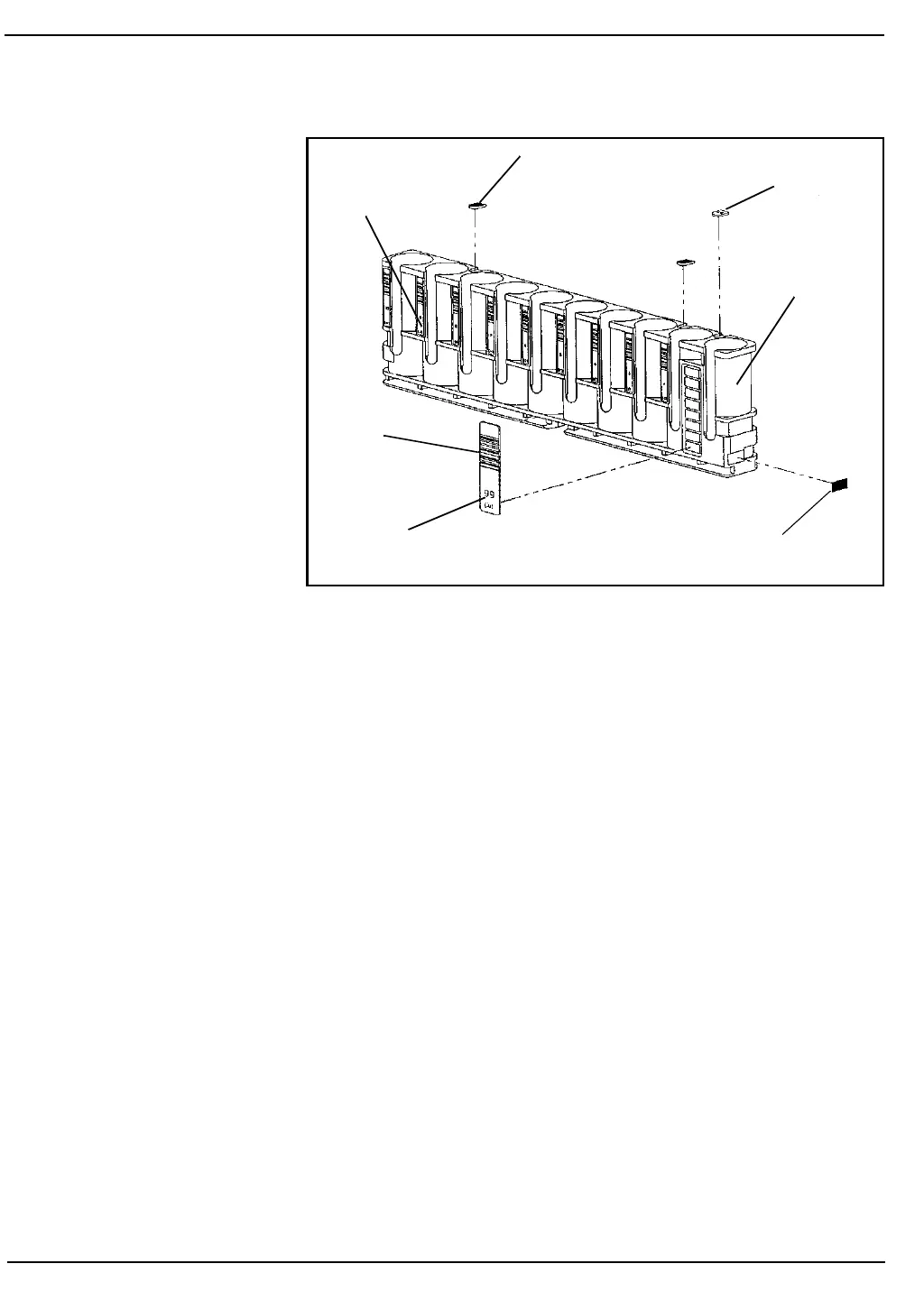

Figure 12.7: Tube Racks
NOTE: The bar coded rack ID label is read when the tube in the
first position is moved to the aspirate station. If there is no bar
code label on the rack or the label is unreadable, the Sample
Loader stops and the message Auto-Sampler alarm condition
<u>; see DIAG is displayed on the bulletin line. Refer to
Chapter10, Troubleshooting. Bar coded rack ID labels on tube
racks are mandatory for proper Sample Loader operation. They
must be placed on racks between tube positions 1 and 2, even if
bar code labels on samples are not used. For more information,
refer to Chapter 2, Installation.
The bar coded rack ID label identifies each rack by number and is read
by the bar code reader. The system tracks the rack number and tube
position for each sample placed in the rack.
Black End Rack Visual Indicator Label
(END RACK ONLY)
Rack ID
Number
Label
Tube
Rack
Black End Rack Sensor Label
(END RACK ONLY)
Orient Numbered End
DOWNWARD
Bar Coded Rack
ID Label
Bar Coded
Position
ID Label
