Sample Loader Chapter 12
Sample Loader Components
The Sample Loader consists of a main module and a tower unit as
depicted in Figure 12.4. The functions of the keys on the Sample Loader
are discussed briefly in this section. The Sample Loader operation
keyboard is shown in Figure 12.5.

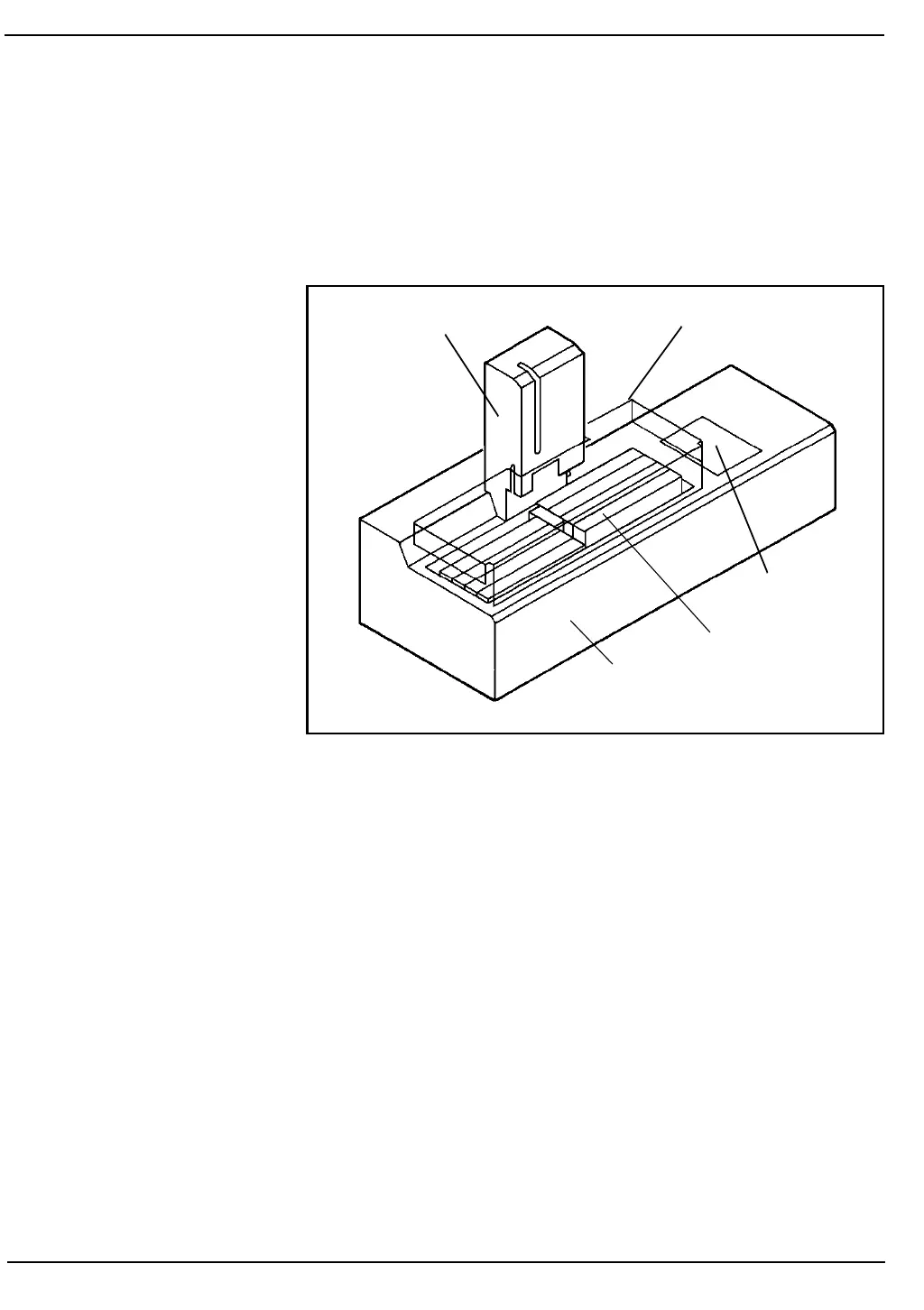

Figure 12.4: Sample Loader
The main module contains:
Power On/Off switch
Power and communication connectors
Operation keyboard
Safety cover
Tray to hold the tube racks
The tower unit contains:
Vent needle and vent needle wash block
One mixing head
Aspiration needle and aspiration needle wash block
Tube sensor
Vial positioning mechanism (referred to as the plunger)
Bar code reader
NOTE: A detailed functional description of all components is
given in the Functional Description section of this chapter.
Tower Unit
Safety Cover
Operation
Keyboard
Tube Racks
Main Module
