Version 16.10 AF-6600 AF-5000 Series Install Manual 70
The following figure depicts how a single AF-COM-T25 is connected to an AF-INTERCOM-2S.
Note that Advanced-SV Network connection(s) on SV-COM-PANEL are not shown, nor are additional
connections between the AF-INTERCOM-2S and other devices that it connects to.

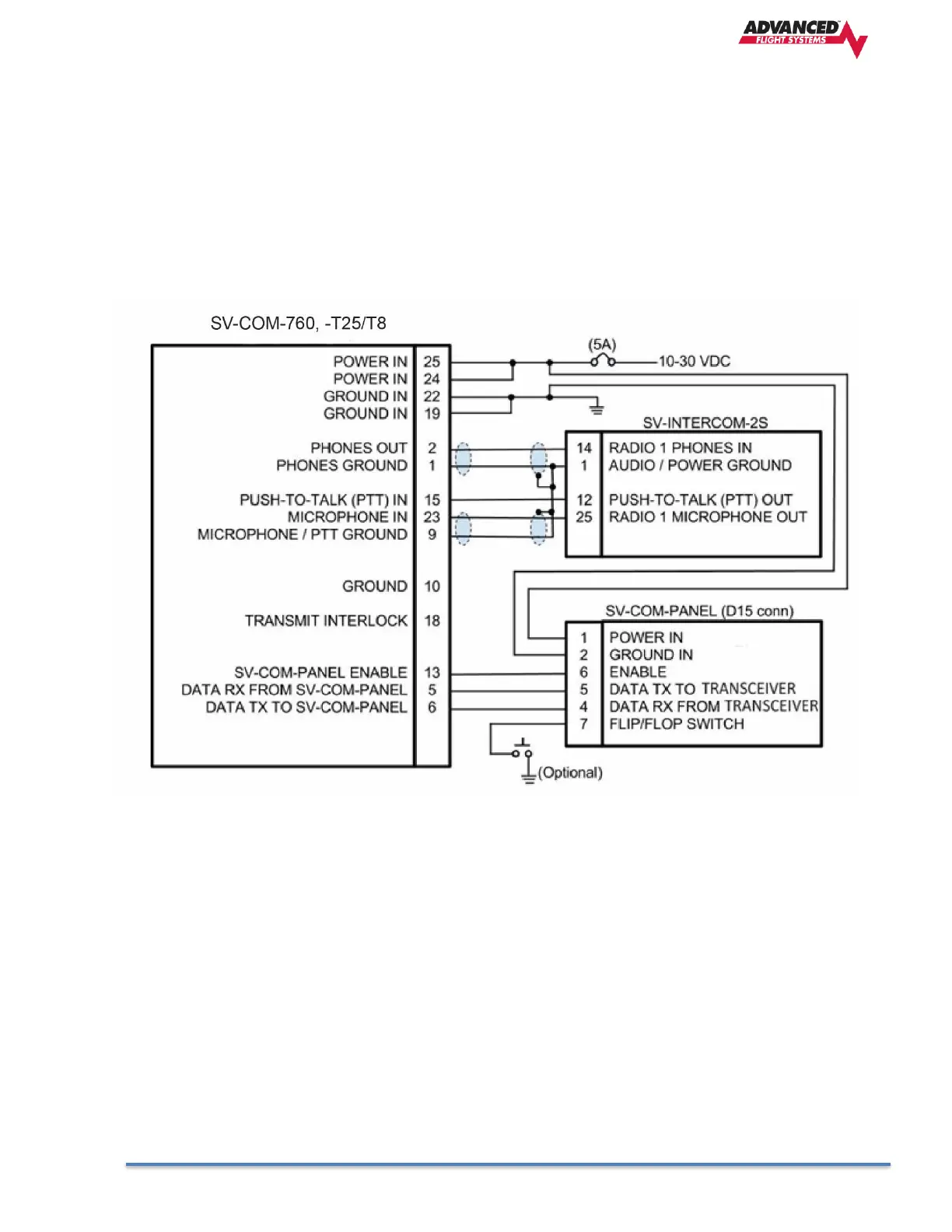

Single AF-COM-T25 to SV-Intercom-2S Wiring Diagram
