5 Repairing the Fluorescence Detector
8

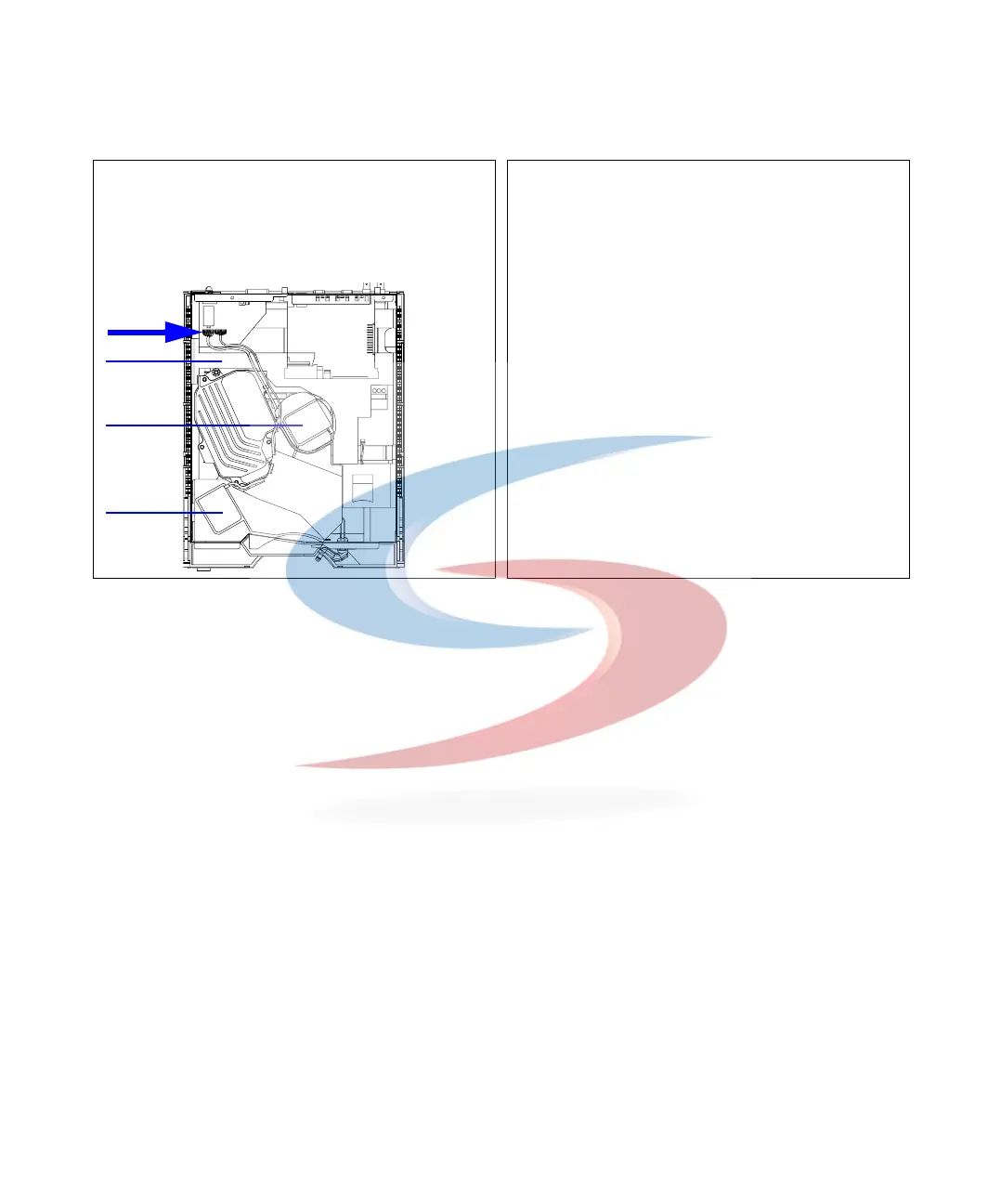

Replace the lamp housing cover and fix the screws.
Carefully insert the rear foam. Reconnect the
monochromator cables to the main board. Left is
excitation, right is emission.
Next Steps:
• Replace the covers as described in “Replacing the Foam
and the Top Cover” on page149.
• Re-install the detector in the stack.
• Tur n the l am p on.
A
B
A
B
A
Rear
foam
EM
EX
To Next Page
