Repairing the Fluorescence Detector 5
1100 Series FD Reference Manual 191

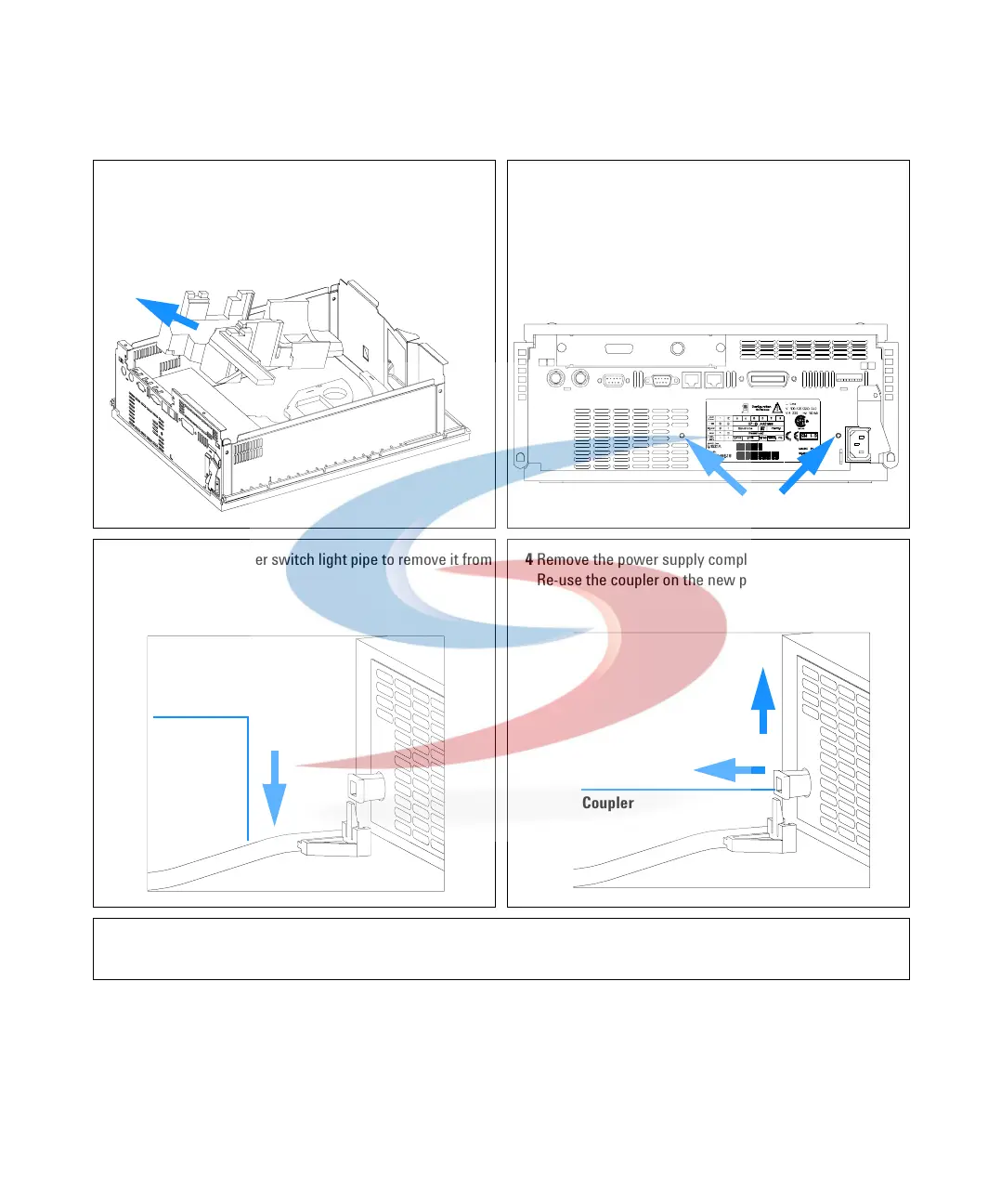

1 Carefully remove the bottom foam piece by sliding it out
towards the rear.
2 Unscrew the power supply at the rear of the module.
3 Press down the power switch light pipe to remove it from
the coupler.
4 Remove the power supply completely.
Re-use the coupler on the new power supply.
The repair of the power supply assembly is comprised of exchanging the complete assembly. No serviceable
parts are inside.
