Lesson 2 – TIA Setup
483

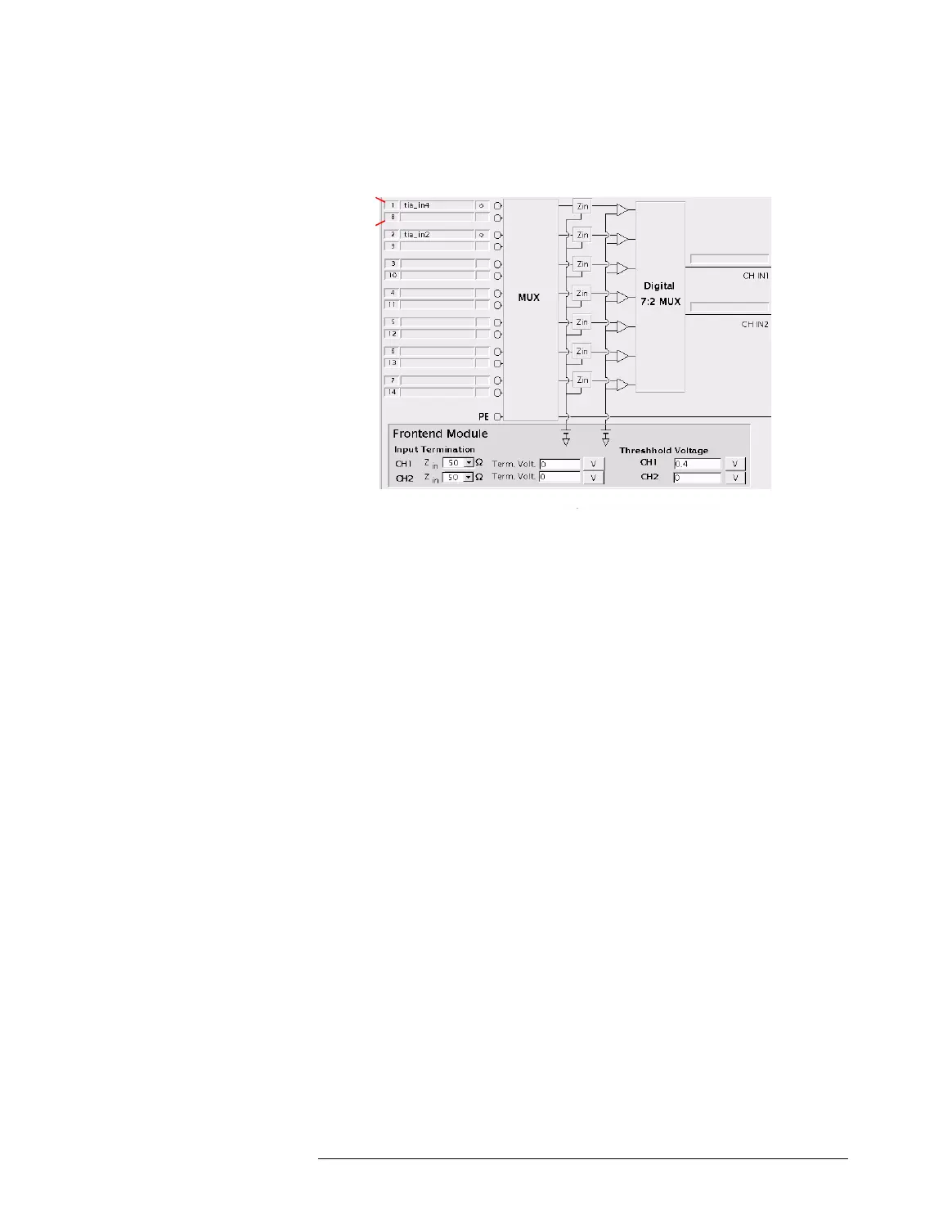

Front-End Setup Area
The settings you make only apply to the input channels of the TIA
core displayed in the B
OARDS field. For the other core that is
connected to the front-end module, you can make other settings,
after you have selected this core in the B
OARDS field.
Input Termination
The termination for each input channel can be defined
independently. Two termination options are available:
• Zin = 10kOhm, terminated to ground
• Zin = 50Ohm with a programmable termination voltage in the
range -2.0V to 6.0V (resolution 1mV)
Input Pin
Output Pin
(for loop-back)
Pins routed to
the TIA core
External
Triggering
Front-End Setup Parameters
