80 Chapter2

Programming Fundamentals

Using the Instrument Status Registers

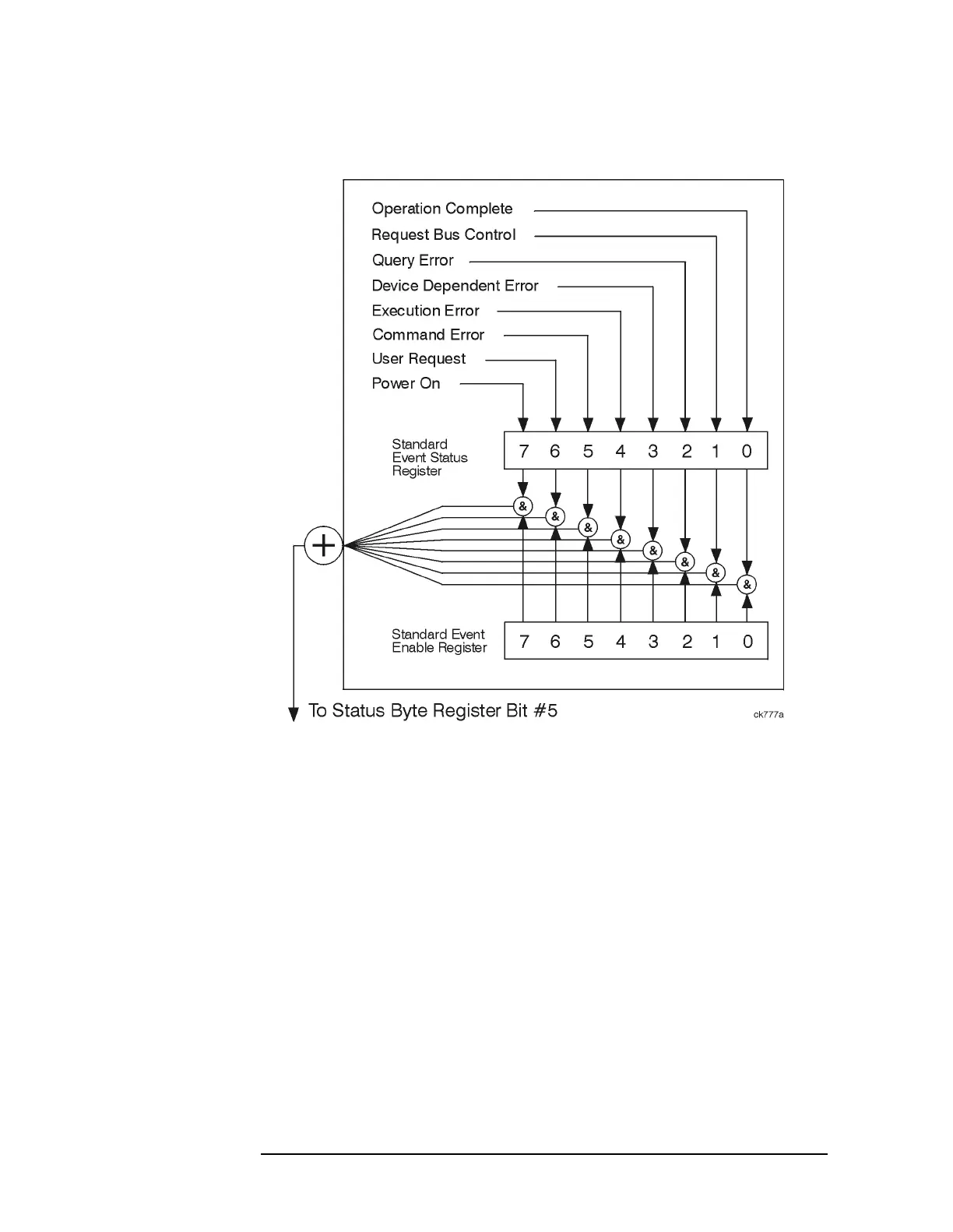

Standard Event Status Register

The standard event status register contains the following bits:
