260 BD FACSAria User’s Guide

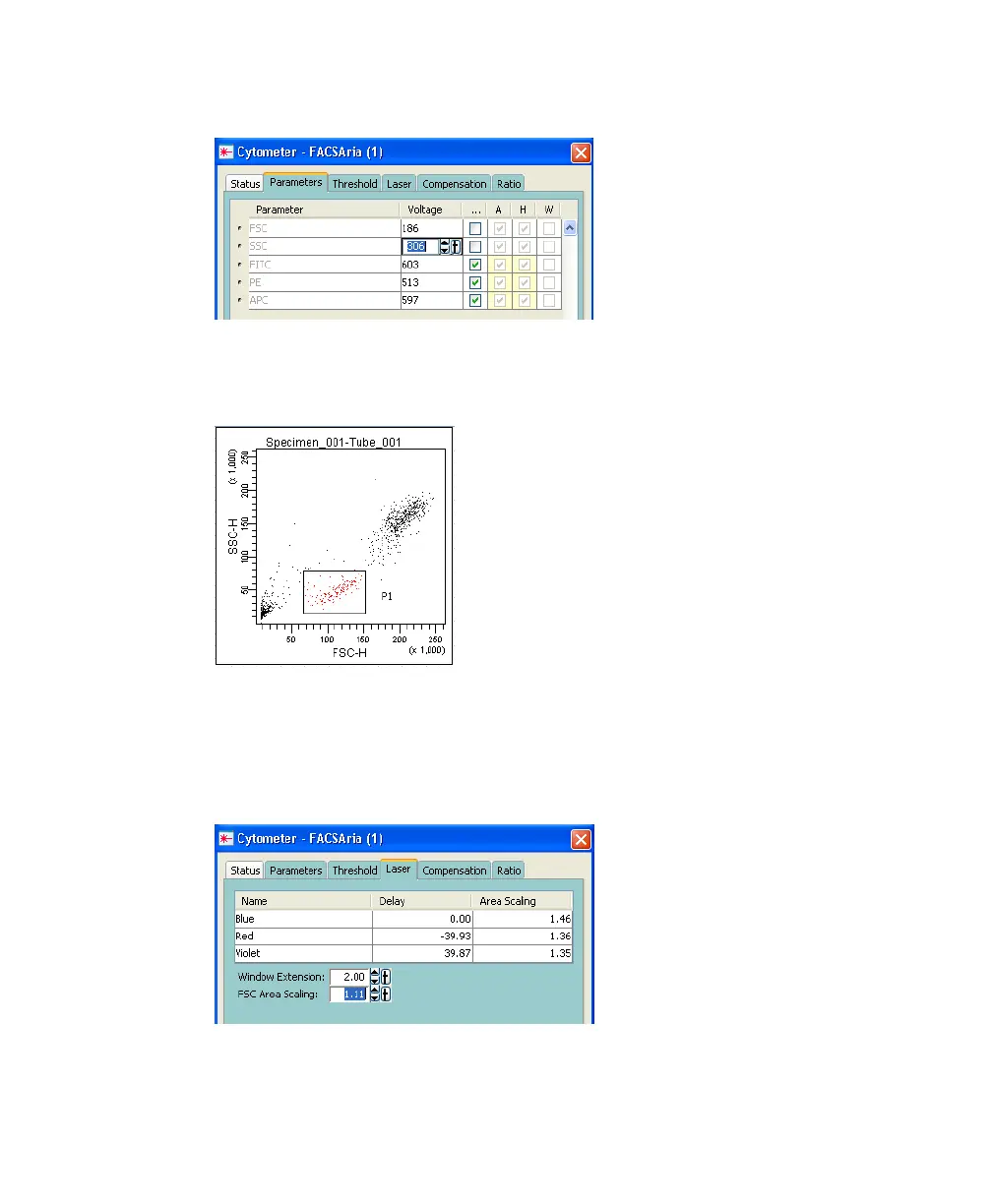

Figure B-2 Adjusting FSC and SSC Voltages
7 Adjust the P1 gate around the population of interest. See Figure B-3.
Figure B-3 FSC and SSC Plot
8 Adjust the FSC area scaling.
NOTE Click the Laser tab in the Cytometer window. See Figure B-4.
Figure B-4 Adjusting FSC Area Scaling
