Benelli TRK 502 Service Station Manual

4 - 6

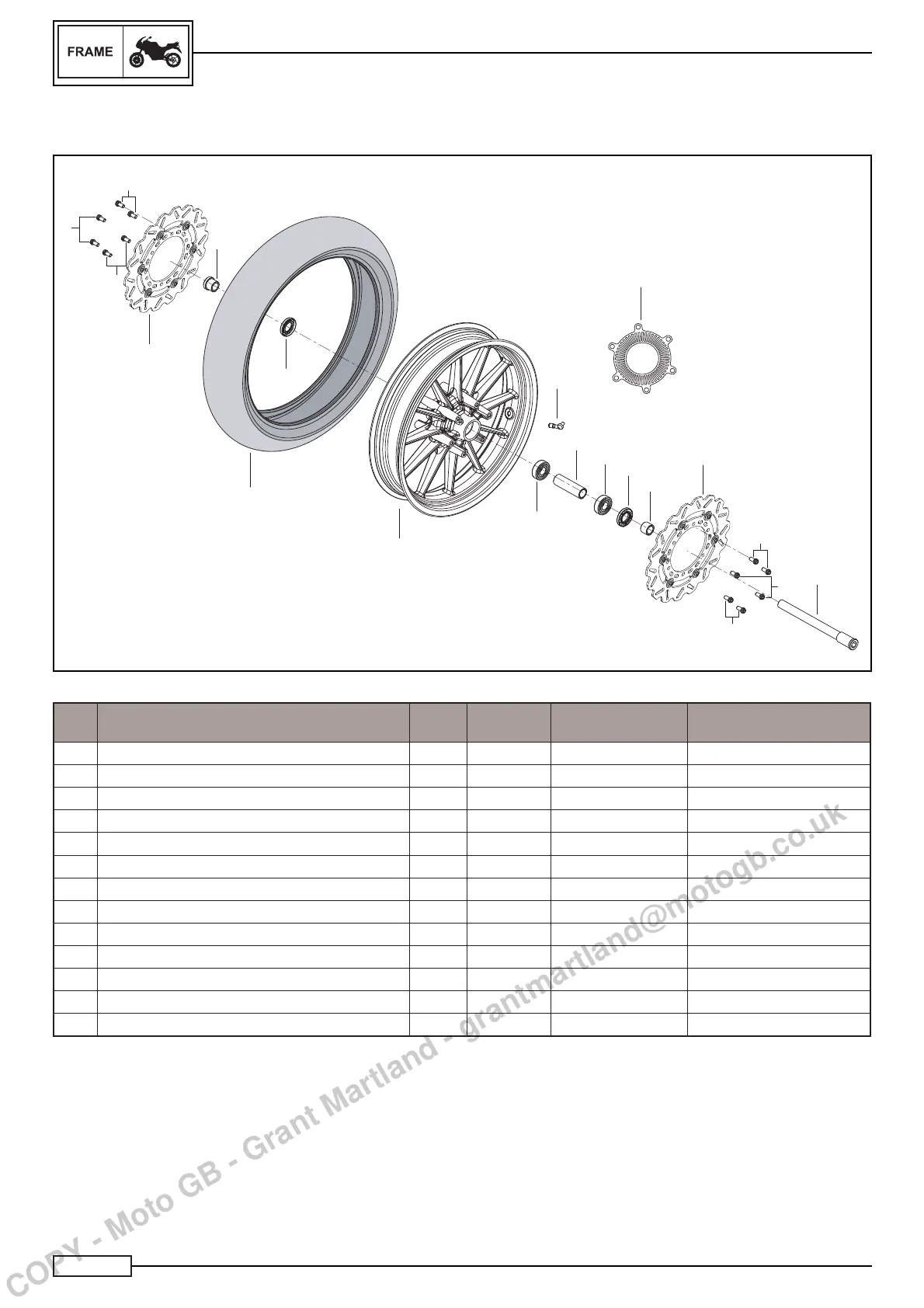

FRONT WHEEL AND BRAKE DISCS
REMOVAL/INSTALLATION OF BRAKE DISCS
7
8
9
10
11
10
5
3
4
4
1
1
1
2
12
12
12
2
6
13
Pos. Description Sq. SYMBOLS
CONTENTS
DESCRIPTION
REMARKS
1 SCREW
2 FRONT BRAKE DISC
3 LEFT SHIM
4 BEARING
5 FRONT WHEEL RIM (GREY)
6 FRONT WHEEL AXLE
7 VALVE
8 SHIM
9 INTERNAL SHIM
10 OIL SEAL
11 FRONT WHEEL ABS SENSOR
12 SCREW
13 FRONT TIRE
COPY - Moto GB - Grant Martland - grantmartland@motogb.co.uk

Benelli TRK 502 Specifications

General

Displacement	500 cc
Transmission	6-speed
Fuel Tank Capacity	20 liters
Seat Height	800 mm
Wet Weight	235 kg
Bore x Stroke	69 mm x 66.8 mm
Compression Ratio	11.5:1
Clutch	Wet multi-plate
Frame	Steel trellis
Wheelbase	1505 mm
Ground Clearance	190 mm
Max Power	47.6 hp (35 kW) @ 8500 rpm
Max Torque	46 Nm @ 6000 rpm
Front Suspension	50 mm upside-down fork
Front Brake	Double floating discs, 320mm, 4-piston calipers
Rear Brake	Single 260 mm disc
Fuel System	Electronic Fuel Injection (EFI)
ABS	Dual-channel ABS
Front Tire	120/70 R17
Rear Tire	160/60 R17
Engine Type	Liquid-cooled, four-stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
