Benelli TRK 502 Service Station Manual

5 - 77
A

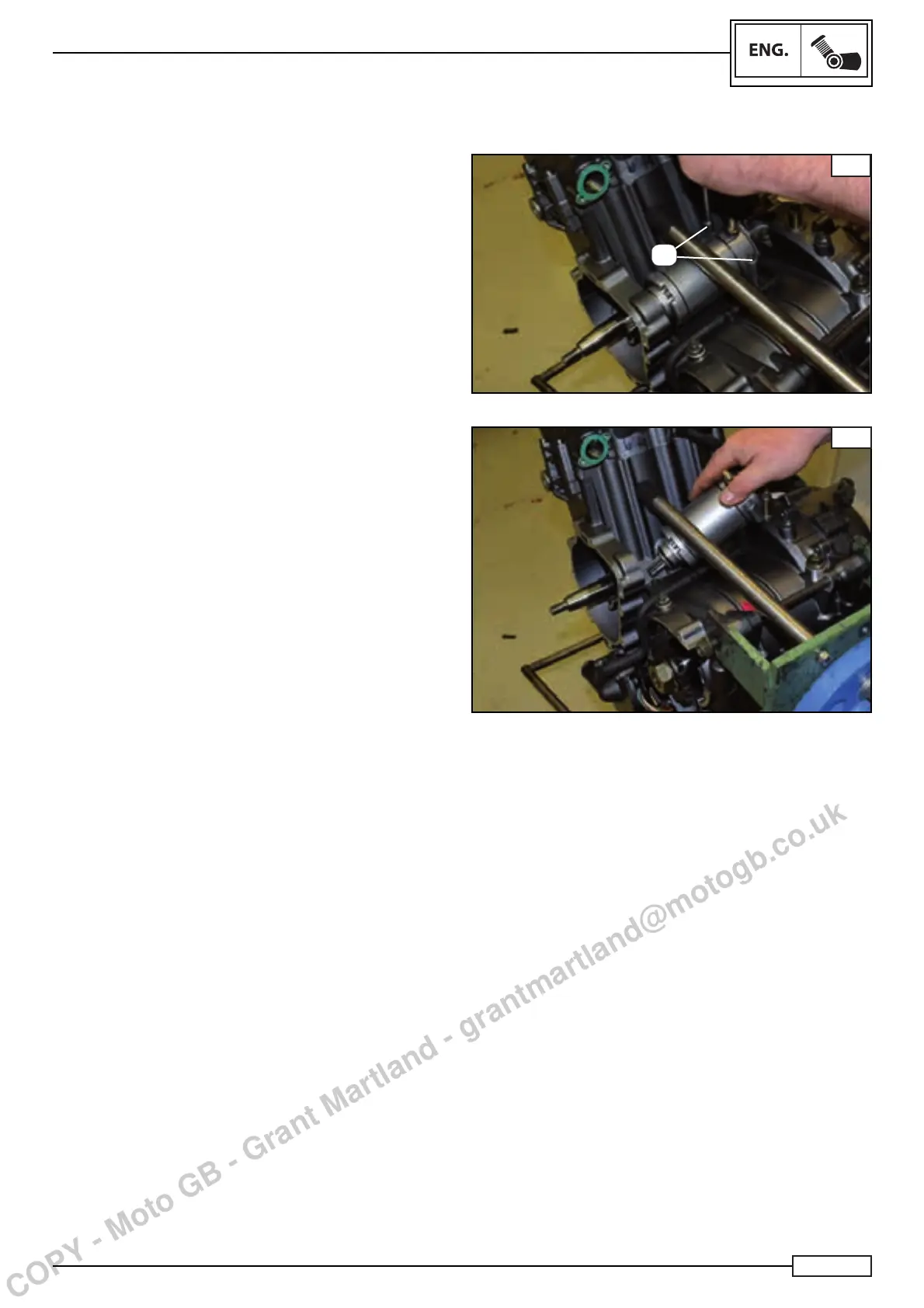

Remove:
1. the screws (3*) Fig. A
2. the starter motor (1*) from the clutch Fig. B.
Check:
• starter motor operation.
NOTE:_________________________________
If the starter motor turns with force, replace the part.
• The O-ring gasket.
If there is any damage/spotting/traces of wear, replace the O-
ring gasket.
NOTE:_________________________________
Lubricate the O-ring and take care not to damage it.
STARTER REMOVAL
STARTING
3*
B
