Benelli TRK 502 Service Station Manual

3 - 39

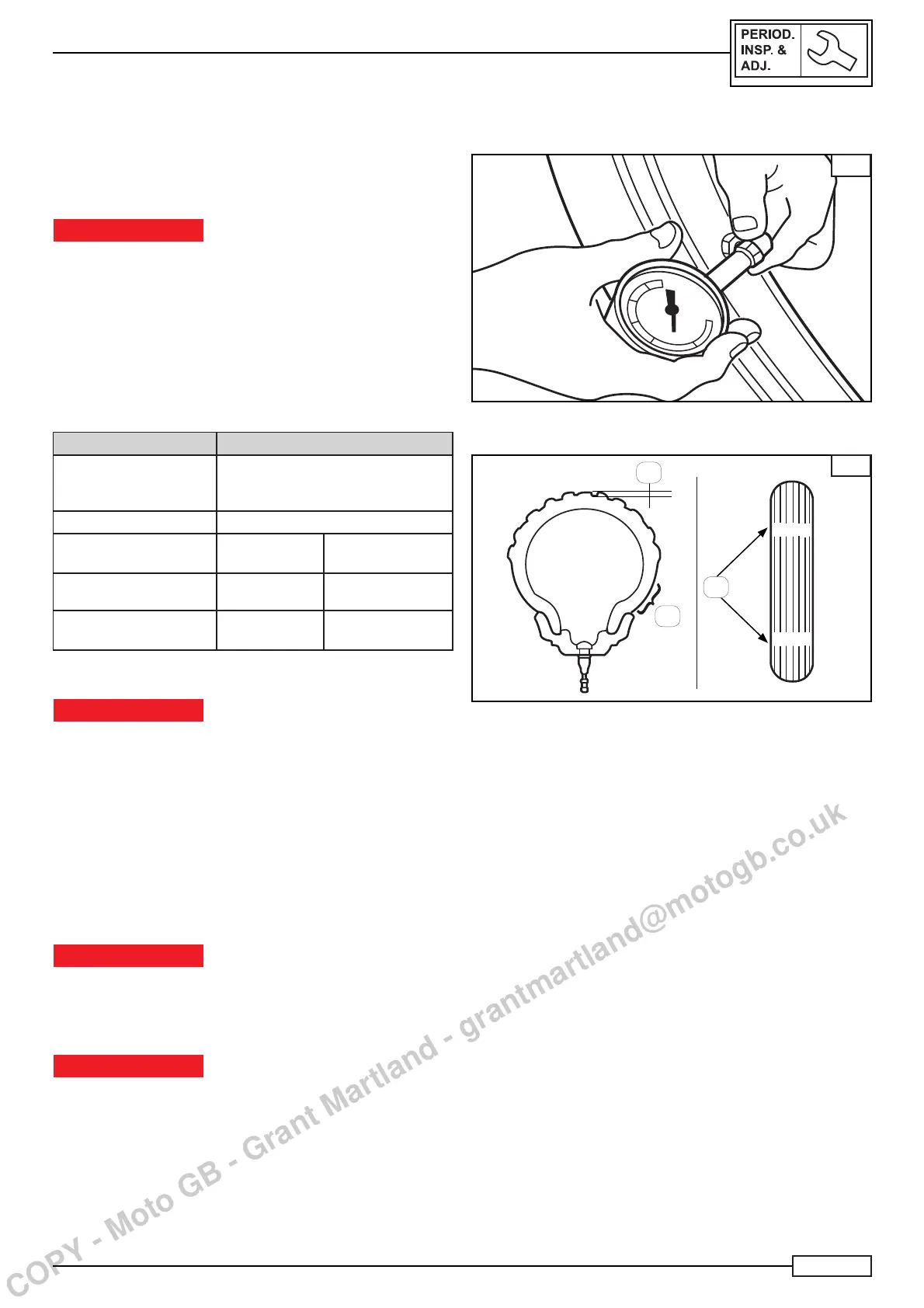

FRAME/CHECK OF FRONT/REAR TYRES
The following procedure is applied to both tyres.
Check:
• The tyre pressure. If outside specifi cations, adjust Fig. A.
WARNING
The tyre pressure must be checked and adjusted only when
the wheel temperature corresponds to the ambient tempera-
ture.
The tyre pressure and the suspension must be adjusted ac-
cording to the total weight, including baggage, driver, pas-
senger and accessories, and considering the expected driv-
ing speed.
The use of the overloaded vehicle may cause damages to
tyres, with the risk of an accident or injuries for people.
NEVER OVERLOAD THE VEHICLE IN ANY CASE.
Position Wear limit (A)
Net weight
(with oil and full fuel
tank)
See general specifi cations
Max. load* See general specifi cations
COLD TYRE PRES-
SURE
FRONT REAR
Up to 90 kg load*
2.20 bar 2.50 bar
90 kg
~ max. load*
2.20 bar 2.50 bar
* Including baggage, driver, passenger, and accessories.
WARNING
It is dangerous to drive with the worn tread.
If the tread reaches the wear limit, replace the tyre immedi-
ately.
Check:
• The tyre surface Fig. B
If there is any damage or wear, replace.
A. Depth of tread pattern
B. Side wall
C. Wearing warning device
WARNING
If tyres are new, the grip on the road is relatively weak until
they are slightly used. Therefore, it is advisable to drive at
normal speed for the fi rst 100 km (62 mi) before driving at
higher speeds.
WARNING
Most countries have their own regulations that prescribe a
minimum depth of the tread. Always remain within the limits
set forth.
Check and balance the wheel when replacing the tyre.
0
1
2
3
A
B
A
B
C
TYRE CHECK
COPY - Moto GB - Grant Martland - grantmartland@motogb.co.uk

Benelli TRK 502 Specifications

General

Displacement	500 cc
Transmission	6-speed
Fuel Tank Capacity	20 liters
Seat Height	800 mm
Wet Weight	235 kg
Bore x Stroke	69 mm x 66.8 mm
Compression Ratio	11.5:1
Clutch	Wet multi-plate
Frame	Steel trellis
Wheelbase	1505 mm
Ground Clearance	190 mm
Max Power	47.6 hp (35 kW) @ 8500 rpm
Max Torque	46 Nm @ 6000 rpm
Front Suspension	50 mm upside-down fork
Front Brake	Double floating discs, 320mm, 4-piston calipers
Rear Brake	Single 260 mm disc
Fuel System	Electronic Fuel Injection (EFI)
ABS	Dual-channel ABS
Front Tire	120/70 R17
Rear Tire	160/60 R17
Engine Type	Liquid-cooled, four-stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
