3 - 51
ELECTRICAL SYSTEM

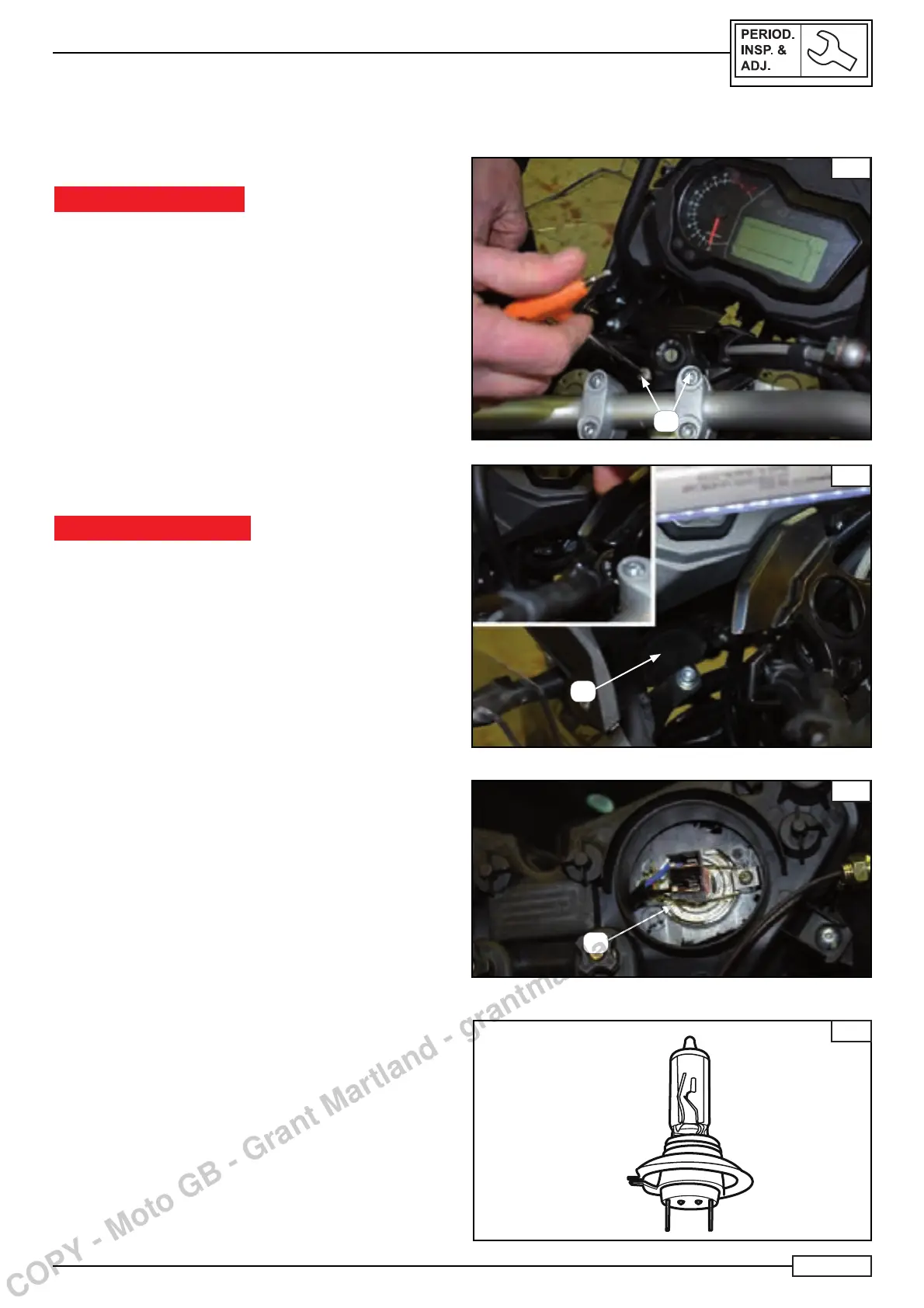

REPLACEMENT OF THE FRONT LIGHTS
The following procedure applies only to the front lights.
IMPORTANT NOTICE
Seeing that the projector lamp reaches very high tempera-
tures, it is recommended to not touch it until it has cooled
down.
Remove:
• The two xing screws “A” of the protection of the ignition
block Fig. A
Lift the protection and gain access to the projector lamps’
covers and remove them “B” Fig. B
Disconnect the lamp from the connectors “C” Fig. C
Install:
Insert the new lamp
Connect:
Connect the new lamp to the connectors “C” Fig. C
Replace the cover
Position the protection of the ignition block and replace the
two locking screws.
IMPORTANT NOTICE
Avoid touching the glass part of the projector lamp; keep it
clean and remove any traces of oil. If this is not done, the
transparency of the glass will not be as it was before by the
duration of the lamp will be shortened and the projected light
beam. The lamp is dirty, clean it very carefully,
using a cloth dampened with alcohol or diluent used for
enamel paint Fig. D
A
A
B
B
C
C
D
COPY - Moto GB - Grant Martland - grantmartland@motogb.co.uk
