Benelli TRK 502 Service Station Manual

4 - 95
CYCLING

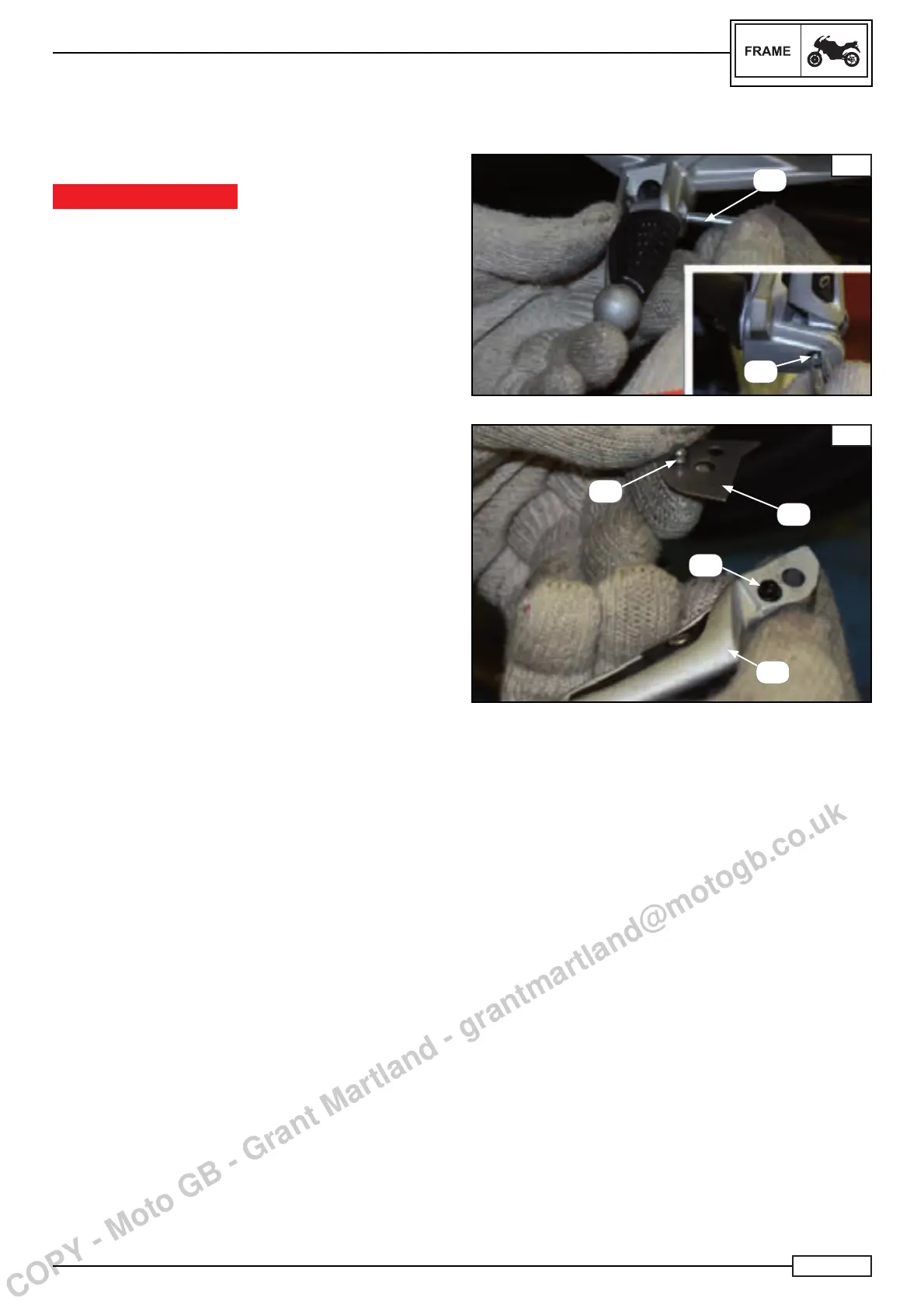

REMOVAL OF THE RIGHT/LEFT REAR FOOTREST
Park the bike on a level surface.
IMPORTANT NOTICE
Prop the bike on suitable supports so that it cannot fall.
Remove:
• the O-ring (7*) Fig. A
• the pin (13*) Fig. A
• the footrest (14*) Fig. B
• the plate (18*) Fig. B
• the ball (17*) Fig. B
• the spring (16*) Fig. B
NOTE:_________________________________
Carry out the following operation for the left rear footrest
(23*).
NOTE:_________________________________
The numbers marked (*) are a part of the spare parts table,
chapter “Cycling” paragraph “Stand/footrests”.
A
7*
13*
B
16*
17*
18*
14*
COPY - Moto GB - Grant Martland - grantmartland@motogb.co.uk

Benelli TRK 502 Specifications

General

Displacement	500 cc
Transmission	6-speed
Fuel Tank Capacity	20 liters
Seat Height	800 mm
Wet Weight	235 kg
Bore x Stroke	69 mm x 66.8 mm
Compression Ratio	11.5:1
Clutch	Wet multi-plate
Frame	Steel trellis
Wheelbase	1505 mm
Ground Clearance	190 mm
Max Power	47.6 hp (35 kW) @ 8500 rpm
Max Torque	46 Nm @ 6000 rpm
Front Suspension	50 mm upside-down fork
Front Brake	Double floating discs, 320mm, 4-piston calipers
Rear Brake	Single 260 mm disc
Fuel System	Electronic Fuel Injection (EFI)
ABS	Dual-channel ABS
Front Tire	120/70 R17
Rear Tire	160/60 R17
Engine Type	Liquid-cooled, four-stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
