Benelli TRK 502 Service Station Manual

5 - 79

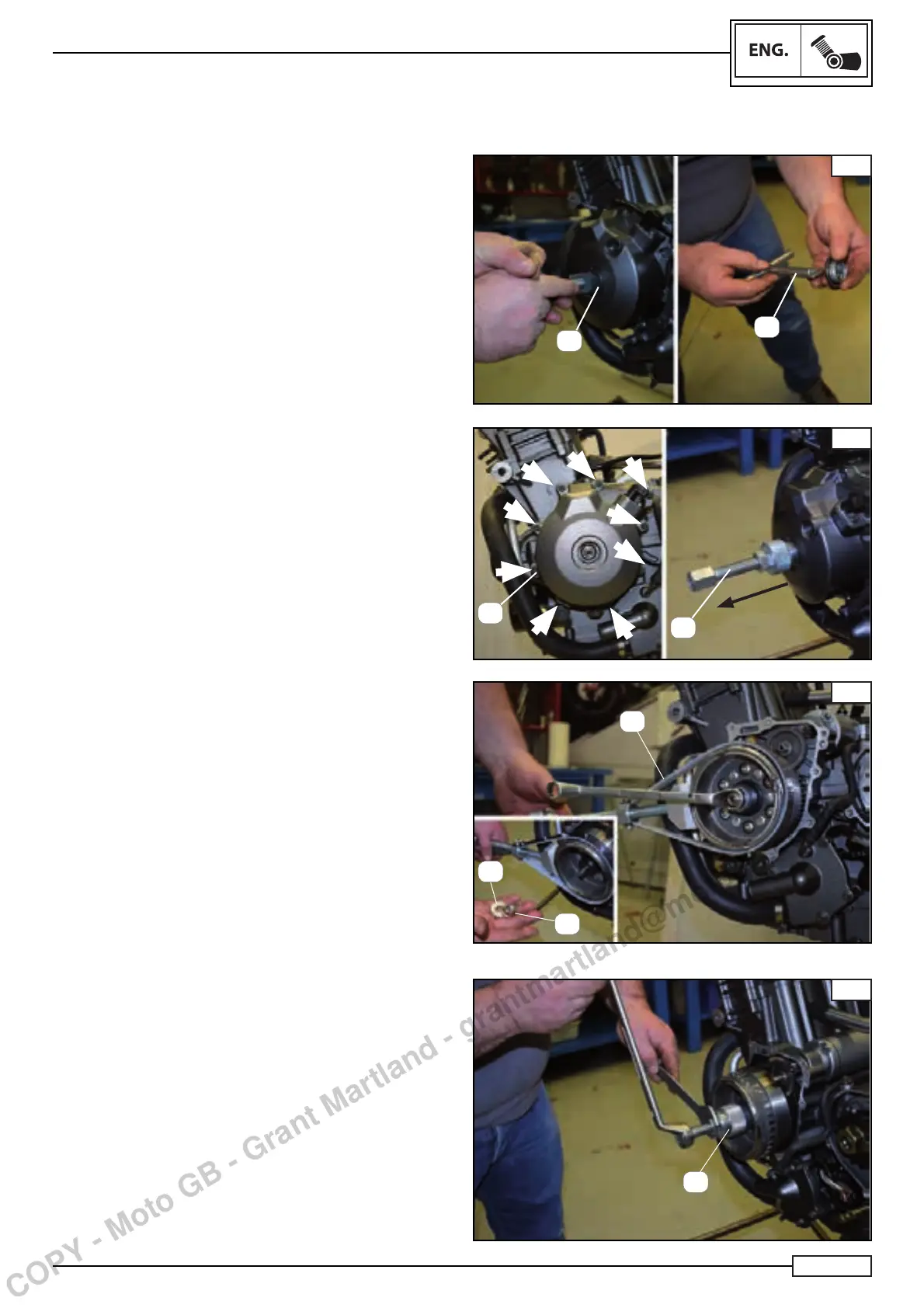

FLYWHEEL REMOVAL
STARTING
Remove:
• the cap (1).
Use the tool (2*) for this operation Fig. A
(*) Tool to remove the magnetic cap from the alternator
cover
Code: 0320097043000.
Remove:
• the screws (3) Fig. B
• take out the magnet fl ywheel cover Fig. B.
Use the tool (4*) for this operation Fig. B
(*) Flywheel cover extractor
Code: 0320097042000
Remove:
• the nut (5) Fig. C.
• the washer (6) Fig. C.
Use the tool (7) for this operation Fig. C
(*) Tool to Tighten/Loosen the fl ywheel
Code:0320097044000
Remove:
• The fl ywheel rotor magnet (8).
Use the tool* (8) for this operation Fig. D
(*) Flywheel cover extractor
Code:0320097045000
A
1
2
B
C
D
3
4
5
6
7
8
