Benelli TRK 502 Service Station Manual

ELE. - 26
SENSORS

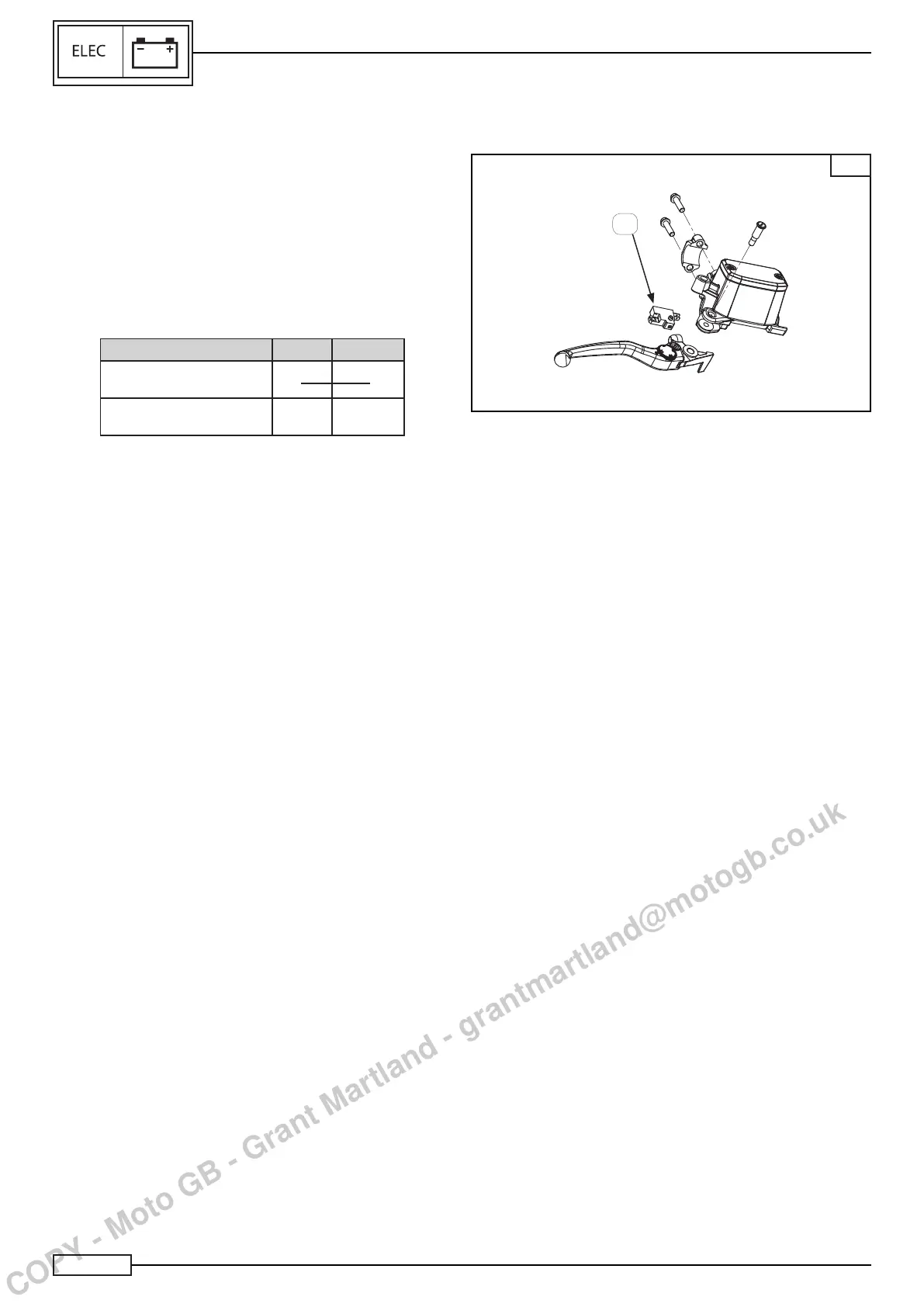

FRONT BRAKE MICROSWITCH
It is a switch in contact with the brake lever, situated on the front
brake pump, which serves to switch on the stop lights (A), Fig.
N.
Check:
• The continuity
bypositioningthemultitesteronthesymbol→|-(functiondiode/
continuity test) to check operation, as shown in the table.
SENSOR PIN 1 PIN 2
Brake lever Pulled
• •
Brake lever Released
• •
NOTE:________________________________
When the above conditions are fullled, the front brake sen-
sor is working properly, otherwise replace the part.
N
A
