Benelli TRK 502 Service Station Manual

4 - 33
ABS ANTI-LOCK BRAKING SYSTEM

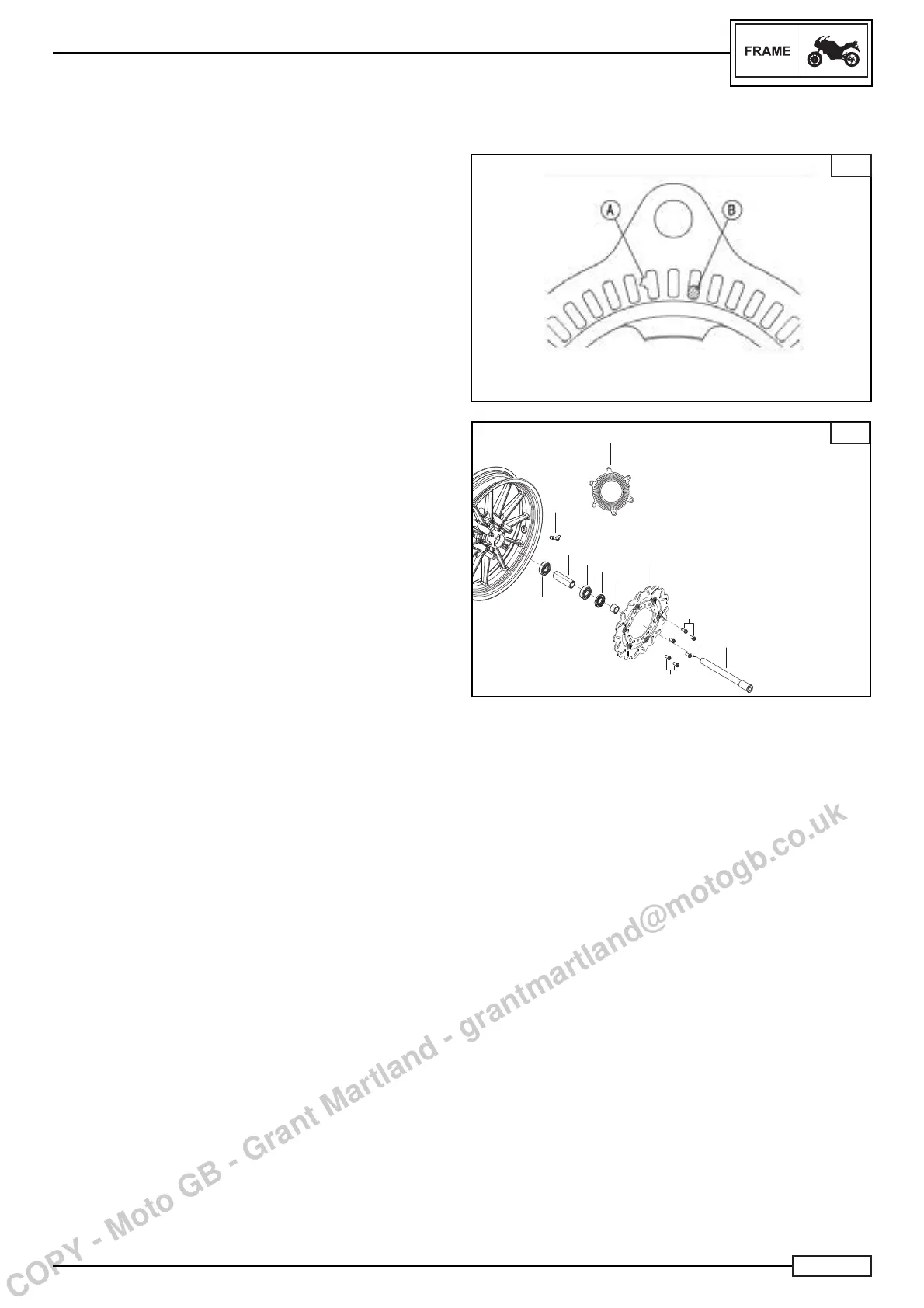

CHECK OF THE PHONIC WHEEL AND ABS OF THE FRONT AND REAR WHEEL
Check:
Carry out a visual check of the phonic wheel of the wheel.
Substitute the phonic wheel if it is deformed or damaged, such
as damaged teeth. Fig. E
Remove the deposits if there are deposits of metal or magnetic
material (B). If necessary, substitute the phonic wheel as follows:
SUBSTITUTION OF THE PHONIC WHEEL, ABS OF THE
FRONT AND REAR WHEEL
Remove:
• Front wheel - refer to the chapter “removal of the front
wheel”.
• screws (12*)
• the phonic wheel (11*) Fig. F
• Rear wheel - refer to the chapter “removal of the rear
wheel”.
NOTE:_________________________________
The numbers marked (*) are a part of the spare parts table,
chapter “Front wheel and brake discs”, paragraph Removal/
installation of the brake discs”.
E
7
8
9
10
11
4
4
12
12
12
2
6
F
COPY - Moto GB - Grant Martland - grantmartland@motogb.co.uk

Benelli TRK 502 Specifications

General

Displacement	500 cc
Transmission	6-speed
Fuel Tank Capacity	20 liters
Seat Height	800 mm
Wet Weight	235 kg
Bore x Stroke	69 mm x 66.8 mm
Compression Ratio	11.5:1
Clutch	Wet multi-plate
Frame	Steel trellis
Wheelbase	1505 mm
Ground Clearance	190 mm
Max Power	47.6 hp (35 kW) @ 8500 rpm
Max Torque	46 Nm @ 6000 rpm
Front Suspension	50 mm upside-down fork
Front Brake	Double floating discs, 320mm, 4-piston calipers
Rear Brake	Single 260 mm disc
Fuel System	Electronic Fuel Injection (EFI)
ABS	Dual-channel ABS
Front Tire	120/70 R17
Rear Tire	160/60 R17
Engine Type	Liquid-cooled, four-stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
