FRICTION DISC CHECK
CLUTCH
The following procedure applies to all friction discs.
Check:
• Friction disc
If there is any damage/wear, replace the friction discs.
Measure:

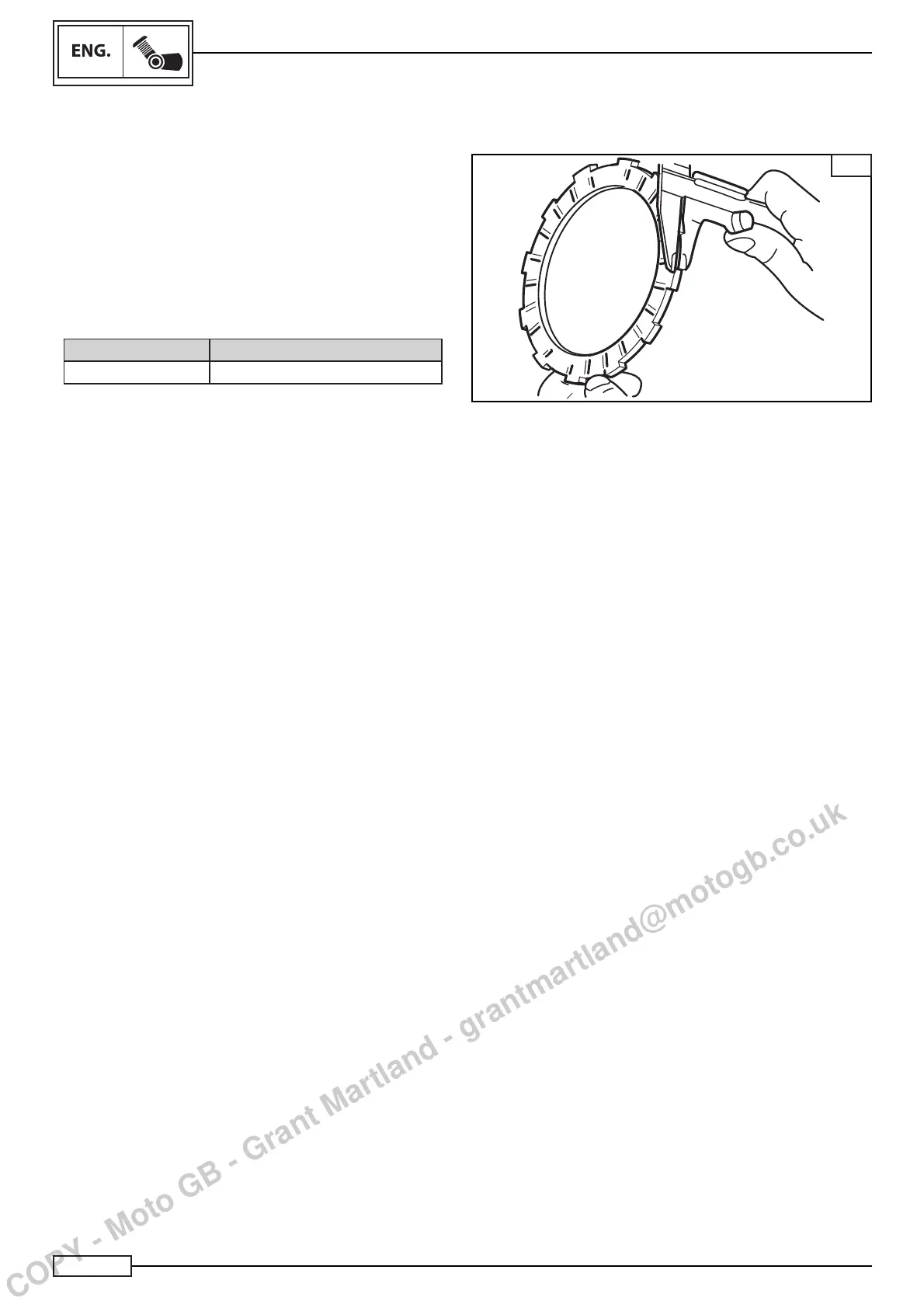

• The thickness of the friction disc Fig. A.
If not within specifi cations, replace the friction discs together.
Disc Size
Friction disc Thickness 2.7(±0.05) mm
NOTE:_________________________________
Measure the friction disc in four points.
